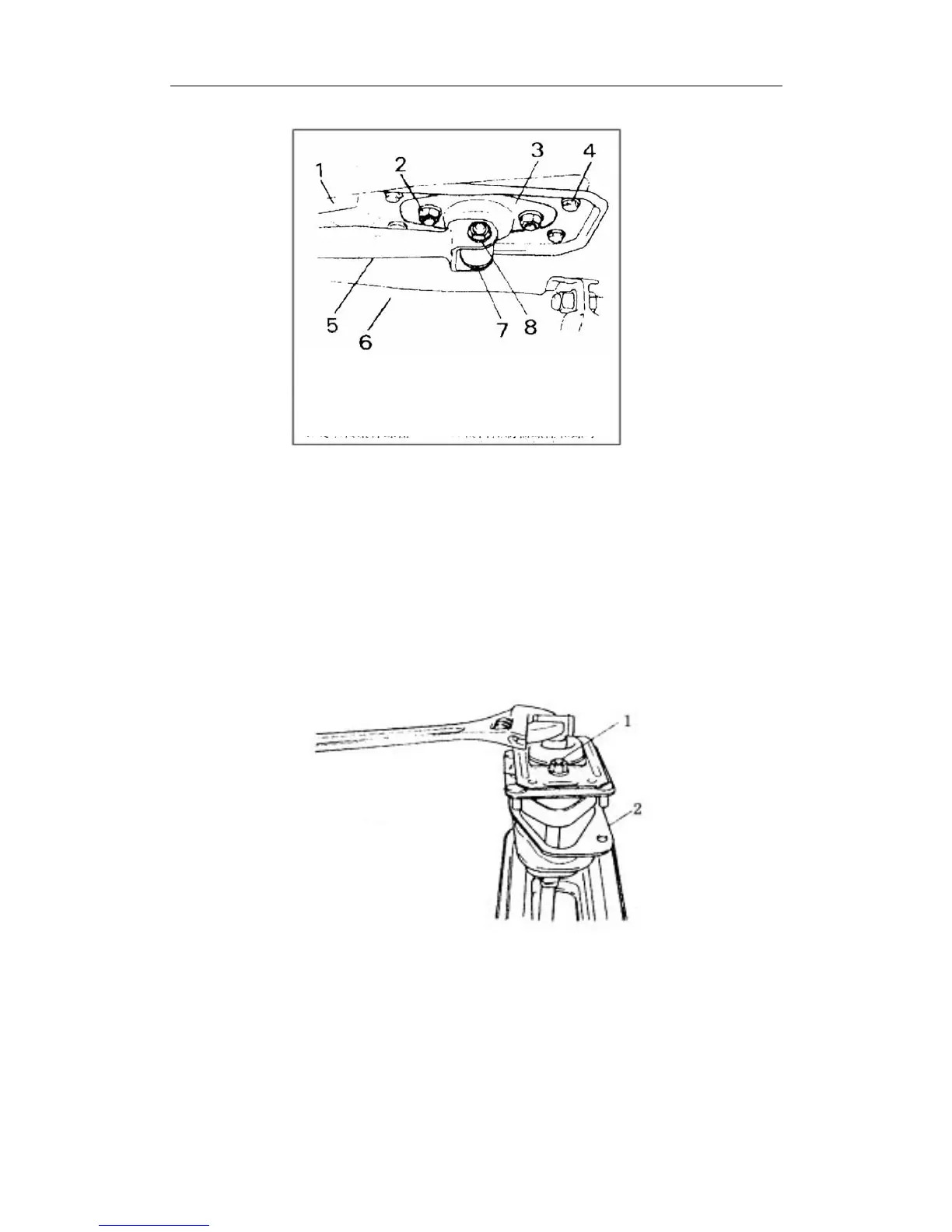

• Chery QQ Service Manual Transmission System
1.Strengthen pole 2. Nut 3. Control shift lever retainer 4.
Control shift lever retainer bolt 6.NO.1 exhaust pipe
5. Shift and select lever shaft 7. Shift lever 8. Shift an
d
select lever shaft bolt and nut
Disassembly:
On the lift.
1． Remove the shift and select lever shaft bolt and nut, take apart the shift and select
lever shaft from the shift lever.
2． Remove the 4 pieces of control shift lever retainer bolt. Demount the strengthen
pole nut beside the transaxle, and move the strengthen pole aside.
In the cab.
1． Have shift lever shaft housing，disassembly 2 bolt from shift lever shaft housing.
2． Demount the 4 nuts on the shift lever assembly, push the shift lever
into the floor hole and pull out the shift lever assembly from the floor.
1 .Bolt
2 .Bracket
On the workbench;
1． Use the clamp to fix the holder of the shift lever, demount the bolt, remove
the shift lever.
2． Demount the 2 shift lever assembly nut, break down the shift lever .
