• Chery QQ Service Manual Transmission System
Installation
1． According to the reverse demounting order, install the shift lever , if necessary,
replace the used parts.
Notice:
After installation, please check if the shift lever works smoothly.
Shift lever vertical
free play
0-0.2mm(0-0.007in)
Thickness of the
optional adjust washer
0.8,1.0,1.2 and 1.4mm(0.03,0.04,0.05 and 0.06in)
2． Spread whorl glue, fix the
handle on the shift lever ,check the handle level

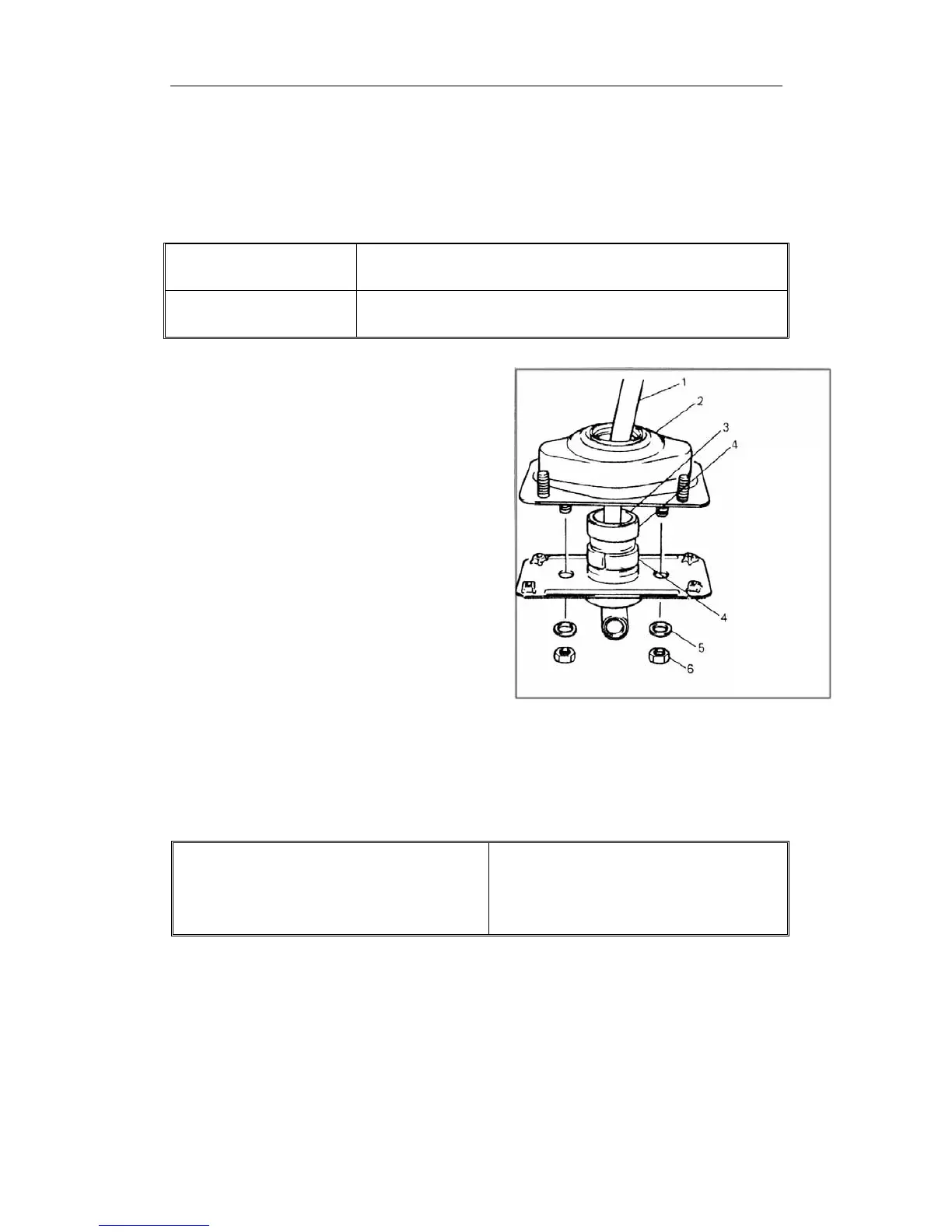

1.Shift
lever
2.Shift
lever
assembly
3.Adjust
washer
4. Shif
t
lever
5. Snap
ring
6. Shif
t
leve
r
3． Install shift lever assembly
and the related parts on the original
position. When fixing the position of
the shift lever, first install the 4
pieces of control shift lever retainer
bolt and 4 pieces of shift lever
assembly nut, adjust the position of,
screw the bolt and nut tightly.
Notice:
·Do not spread lubricant on the strengthen pole spacer beside the transaxle.
· Spread lubricant on the shift and select lever shaft boot.
· Check if the boot has been installed correctly.
The position of the shift lever ：Distance
from A
270mm
50
