• Chery QQ Service Manual Transmission System
13 Remove the reverse idler gear shaft and gasket, take away the reverse idler
gear shaft.

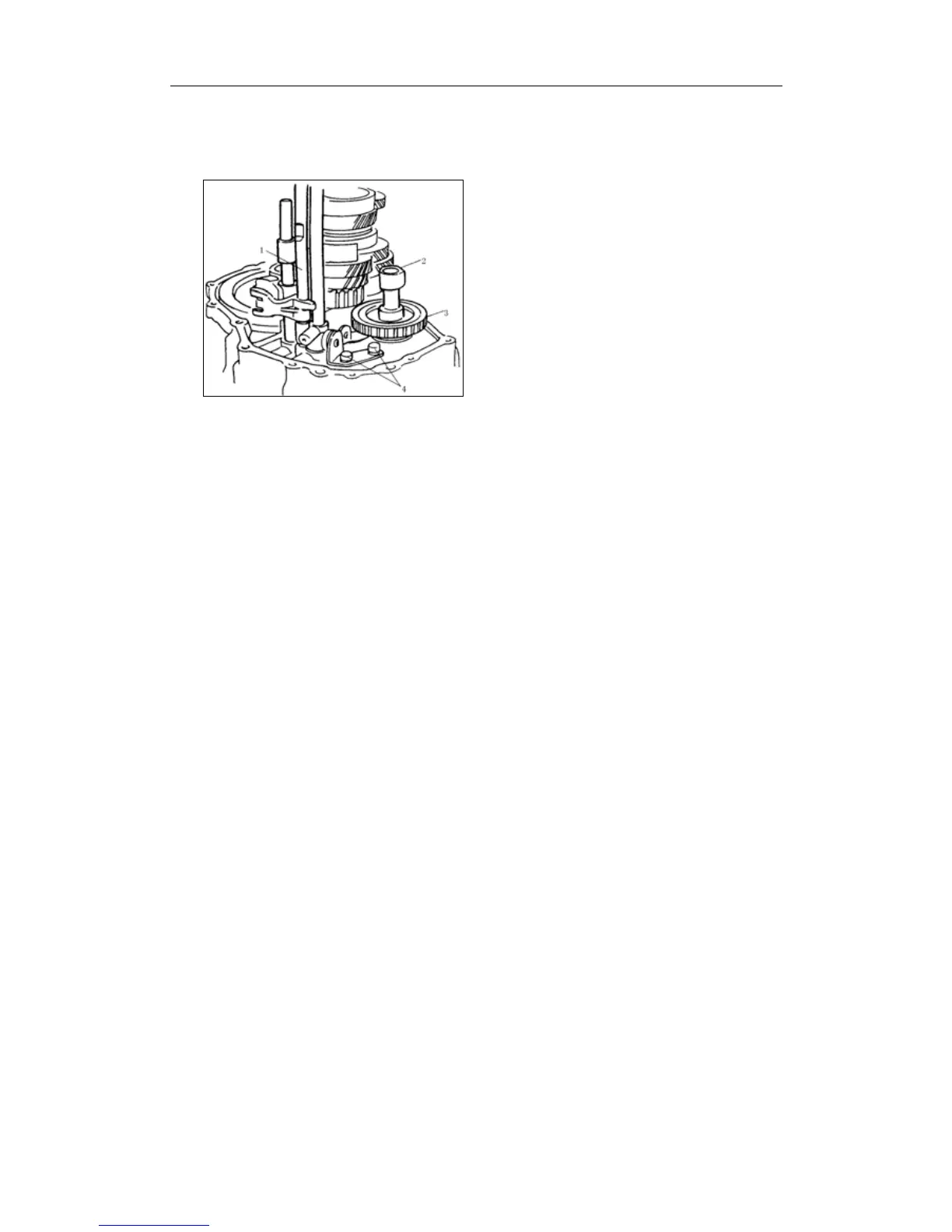

14 Remove the reserve,5th shift fork shaft assembly.
1-Reverse ,5th shift fork shaf
t
assembly
2- Reverse idler gear shaf
t
assembly
3- Reverse idler gear
4-Reverse Shift fork bolt
Fig.3-13
15 Use a rubber hammer to hit the end of the input shaft lightly and force it out
a little, take out the input shaft assembly, output shaft assembly,1st,2nd Shift fork
assembly and 3rd,4th shift fork assembly together.
16 Remove the output shaft bearing outer race from the transmission case.
17 Remove the differential oil seal.
