Chery QQ Service Manual Transmission System

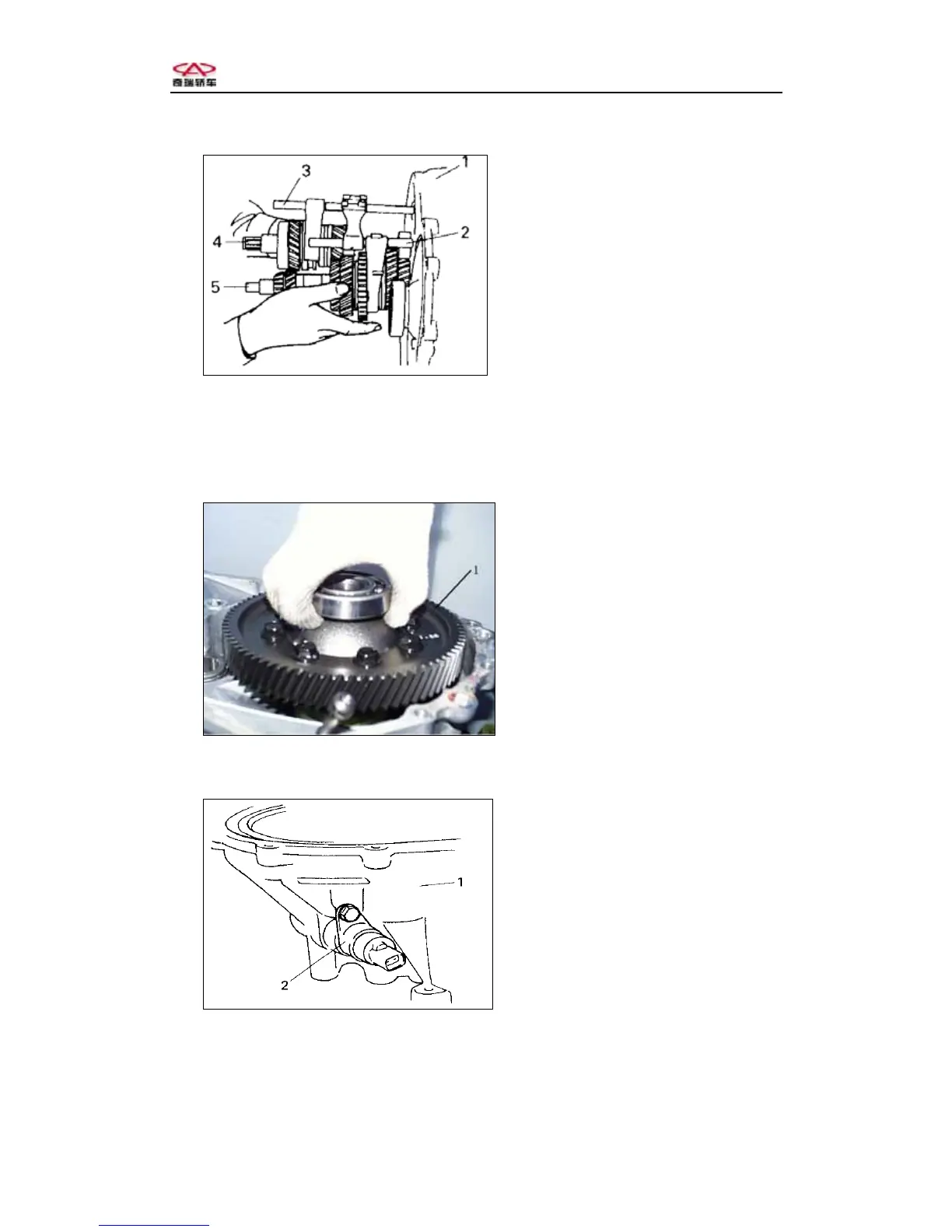

1- Clutch housing assembly
2- 1st 2nd shift fork shaft assembly
3- 3rd 4th shift fork shaft assembly
4- Output shaft assembly
5-Input shaft assembly
Fig.3-14
（3）Clutch case assembly
1. Remove the differential assembly from the clutch case.
1- Differential Assembly
Fig.3-15
2. Loosen the bolt, pull out the speedometer driven gear assembly.
1- Clutch case
2- Speedometer drive
n
gear assembly
Fig3-16
Caution: Do not hurt speedometer case.
3.Remove the input shaft oil seal .
-61-
4.Remove the output shaft bearing outer race.
