Notice: If the input shaft bearing still remains in the clutch case, use special tool to
pull out the bearing.

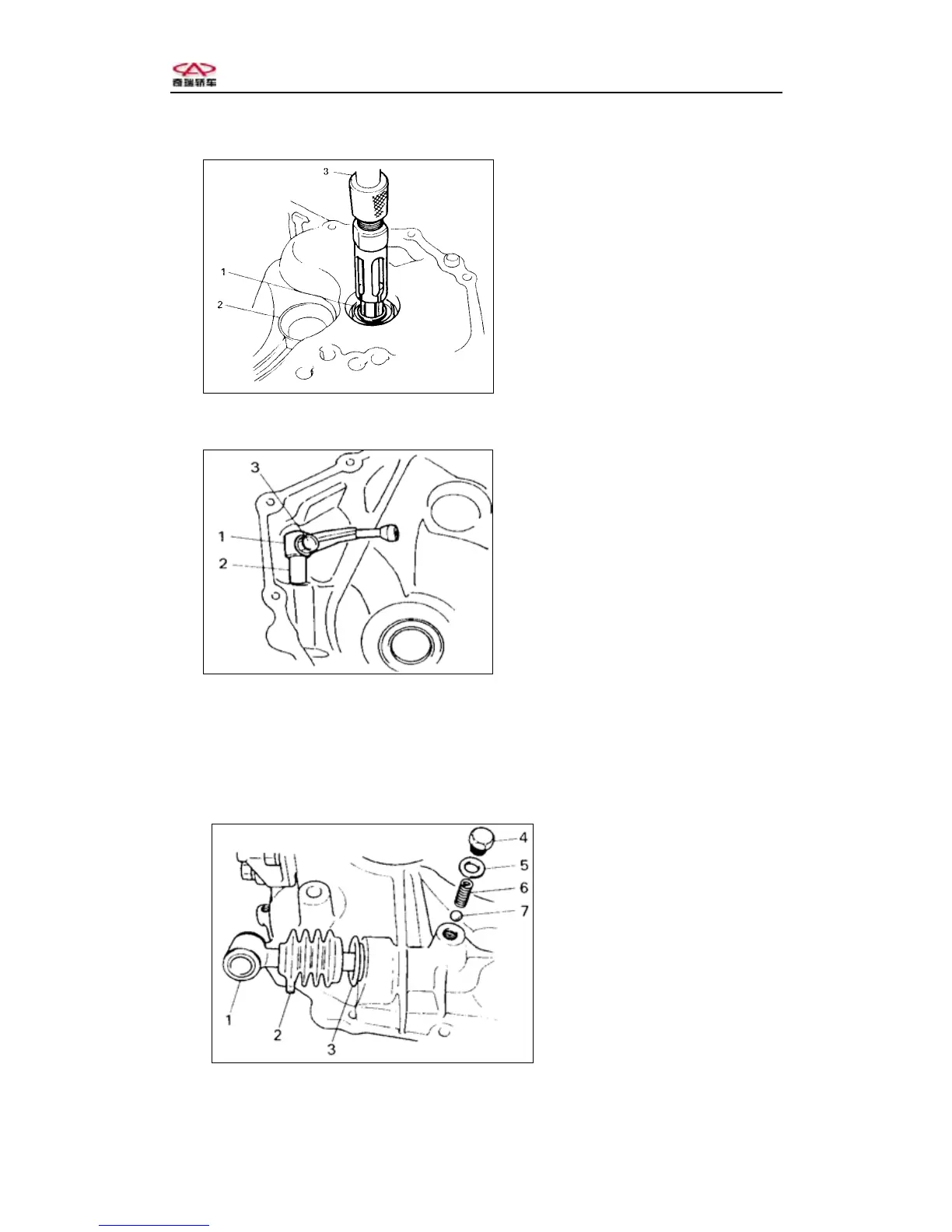

1- Input shaft oil seal
2- Output shaft bearing
outer
3- Special tool
Fig.3-17
5. Loosen the bolt, pull out the shift head.
1- Shift head
2- Shift lever
3-Bolt
Fig.3-18
6. Loosen the shift lever bolt and gasket, take out the spring and ball.
7. Remove the shift lever, boot and oil seal.
8. Remove the differential oil seal from the clutch case.
Notice: The used oil seal cannot be used repeatedly.
1- Shift lever
2- Boot
3- Oil seal
4- Blot
5- Gasket
6- Spring
7-Ball
Fig.3-19
