（4） Input shaft assembly
Disassemble:

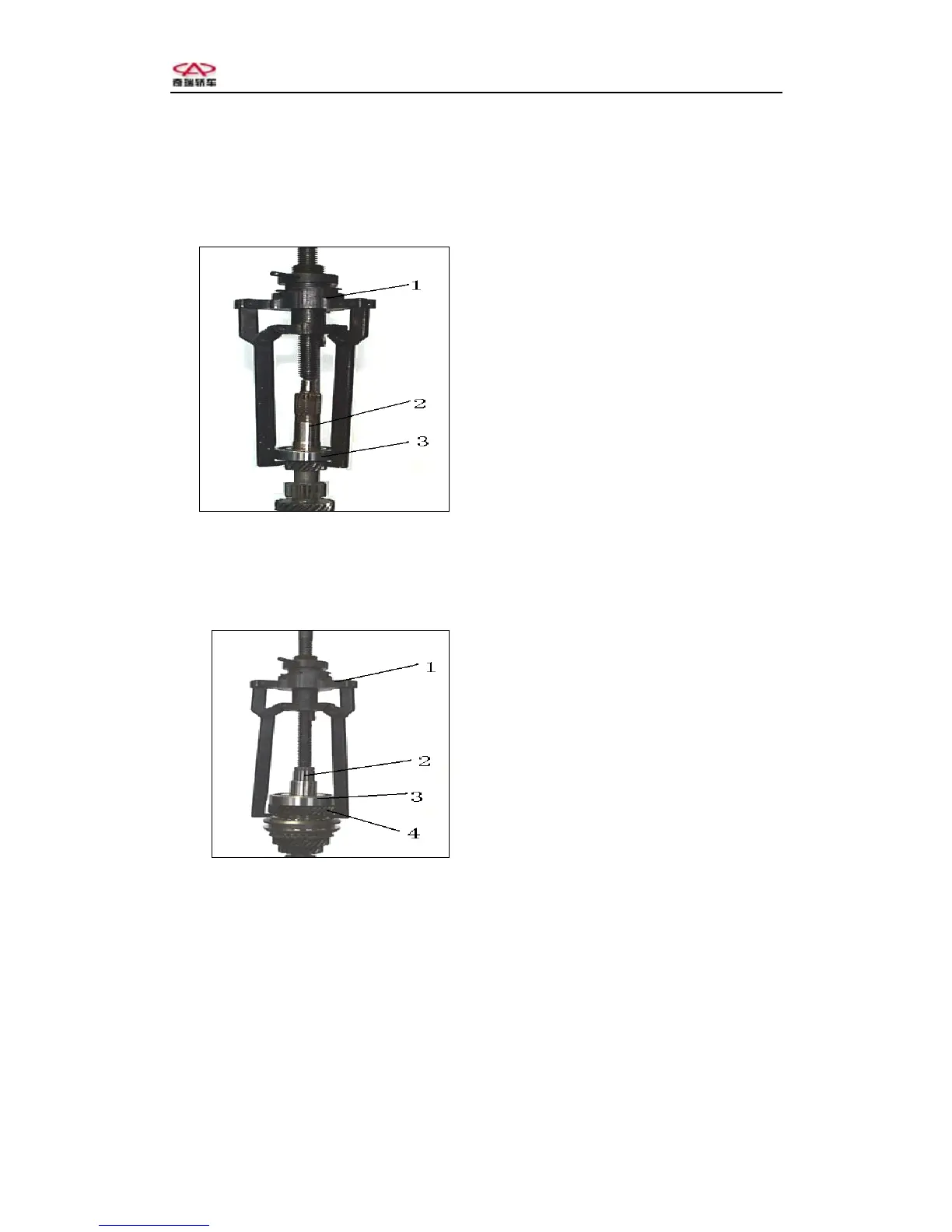

1. Use bearing puller to remove the input shaft right bearing.
1- Special tool
2- Input shaft
3-
Right bearing
Fig.3-20
2. Use special tools to clip the 4th gear, pull it out with the 5th gear spacer, left
bearing.
Caution: Do not clip the gear head, or the 4th gear may be hurt.
1- Special tool
2- Input shaft
3-
Left bearing
4-4th gear
Fig.3-21
3.Take out the 4th gear Needle roller bearing and Synchronizer ring.
4. Use special tool to remove the snap ring.
