Chery QQ Service Manual Transmission System

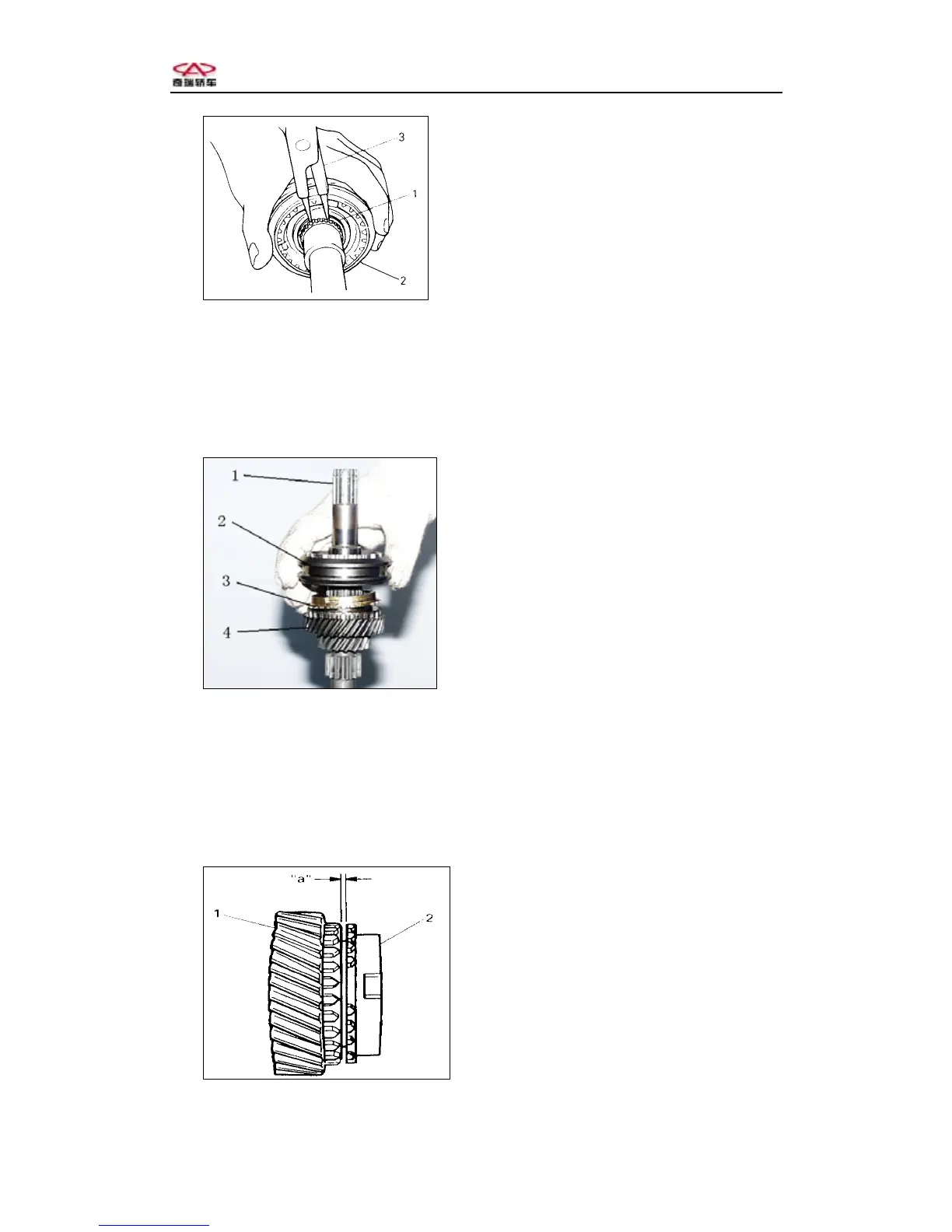

1- Snap ring
2- Synchronizer ring
3- Special tool
Fig.3-22
5.Remove the synchronizer assembly and 3rd gear.
6.Remove the 3rd gear needle roller bearing .
1- Input shaft
2- Synchronizer
assembly
3- Synchronizer
ring
4- 3rd gear
Fig.3-23
7. Disassemble the Synchronizer assembly.
Check and re-install:
1.Clean up all the parts, check if there is anything abnormal.
2.If Synchronizer components need repair， measure synchronizer ring
clearance “a” to gear, then decide whether change it.
1- Gear
2-Synchronizer ring
Fig.3-24
-64-
