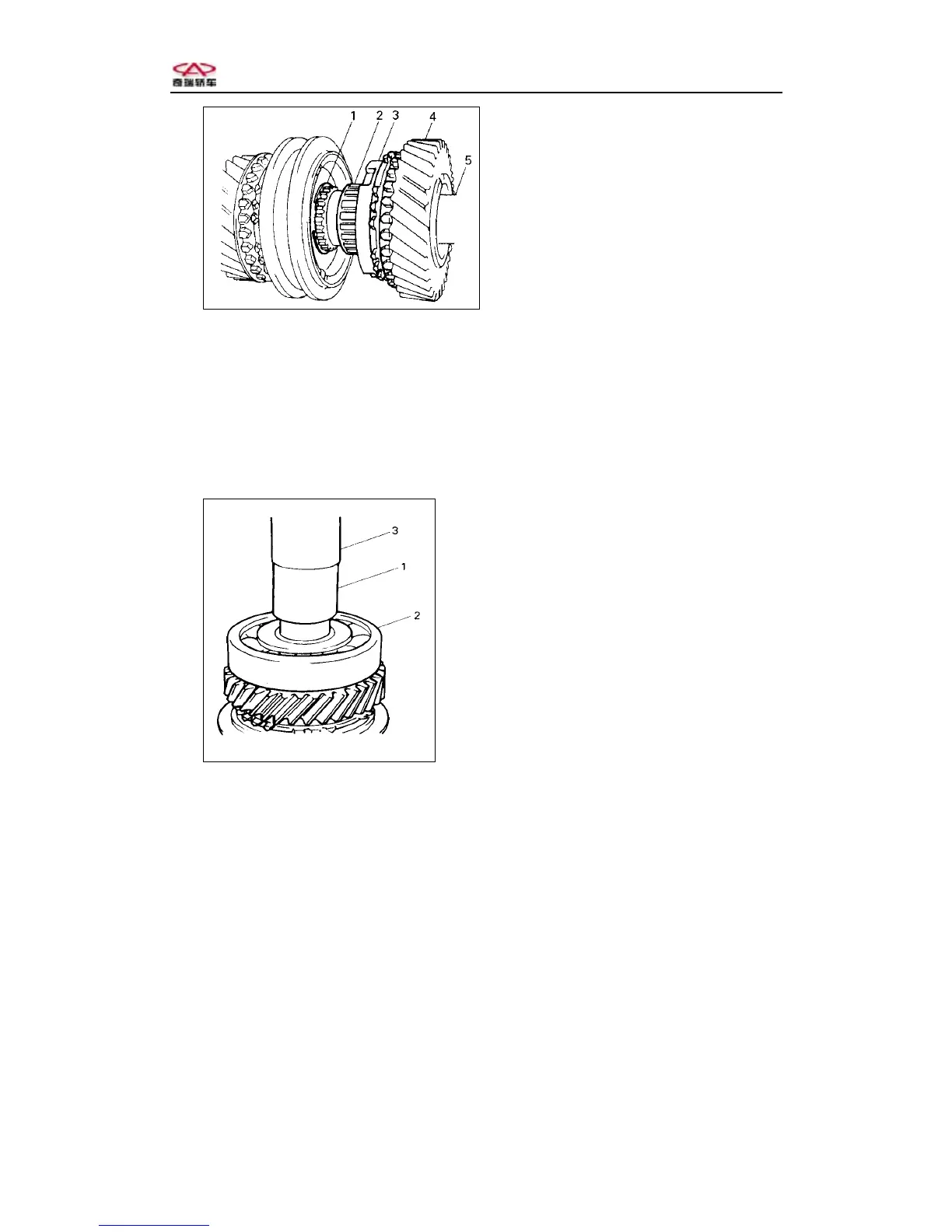

Chery QQ Service Manual Transmission System
1- Snap ring
2-Needle roller bearing
3- Synchronizer ring
4- 4th gear
5-Input shaft
Fig.3-29
9. Use special tool and hammer to press the left bearing.
10 . Use special tool to press the 5th gear spacer.
1-5th gear spacer
2-Left bearing
3- Special tool
Fig.3-30
Notice : In order to avoid the 5th
gear spacer pressure over，do not
pressure left bearing together.
（5）Output shaft assembly
Disassemble:
1. Clip the 4th gear and pull it out with the left bearing together.
-67-
