Chery QQ Service Manual Transmission System

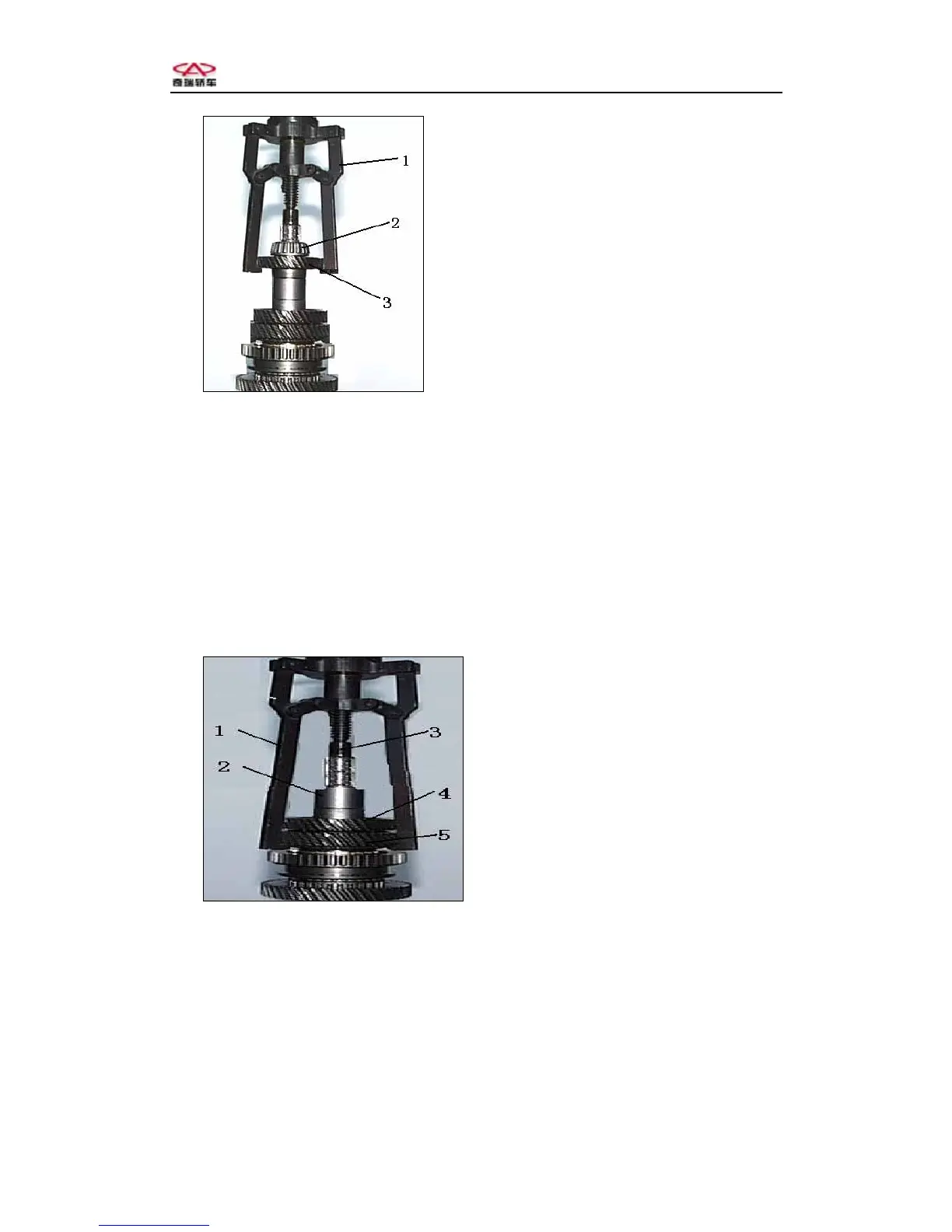

1- Special tool
2-
Left bearing
3-4th driven gear
Fig.3-31
Caution: In order to avoid breaking the 4th driven gear, do not clip the gear head.
2.Clip the 2nd driven gear, pull out the driven gear, 3rd driven gear with the
Spacer together.
Caution: In order to avoid breaking the 2nd driven gear, do not clip the gear head.
1- Special tool
2- Spacer
3- Output shaft
4-3rd driven gear
5-2nd driven gear
Fig.3-32
3. Remove the needle roller bearing and 2nd Synchronizer ring.
4. Remove the snap ring.
Caution: In order to remove the snap ring smoothly, be sure the special tool top is
plane.
-68-
Chery Automobile Co., Ltd
