Chery QQ Service Manual Transmission System
1- Gear
2- Synchronizer ring

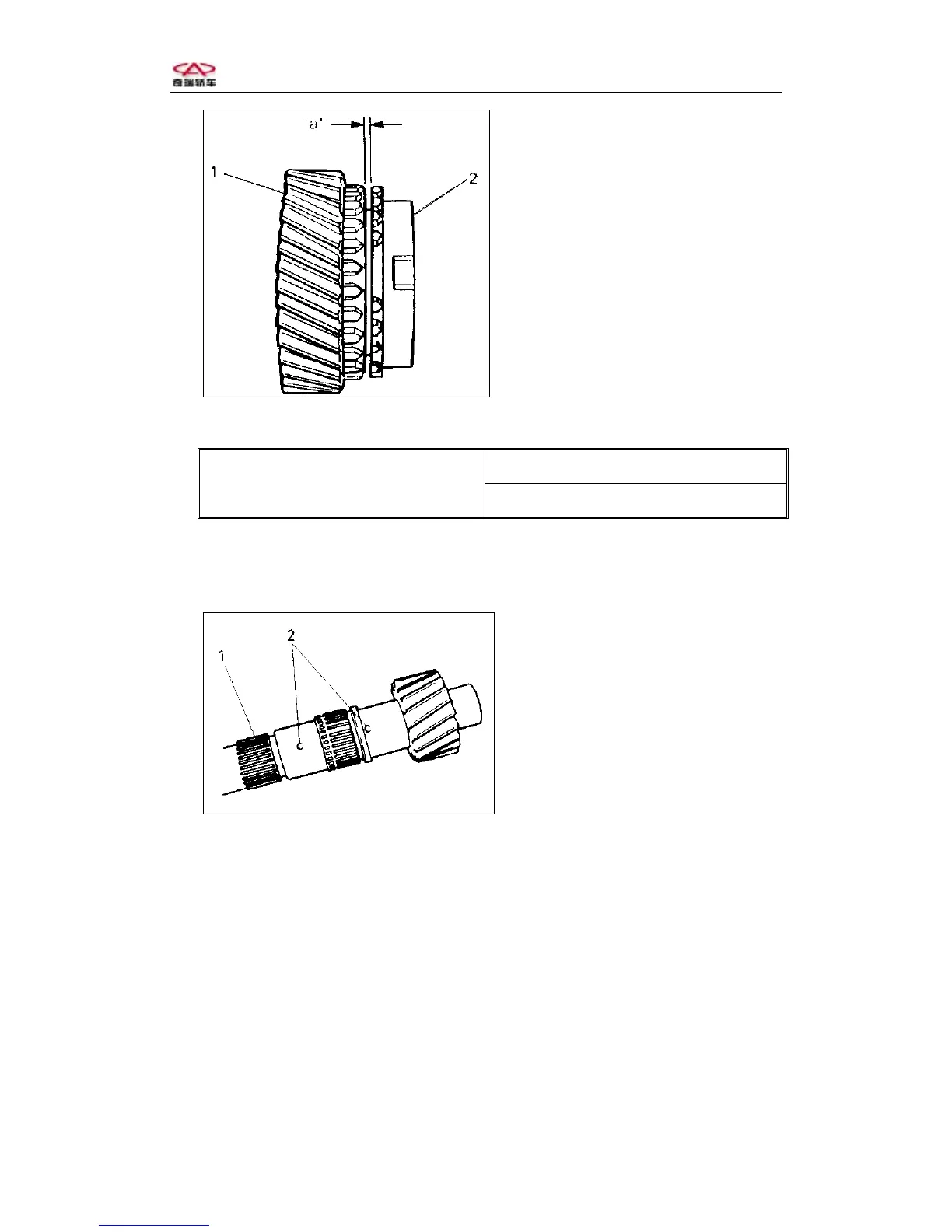

Fig.3-35
Standard 1.0~1.4mm
Clearance“a”
Use limit：0.5mm
3. In order to keep lubricate smoothly, blow the oil away, be sure there is not any
backup in the oil way.
1- Output shaft
2-
Oil way
Fig.3-36
4. Install the synchronizer assembly , insert 3 pieces of synchronizer insert, and
then install the spring according to the figure.
-70-
