Chery QQ Service Manual Transmission System

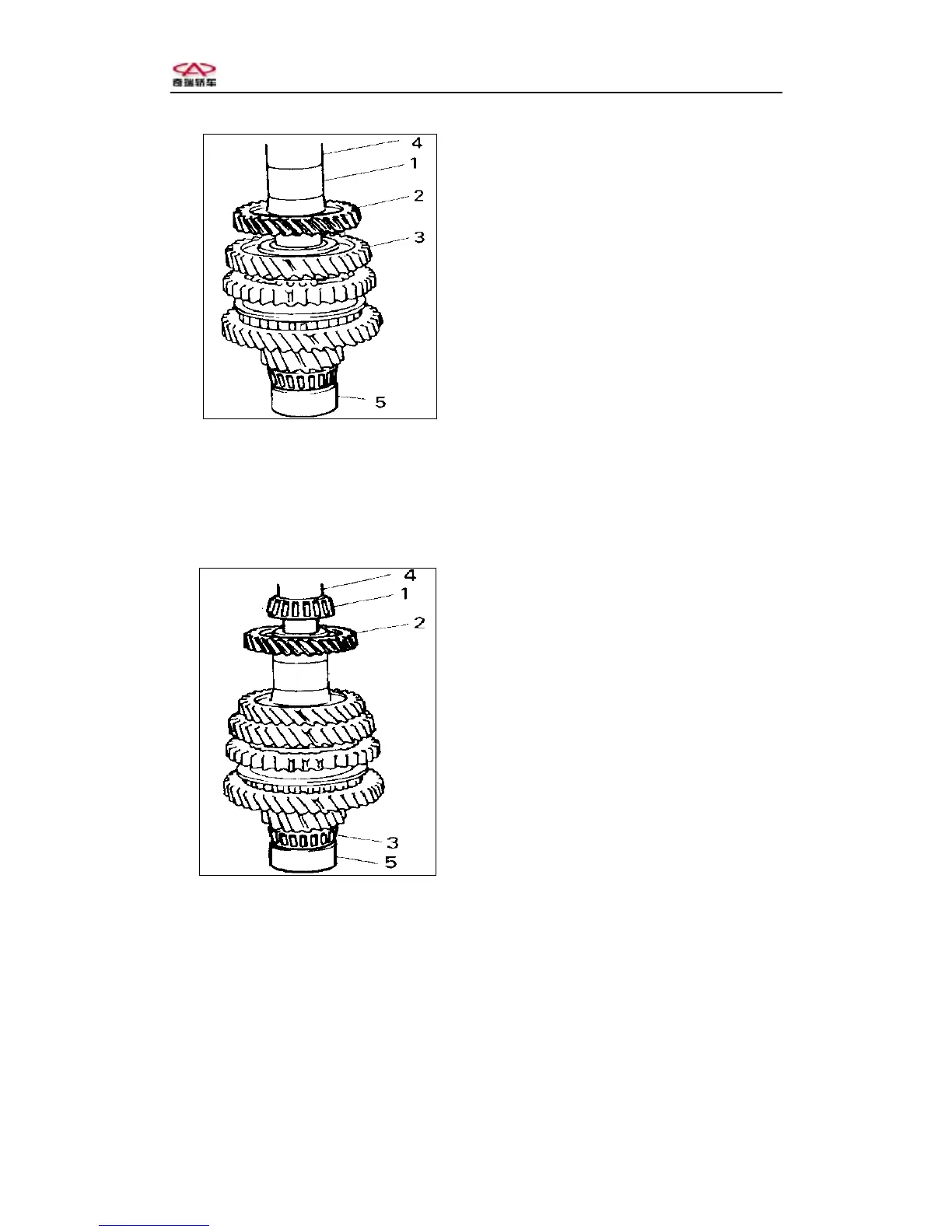

1-3rd, 4th spacer
2-3rd driven gear
3- 2nd driven gear
4- Special tool
5- Special tool
Fig.3-42
10. Use the same special tools to install the 4th driven gear.
11. Use hammer or special tools to install the left bearing.
Notice: To protect the bearing, use the special tools (shown in the figure) to support
the bearing.
1- Left bearing
2-4th driven gear
3-Right bearing
4- Special tool
5- Special tool
Fig.3-43
（6） Shift and select lever shaft control system
Shift and select lever shaft assembly:
-73-
