Chery QQ Service Manual Transmission System

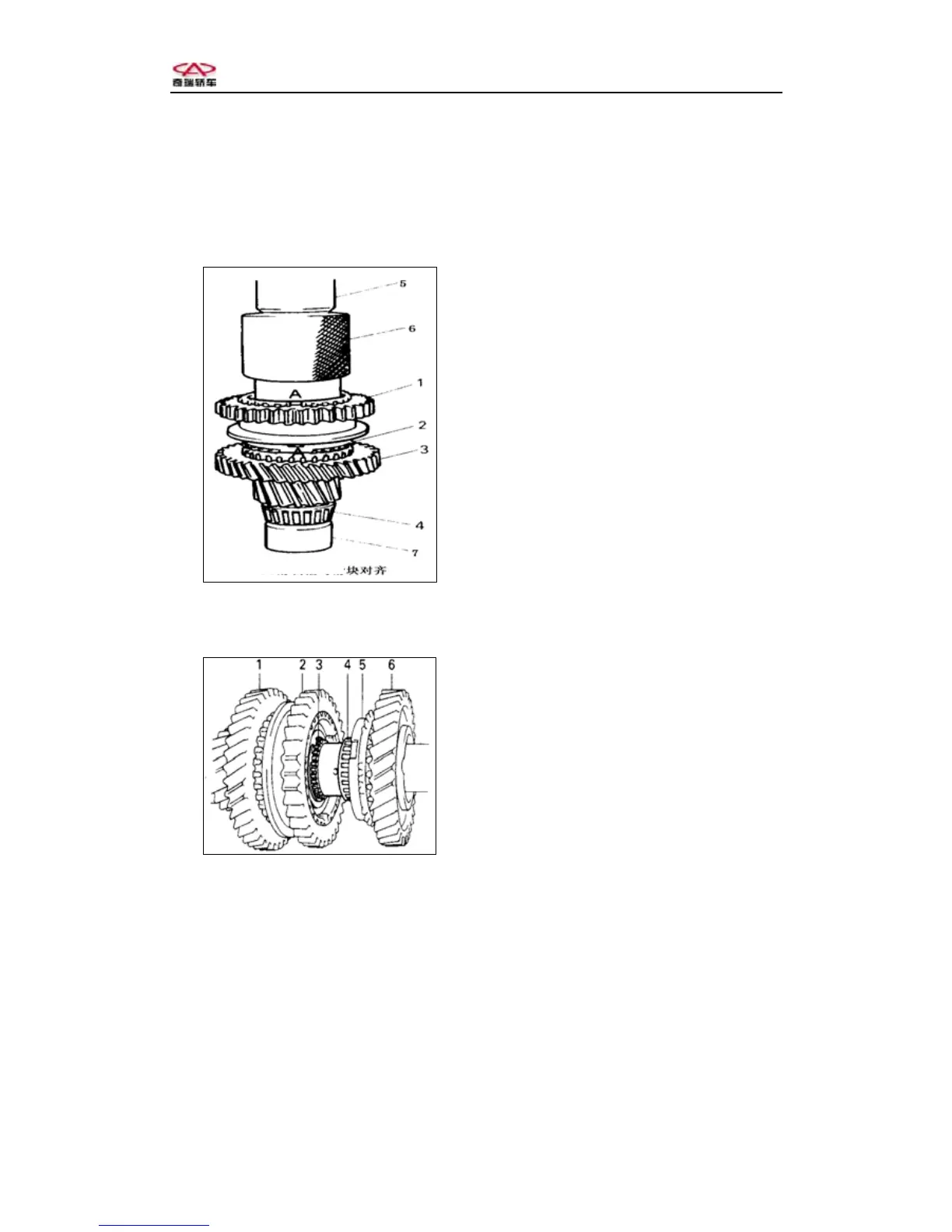

7. Hammer the synchronizer assembly.
Notice:
 Use special tool support right output shaft ，avoid bearing holding
race destroy。
 When installing the synchronizer assembly, keep the synchronizer insert and
the synchronizer insert on the synchronizer assembly face to face.
 After installation, check if the 1st gear turns smoothly.
Fig.3-40
8. Spread lubricant on the snap ring and needle roller bearing, and then install the
2nd synchronizer ring and 2nd driven gear.
1-1st driven gear
2- Synchronizer assembly
3- Snap ring
4- Needle roller bearing
5-2nd synchronizer ring
6-2nd driven gear
1- Synchronizer assembly
2-1st Synchronizer ring
3-1st driven gear
4- Right bearing
5- Special tool
6- Special tool
7- Special tool
Fig.3-41
Notice: Be sure the snap ring has been installed in the clitellum.
9, Install the 3rd driven gear and spacer.
Notice: It is suggested that first install the 3rd driven gear and spacer , secondly
install the 4th driven gear, in this way, the output shaft will not bear too much
pressure.
