Chery QQ Service Manual Transmission System

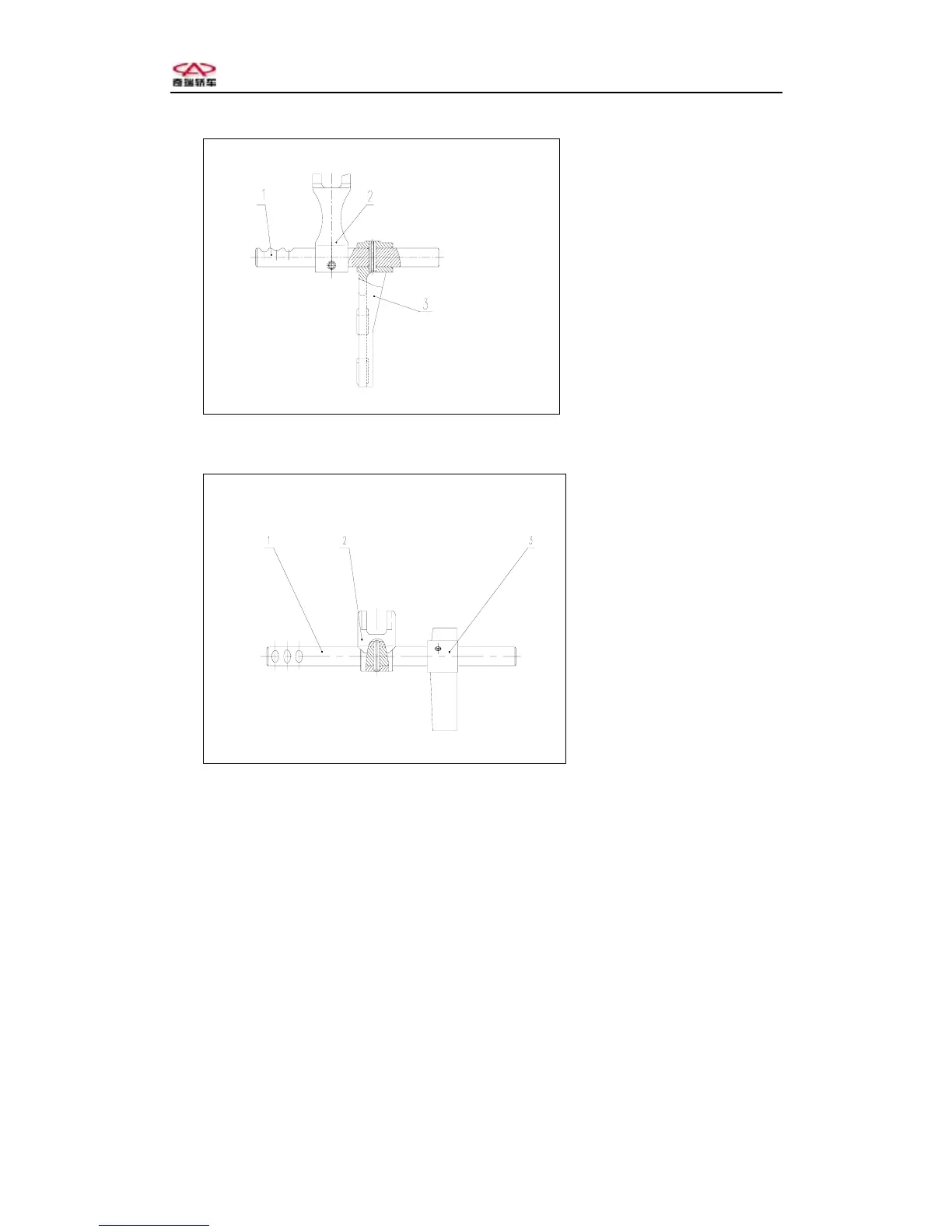

1-1st.2nd Shift fork shaft
2-1st .2nd Shift head
3-1st .2nd Shift fork
1st , 2nd Shift fork shaft assembly
1-3rd, 4th Shift fork shaft
2-3rd, 4th Shift head
3-3rd, 4th Shift fork
3rd, 4th Shift fork shaft assembly.
1.Use the professional tools to remove the 3 pin and component (from the select
lever shaft assembly.
2.Clean up all the parts, if necessary, please replace the used parts.
3.Install according to the reverse process of disassembly.
Notice: When installing, Shift fork Slotted spring pin placket should stagger 180 º.
Check Shift fork and shift hub sleeve.
