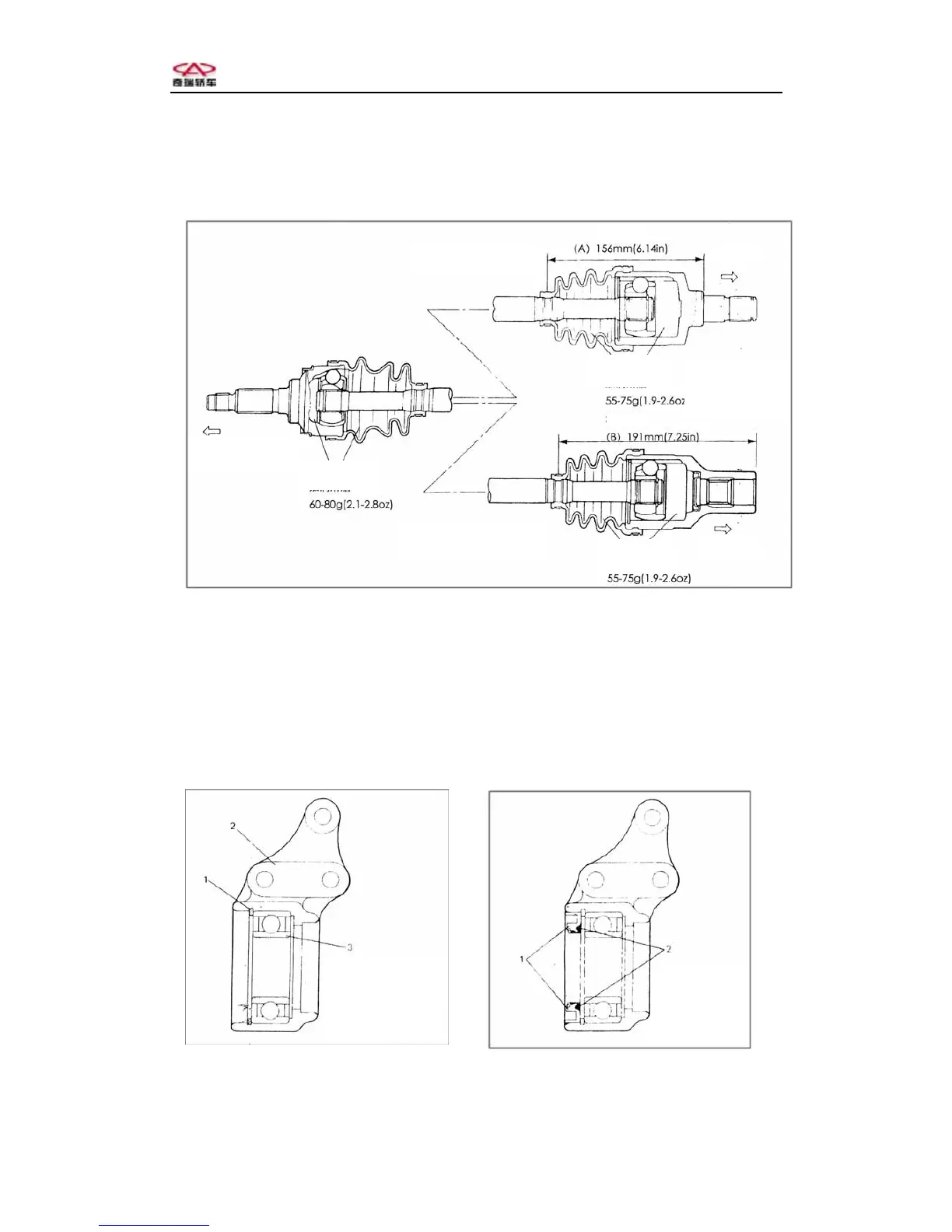

9. Fix the boot on the bell-mouthed. Adjust the measure (A) and (B) to accord
with the fig. Below.
Left drive shaft
Right drive shaft
Differential
side
lubricate
lubricate
l
ub
ri
c
at
e
Wheel side
（2）install output shaft and bearing race.
Install the output shaft according to the reverse order and pay attention to the
followings.
When installing the bearing race snap ring, be sure the snap ring has been
fixed tightly in the central bearing race snap ring slot; keep the left oil seal in the right
direction shown in the fig. below.
1. Snap ring
2. Central bearing
race
1.Left oil seal
2.Lubricate
Fix the snap ring tightly in the snap ring slot.
When install the right oil seal, keep the right direction shown in the fig. below.
