Chery QQ Service Manual Chassis System

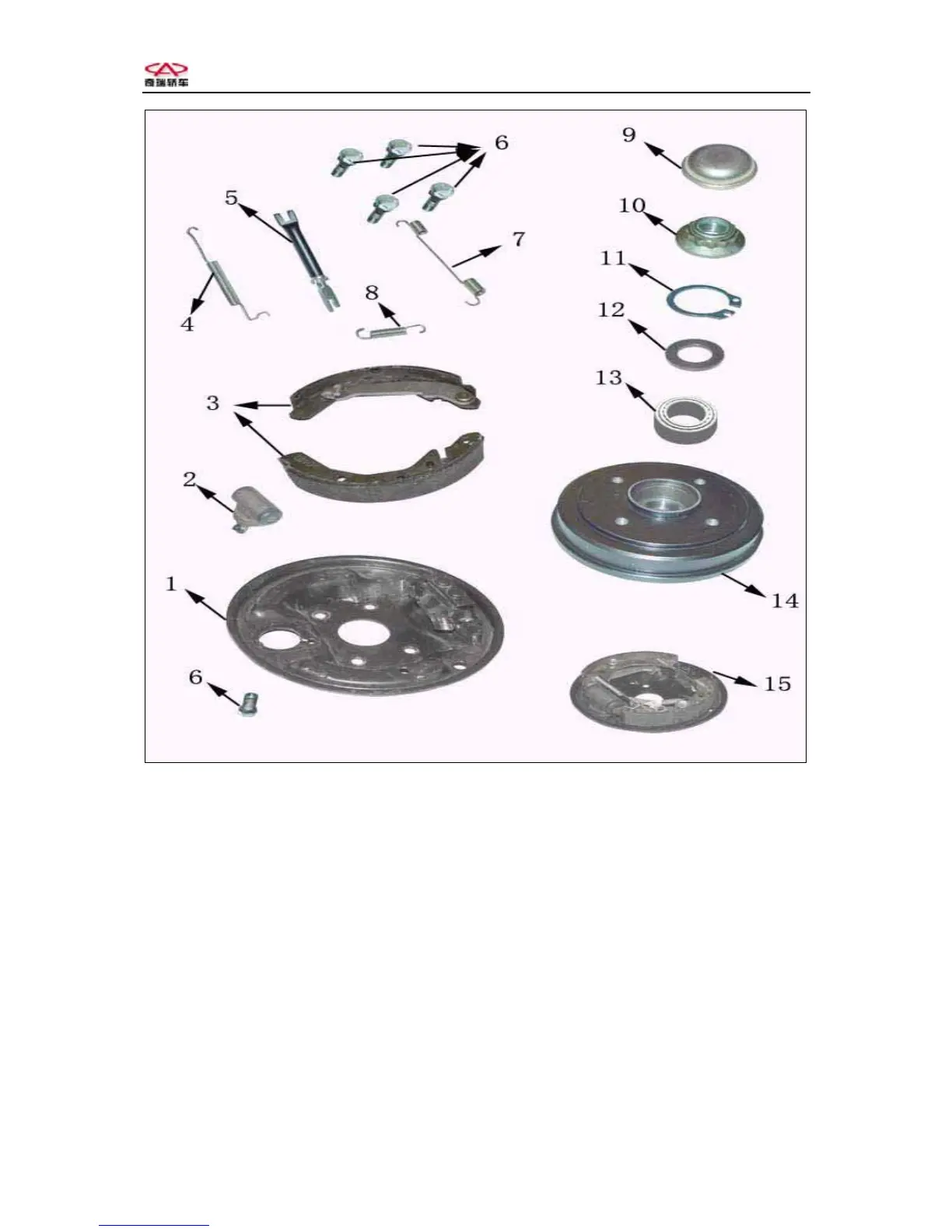

1. Brake base plate; 2. Branch pump; 3. Brake shoe; 4. Upper reset spring of
brake shoe; 5. Brake spacing self adjustment assembly; 6. Bolt; 7. Lower reset
spring of brake shoe; 8. Spring; 9. Dust-proof cover; 10. Brake drum locking
screw nut; 11. Jump ring; 12. Guard ring; 13. Bearing; 14. Brake drum; 15. Rear
wheel brake assembly;
3
Chery Automobile Co., Ltd
