Chery QQ Service Manual Chassis System

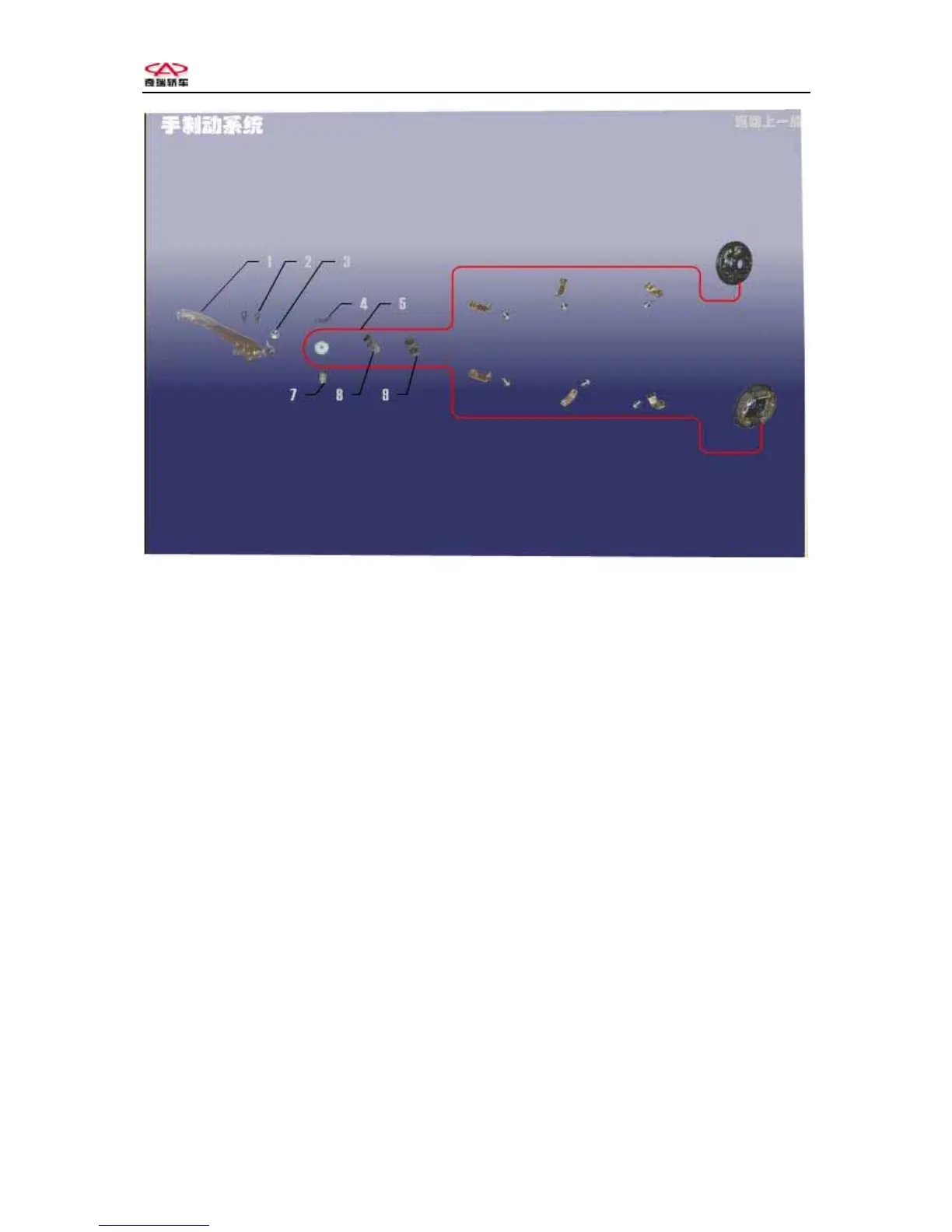

1. Parking brake system;2. Bolt; 3. Nut; 4. Lock pin; 5. Parking brake cable;
7. Axis pin;8..Ap ron;9. Cable rubber sheath
1. Schematic diagram of brake alarming system
1）. Refer to the “Schematic Diagram of Instruments” for the brake liquid sensor
and static brake switch electric circuitry;
2）. Refer to the Schematic Diagram of Brake Lights for the electric circuitry
of the brake switch.
2. Diagnostic information and procedures
1). Checklist for hydraulic brake diagnostic system
