Chery QQ Service Manual Chassis System

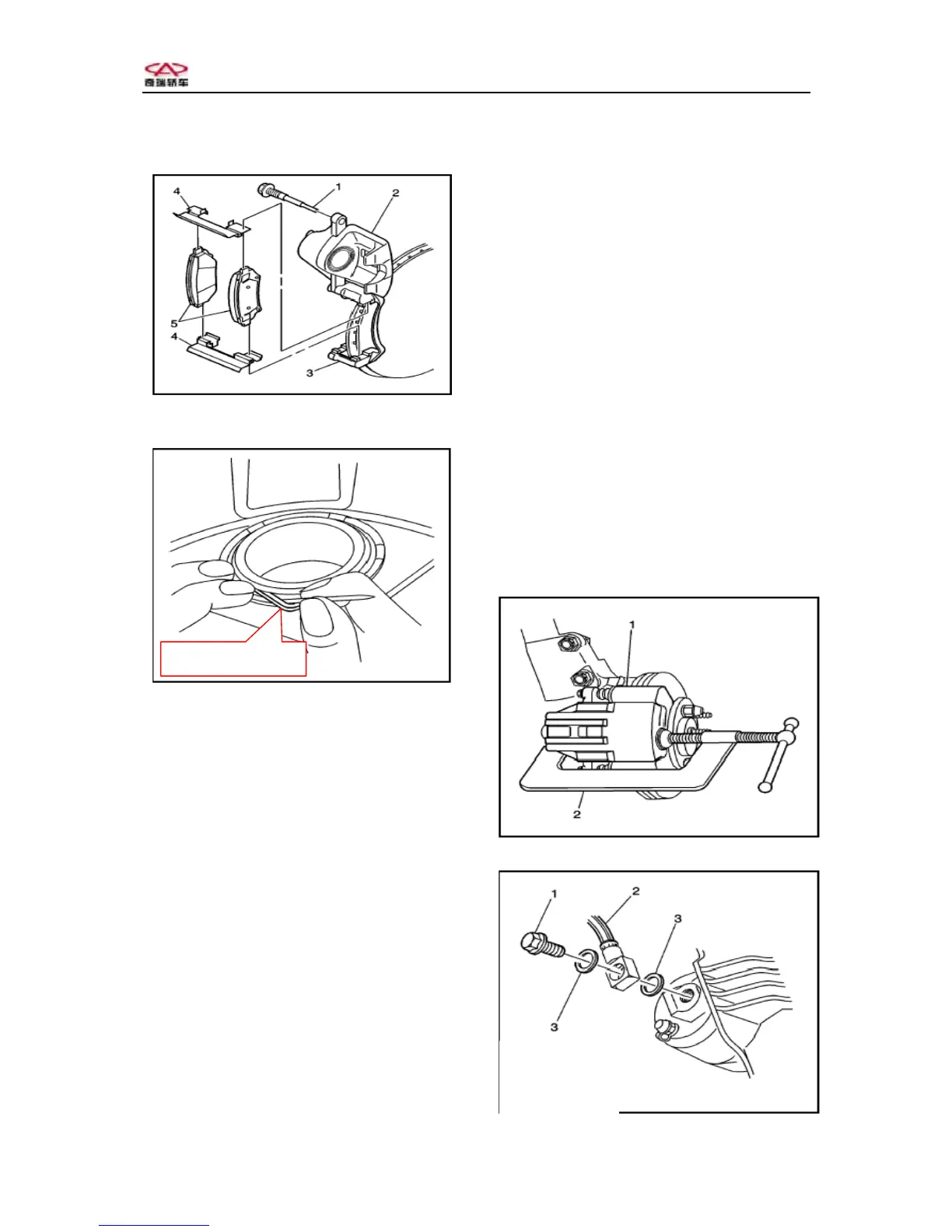

4)Brake caliper replace
Disassembly procedure
1、Drain out 1/3 fluid in master
cylinder.
2、Support and lift vehicle.
3、Mark the position of wheel to the
wheel hub.
4、Remove front tire and wheel assembly.
See “Remove and install tire and
wheel”.
5、Install a big C caliper on top of
shell to peak rear of outside lining.
6、Slowly screw C caliper until the
piston enters cylinder deep enough to
pull out caliper from the disc.
HINT: Don’t use flexible hose to
suspend caliper, otherwise it will
damage hose.
7. If remove caliper from vehicle to
repair or replace, it will need to
remove hose bolts and open hose. If
only replacing brake lining, it needs
not to open hose.
8. Block caliper shell and pipe outlet
to prevent fluid to flow out.
9.Removal caliper bolt
10. Remove caliper shell.
11. Check if bolt covers are cut, crack
or wear. Replace any damaged cover.
12. Check if piston covers are cut,
crack or wear. Replace any damaged
cover.
13. Check if bolts are damaged. Replace
new one if damaging.
Piston protector
1. screw
2. soft pipe
3. washer
28
