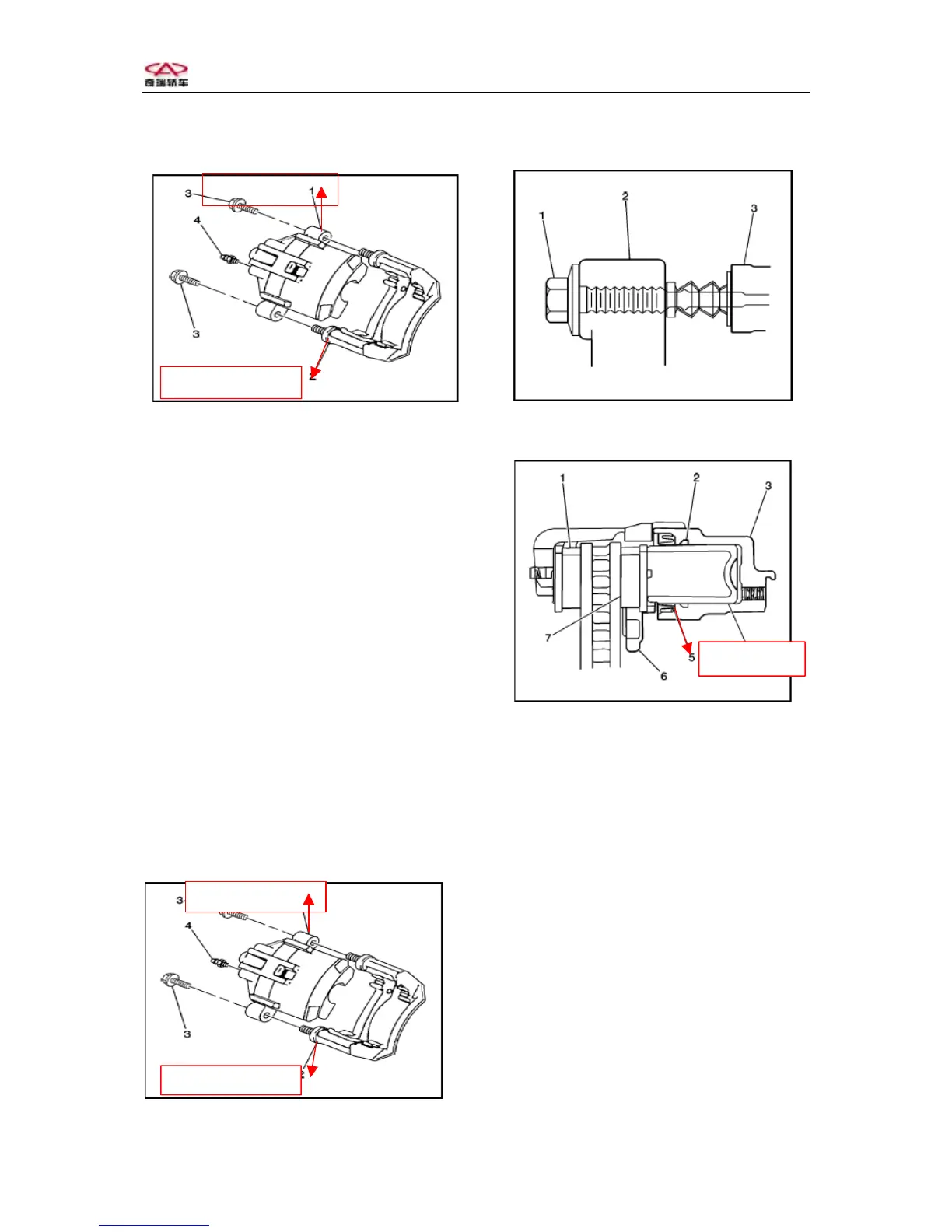

Steps of installation
1. Install caliper shell on the disc
and caliper support to make sure bush
is in correct position.
2、Lubricate caliper bolt.
3、Lubricate two bolt hoods.
4、Install caliper bolt.
Fixture
Screw torque is 85N.m.
5、Install hose bolts.
Fixture
The hose bolt screw torque is 85N.m.
6. Remove wheel bolts
7、Remove front tire and wheel assembly.
See “ Remove and install tire and
wheel”.
8. Lower vehicle
9、Fill brake fluid in master cylinder
to correct level.
10. When removing hose bolts, it needs
to drain out air in caliper.
11. Check if leaking fluid in hydraulic
system. See “Check leaking fluid in
hydraulic system”.
5) Brake caliper overhaul
Disassembly procedure
Remove brake caliper. See“ Remove
brake caliper”
Warning: Don’t use fingers to hold
piston, it will cause serious personal
hurt.
Attention: Take care to remove piston
from cylinder.
1、Remove piston. Clamp caliper. Use
compressed air to remove piston from
Caliper casing
Caliper bracket
Bolt protector
29
Chery Automobile Co., Ltd
