Chery QQ Service Manual Chassis System

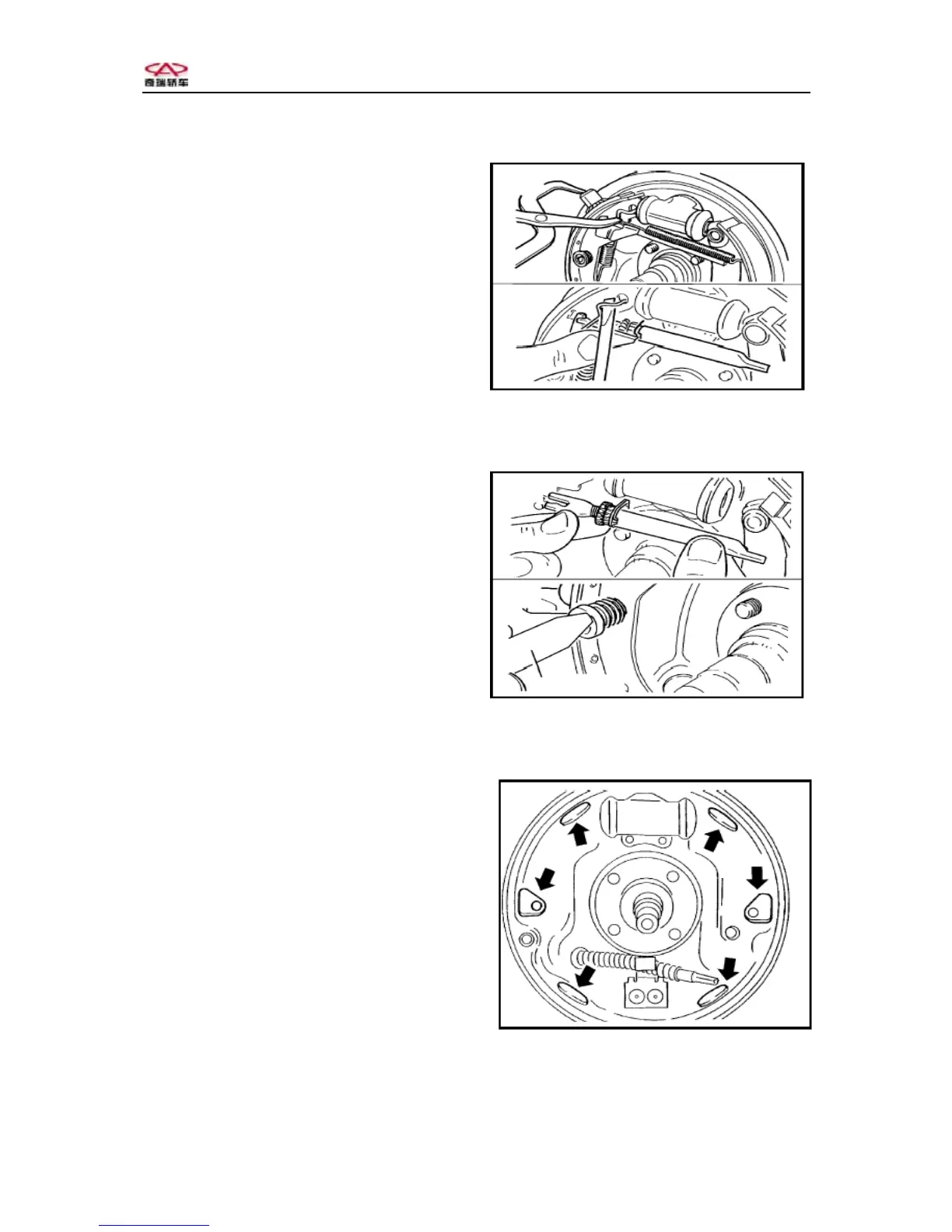

2)Brake scrape gasket replace
Disassembly procedure
It recommends to use lining or other
pats produced by Chery to keep
front/rear brake function. The brake
parts produced by Chery are selected
carefully to offer best brake
function.
1. Support and lift vehicle.
2. Mark the wheel position to the hub.
3. Remove tire and wheel.
4. Remove brake drum.
5.Remove park brake cable.
6.Remove return spring with spring
caliper.
7. Remove spring and spring support
with screwdriver.
8. Remove regulative lever.
9. Remove spring and pins.
10.Remove lining.
11. Must remember to remove all linings
on same shaft.
Steps of installation
1. Clear surface of brake plate.
2. Use soft cloth as shown in the
figure.
3. Connect park brake cable and park
brake lever.
4. Install lining, spring and spring
reed.
5. Install the returning spring and
brake hoof.
6. Make sure the correct position of
the cable as shown in figure.
7. Install slide lever regulator
between two linings.
8. Install small washer on new lining
as shown in figure.
Points of attention: Make sure the
small washer is mounted on lining,
otherwise it will cause to damage brake
or brake malfunction
