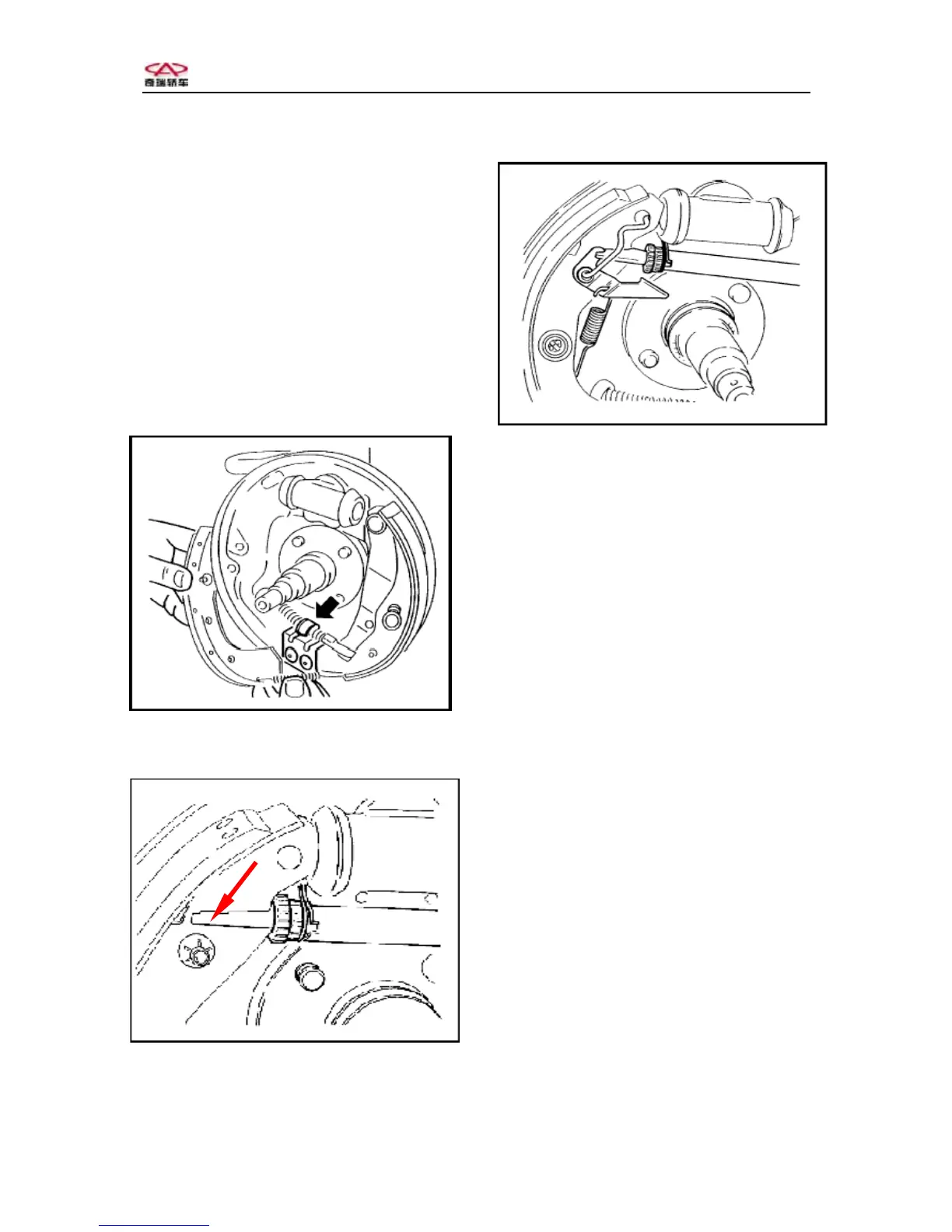

9. Mount regulating support with
spring to pins.
10.Install the support spring.
11.Install return spring with spring
caliper.
12.Install brake drum.
13.Adjust clearance of drum bearing.
14. Adjust clearance of lining. Apply
brake 10-15 times to make sure the
clearances are correct.
Attention: Stepping down brake pedal
hard several times could adjust the
clearance of lining automatically.
15. Install tire and wheel.
16. Mark the original labels on wheel
and drum.
17. Drop vehicle.
18. Fill brake fluid to suitable level.
19. Grind lining and drum.
3) Gasket brake drum run in
Finish new surface of disc after
replacing linings.
Run in the surface of new brake drum
after finishing or replacing brake
drum.
Brake 20 times at 48km/h to run in
new braking surface.
Step down the pedal with the force
gradually. Avoid over heat of
brake.
Attention: Avoid sharp brake in
driving 200km after replacing new
lining.
