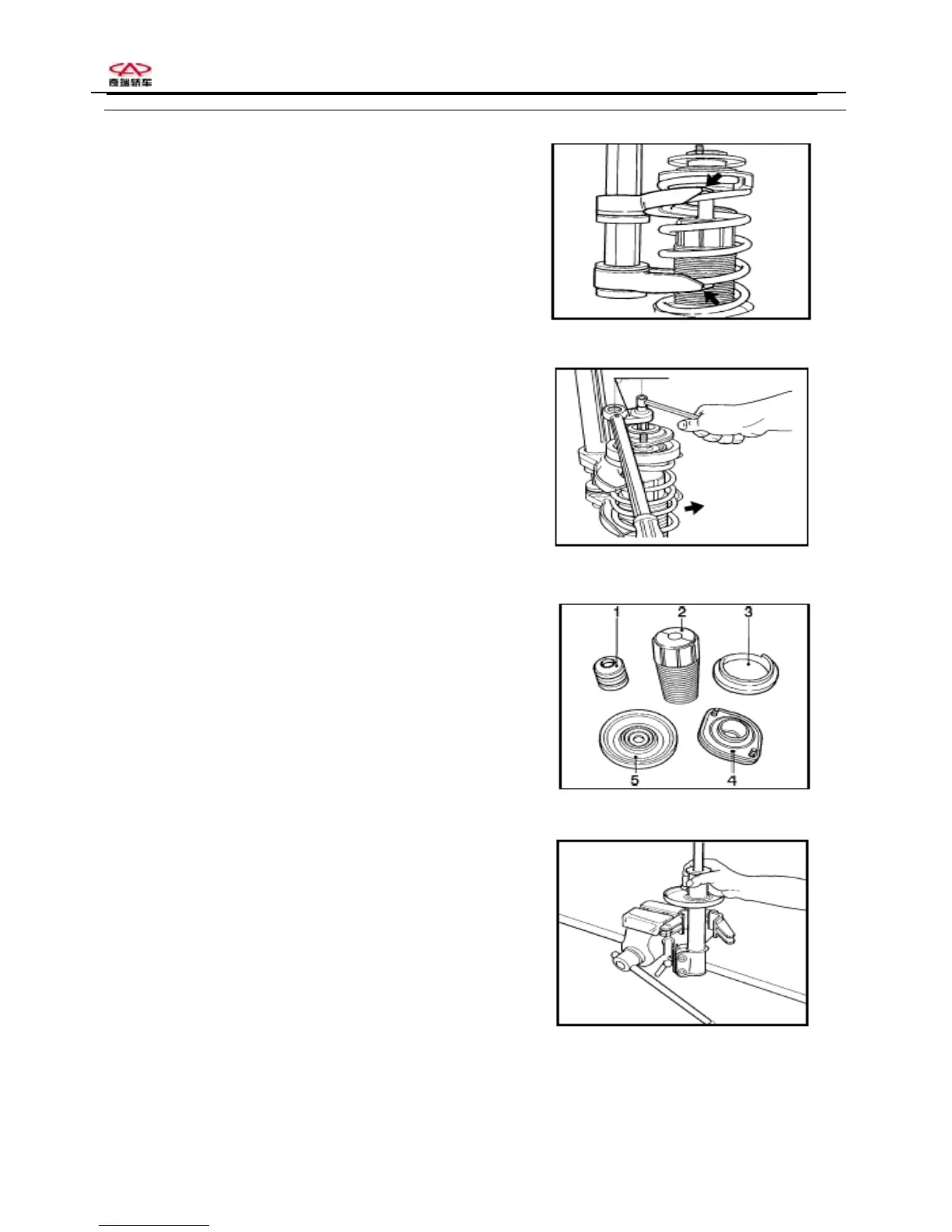

Removal
1. Loosen the spring compressor and place the
jaws
between the spring tops and bottoms (as shown
by
the arrow).
2. Press the spring till it is separated from the
upper
and lower spring stands.
3. Use the ratchet wrench (as shown in the
Figure)
to dismount the absorber supporting column stand
restriction device and the washer from the piston
connecting rod.
4. Remove the upper spring stand with absorption
block.
5. Remove the spring compressor with the spring
and the dustproof cover.
6. Dismount the baffle block.
7. Check the dismounted parts and components
for the extent of tears and wears.
1）The baffle block
2）The dustproof cover
3 ) The absorption block
4）The absorber supporting column stand
5）The upper spring stand with bearing and
restriction device
8. In the case that the used absorber needs to be
replaced, remove the absorber and then dismount
the lower wheel speed sensor wire bundle frame
from the used absorber and install it on the new
absorber (if there is no wheel speed sensor wire
bundle frame, the absorber can be replaced
directly).
