Chery QQ Service Manual Chassis System
Chery Automobile Co., Ltd
89

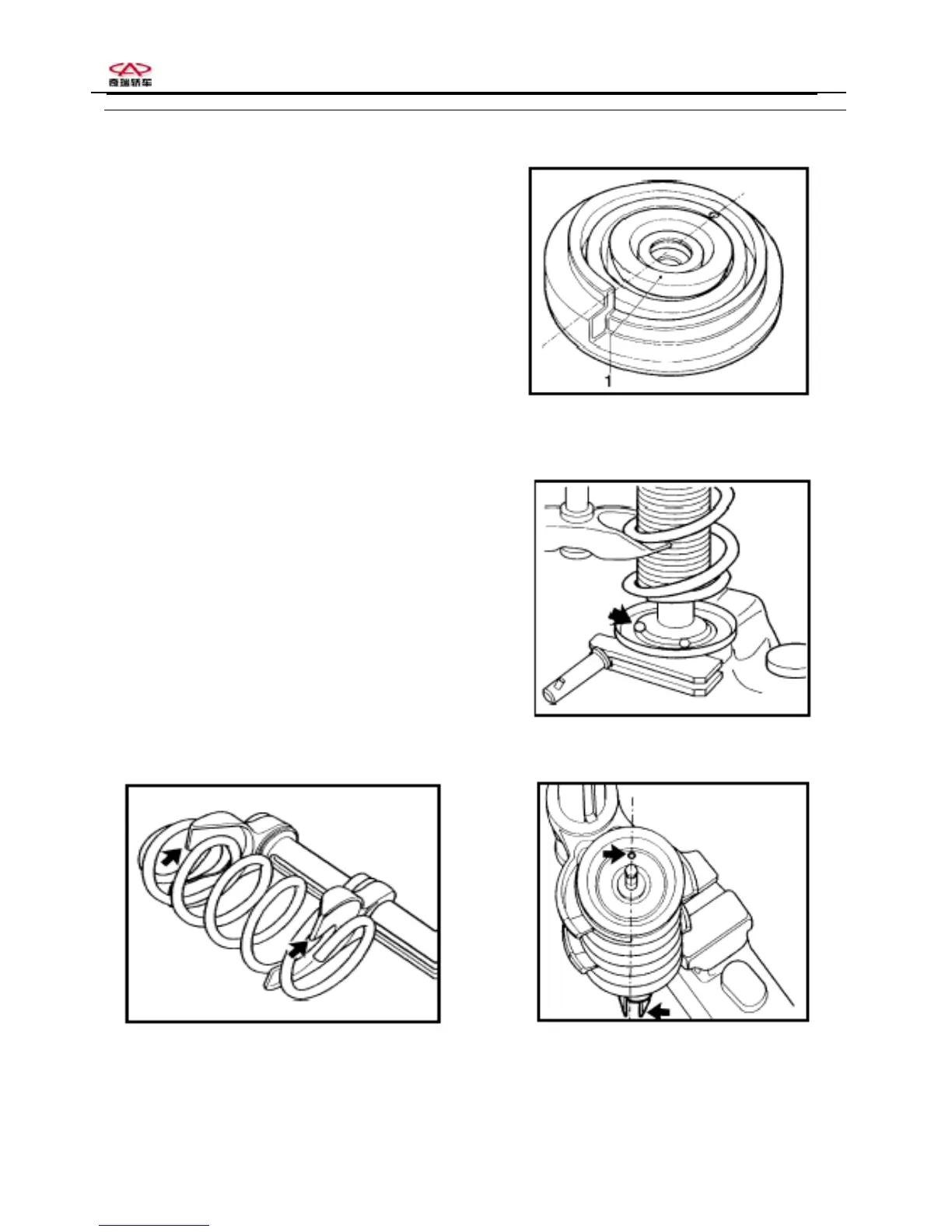

Steps of installation:
1. Install the new absorber in the installation
fixture.
2. If the used spring needs to be replaced, loosen
the spring and then take the used spring out from
the spring compressor.
3. Insert the new spring into the spring
compressor with a ring being left for the upper
section and one and a half rings being left for the
lower section.
4. Press the spring to make the spacing between
the two jaws≤120 mm.
5. Make sure the position of the baffle
block restriction device (1).
6. Install the baffle block and pull the
piston rod to the bottom.
7. Place the spring onto the spring stand.
Cautions:
The end of the spring must be within the position
restriction hole (as shown by the arrow).
8. Install the upper spring stand with absorption
block so as to make the punched hole have a 180
degree bias from the lower spring supporting
column position(as shown by the arrow).
