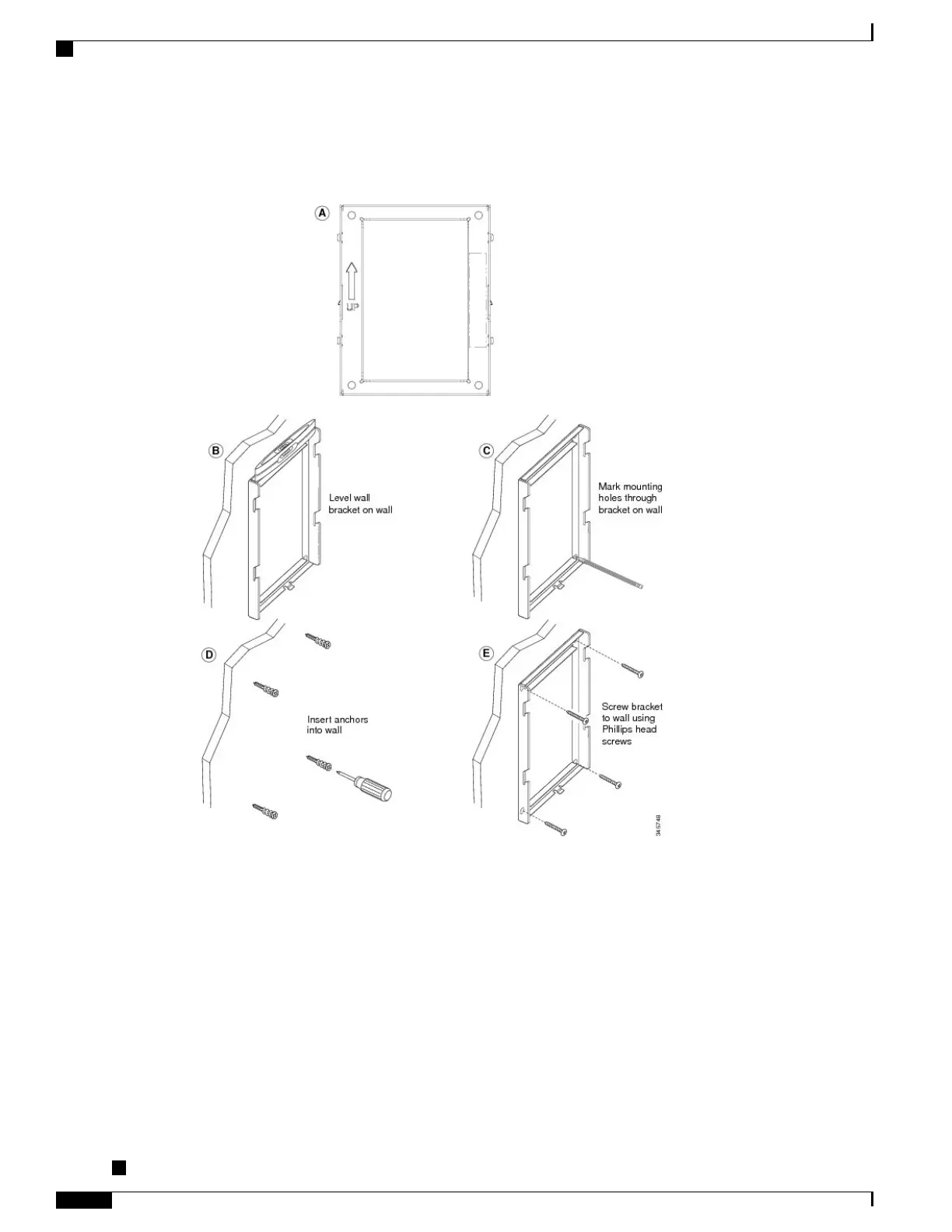

The following figure shows the bracket installation steps.
Figure 18: Bracket Installation
Step 2
Attach the phone bracket to the IP Phone.
a) Detach the handset cord (and headset cord, if there is a headset), power cord, and any other attached cords
from the base of the phone.
b) Remove the label covers that conceal the screw holes.
c) Attach the phone bracket by inserting the tabs into the mounting tabs on the back of the phone. The phone
ports should be accessible through the holes in the bracket.
d) Secure the phone bracket to the IP phone with the machine screws, using the #1 Phillips-head screwdriver.
e) Thread the handset cord (and headset cord, if using one). Reattach the cords and seat them in the clips that
are incorporated into the phone body.
Cisco Unified IP Phone 8961, 9951, and 9971 Administration Guide for Cisco Unified Communications Manager
10.0
140
Non-Lockable Wall Mount Components for Phone
