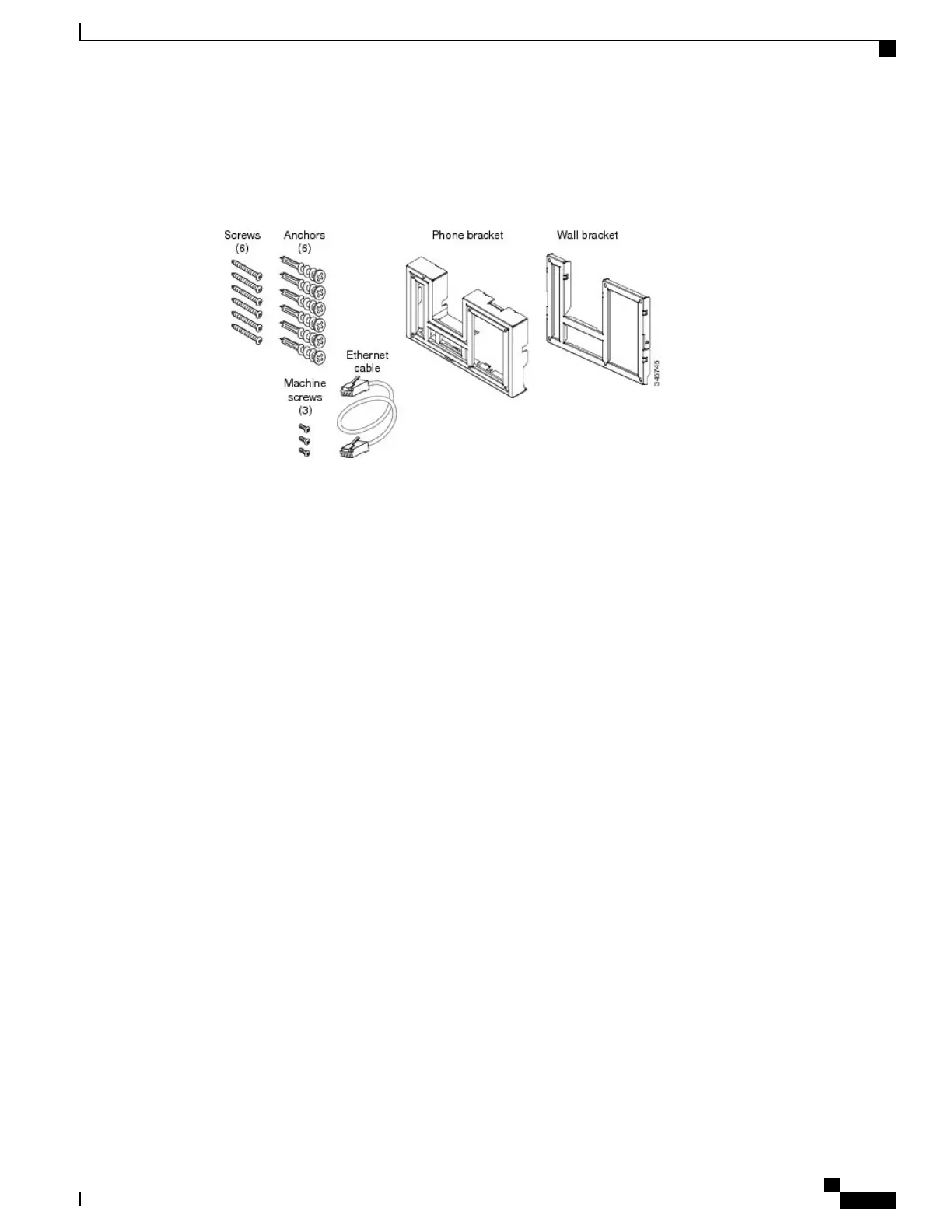

The following figure shows the components of the ADA Non-Lockable Wall Mount Kit for the Cisco Unified
IP Phone 8961, 9951, and 9971 with a Key Expansion Module.
Figure 26: Components
The package contains the following items:
•
One phone bracket
•
One wall bracket
•
Six #8-18 x 1.25-inch Phillips-head screws with six anchors
•
Three #4-40 x 0.31-inch machine screws
•
One 6-inch Ethernet cable
Install Non-Lockable Wall Mount Kit for Phone with Key Expansion Module
The wall mount kit can be mounted on most surfaces, including concrete, brick, and similar hard surfaces.
To mount the kit on concrete, brick, or similar hard surfaces, you must provide the appropriate screws and
anchors for your wall surface.
Before You Begin
You need these tools to install the bracket:
•
#1 and #2 Phillips-head screwdrivers
•
Level
•
Pencil
You must also install an Ethernet jack for the telephone in the desired location if an Ethernet jack does not
currently exist. This jack must be wired appropriately for an Ethernet connection. You cannot use a regular
telephone jack.
