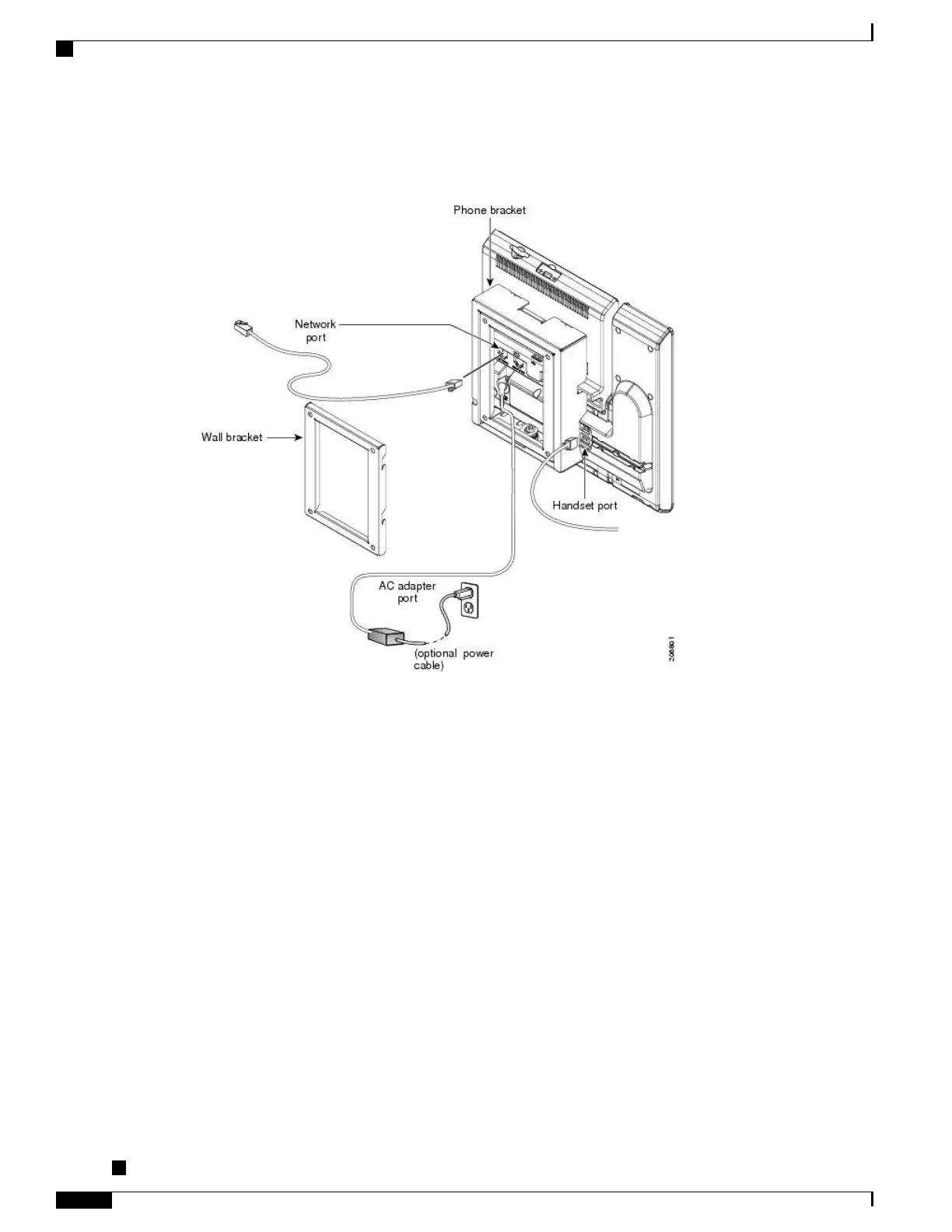

The following figure shows the cables.
Figure 20: Attach Cables
Step 4
Attach the phone to the wall bracket by inserting the tabs on the top of the phone bracket into the slots on the
wall bracket.
For cables that terminate outside of the brackets, use the cable-access openings in the bottom of the bracket
to position the power cord and any other cable that does not terminate in the wall behind the bracket. The
phone and wall bracket openings together form circular openings with room for one cable per opening.
Cisco Unified IP Phone 8961, 9951, and 9971 Administration Guide for Cisco Unified Communications Manager
10.0
142
Non-Lockable Wall Mount Components for Phone

Cisco 9971 Specifications

General

Resolution	640 x 480 pixels
Programmable Line Keys	5
Protocols	SIP, SCCP
Wi-Fi	802.11a/b/g
Weight	3.5 lbs
Display	5-inch color LCD
Audio	Wideband audio, G.722 codec support
USB Ports	2 x USB 2.0
Ethernet Ports	2
PoE	Yes (802.3af)
Video	H.264
Network Interfaces	10/100/1000 Ethernet
Codecs	G.711, G.722, G.729a, G.729ab, iLBC
Power Options	PoE
Headset Port	Dedicated headset port
Speakerphone	Full-duplex speakerphone
