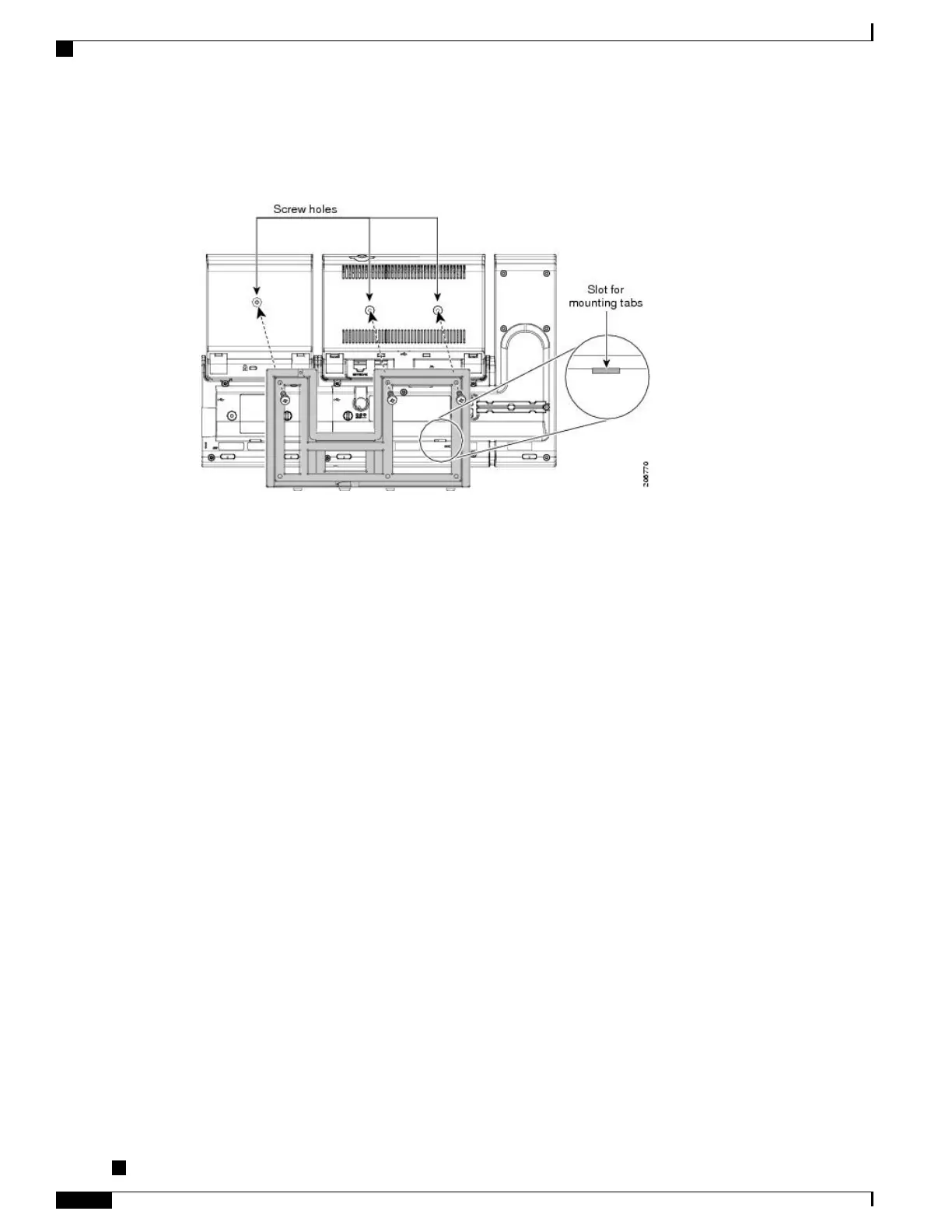

The following figure shows the steps to attach the phone bracket.
Figure 28: Attach Phone Bracket
Step 3
Attach the cords.
a) Attach the Ethernet cable to the 10/100/1000 SW network port and wall jack.
b) (Optional) If you are connecting a network device (such as a computer) to the phone, attach the cable to
the 10/100/1000 Computer (PC access) port.
c) (Optional) If you are using an external power supply, plug the power cord into the phone and dress the
cord by clipping it into the clips that are incorporated into the phone body next to the PC port.
d) (Optional) If the cables terminate inside the wall bracket, connect the cables to the jacks.
Cisco Unified IP Phone 8961, 9951, and 9971 Administration Guide for Cisco Unified Communications Manager
10.0
150
Non-Lockable Wall Mount Components for Phone with Key Expansion Module

Cisco 9971 Specifications

General

Resolution	640 x 480 pixels
Programmable Line Keys	5
Protocols	SIP, SCCP
Wi-Fi	802.11a/b/g
Weight	3.5 lbs
Display	5-inch color LCD
Audio	Wideband audio, G.722 codec support
USB Ports	2 x USB 2.0
Ethernet Ports	2
PoE	Yes (802.3af)
Video	H.264
Network Interfaces	10/100/1000 Ethernet
Codecs	G.711, G.722, G.729a, G.729ab, iLBC
Power Options	PoE
Headset Port	Dedicated headset port
Speakerphone	Full-duplex speakerphone
