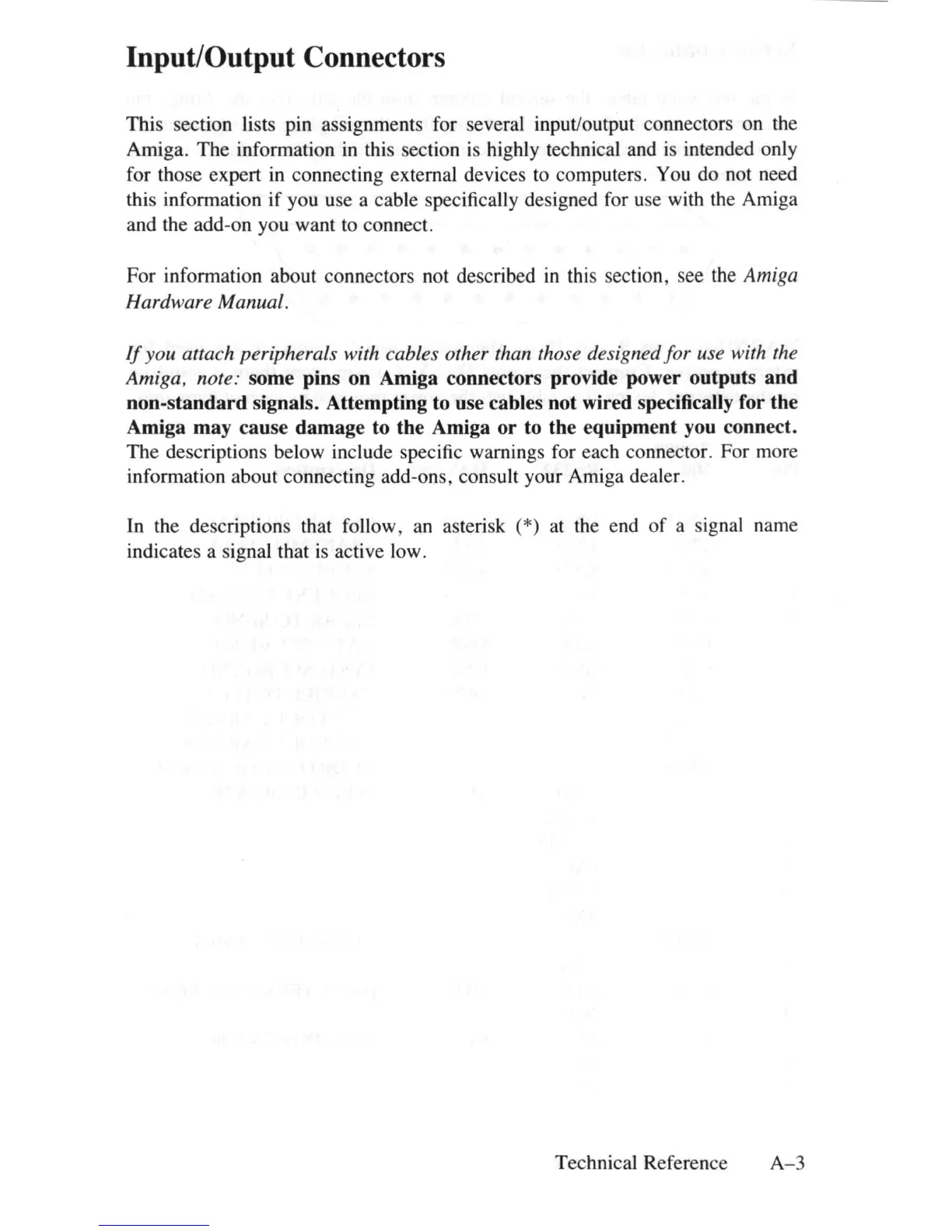

Input/Output Connectors
This section lists pin assignments for several input/output connectors on the
Amiga. The information
in
this section
is
highly technical and
is
intended only
for those expert
in
connecting external devices to computers. You do not need
this information if you use a cable specifically designed for use with the Amiga
and the add-on you want to connect.
For information about connectors not described
in
this section, see the Amiga
Hardware Manual.
If
you attach peripherals with cables other than those designed for use with the
Amiga, note:
some pins on Amiga connectors provide power outputs and
non-standard signals. Attempting
to
use cables not wired specifically for the
Amiga may cause damage to the Amiga
or
to
the equipment
you
connect.
The descriptions below include specific warnings for each connector. For more
information about connecting add-ons, consult your Amiga dealer.
In
the descriptions that follow ,
an
asterisk (*) at the end
of
a signal name
indicates a signal that
is
active low.
Technical Reference A- 3
