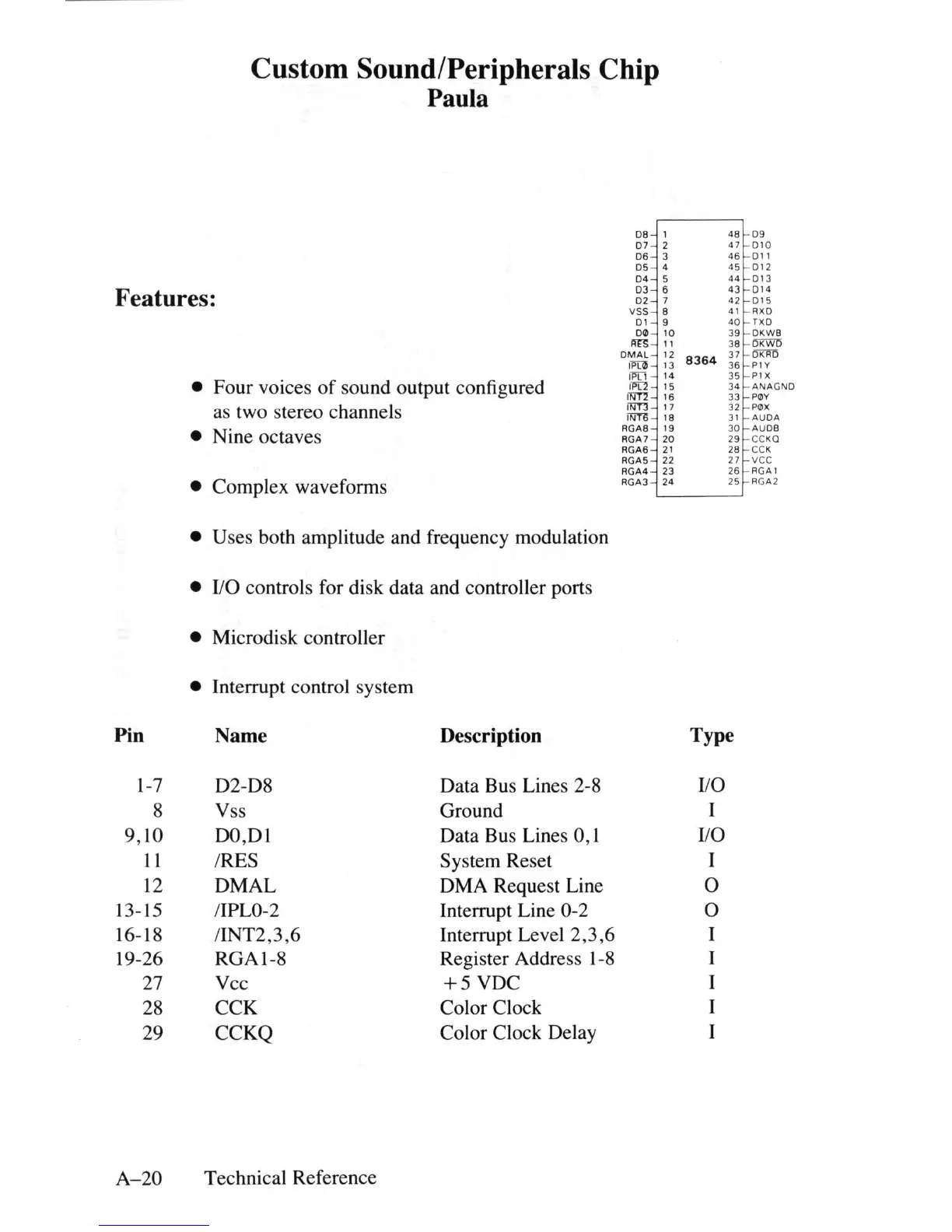

Custom Sound/Peripherals Chip
Paula
Features:
08
07
06
05
04
03
02
Pin
1-7
8
9,10
11
12
13-15
16-18
19-26
27
28
29
A-20
• Four voices of sound output configured
as two stereo channels
• Nine octaves
• Complex waveforms
• Uses both amplitude and frequency modulation
• 110 controls for disk data and controller ports
• Microdisk controller
• Interrupt control system
Name
Description
02-08 Data Bus Lines 2-8
Vss Ground
DO,DJ Data Bus Lines 0,1
IRES System Re set
DMAL DMA Request Line
IIPLO-2 Interrupt Line 0-2
I INT2 ,3,6
Interrupt Level 2,3,6
RGAI-8 Register Address 1-8
Vcc
+5 VDC
CCK
Color Clock
CCKQ
Color Clock Delay
Technical Reference
