Commodore Amiga 500 - RGB Monitor Connector

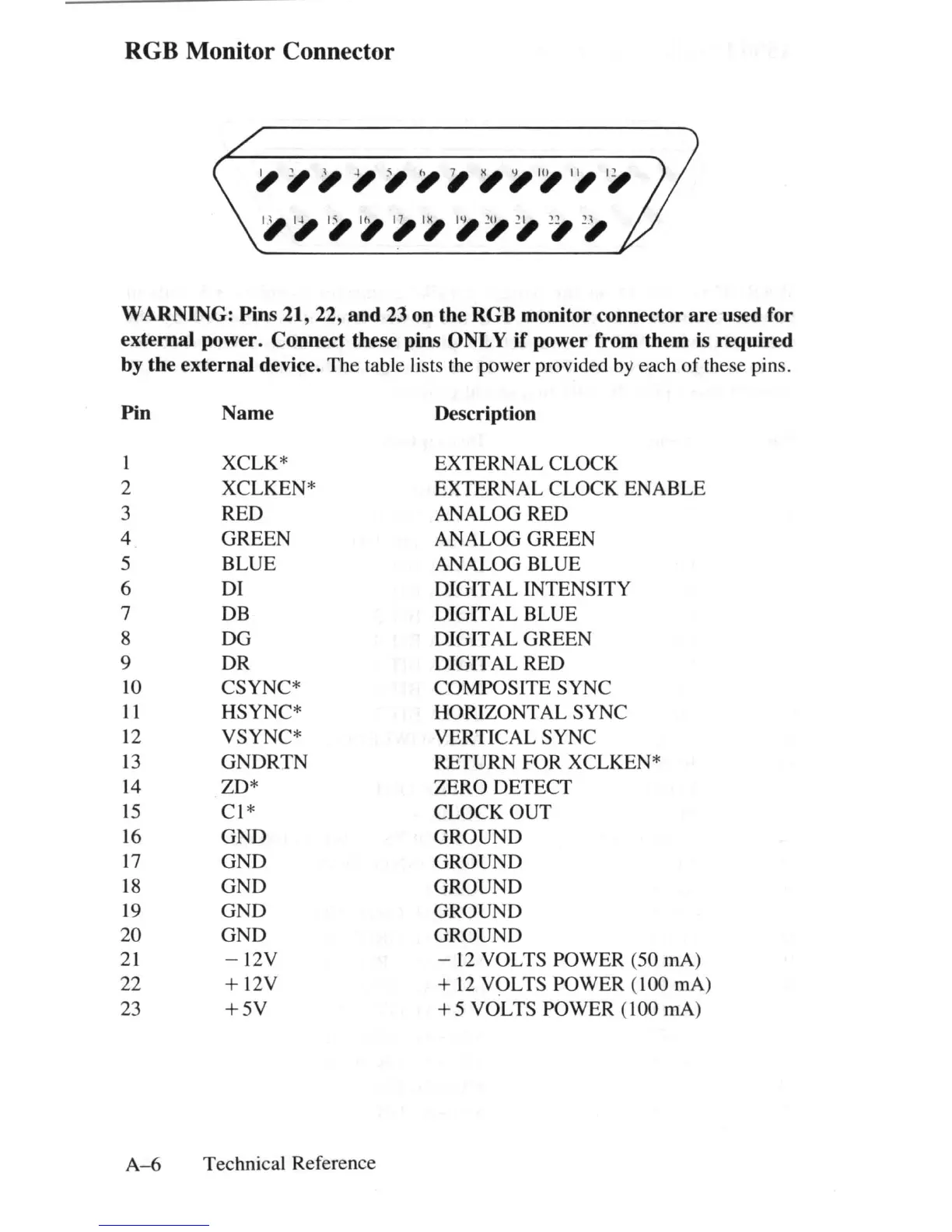

RGB Monitor Connector
~ ~ ~ ~,~, "'~ I ~ 1 '1 I,
I ,~~~, I ~~~, ~ , ~ ~
WARNING: Pins 21, 22, and 23 on the RGB monitor connector are used for
external power. Connect these pins ONLY if power from them is required
by the external device. The table lists the power provided by each of these pins.
Pin
Name
Description
1
XCLK*
EXTERNAL CLOCK
2 XCLKEN*
EXTERNAL CLOCK ENABLE
3 RED
ANALOG RED
4
GREEN
ANALOG GREEN
5
BLUE ANALOG BLUE
6
DI
DIGITAL INTENSITY
7
DB
DIGITAL BLUE
8 DG
DIGITAL GREEN
9 DR
DIGITAL RED
10 CSYNC*
COMPOSITE SYNC
11 HSYNC* HORIZONT AL SYNC
12
VSYNC* VERTICAL SYNC
13
GNDRTN RETURN FOR XCLKEN*
14 ZD*
ZERO DETECT
15
Cl * CLOCK OUT
16
GND
GROUND
17 GND
GROUND
18
GND
GROUND
19 GND
GROUND
20
GND GROUND
21
-12V
- 12 VOLTS POWER (50 mA )
22 + 12V + 12 VOLTS POWER ( 100 mA )
23 +5V + 5 VOLTS POWER ( 100 rnA )
A-6 Techni ca l Reference
