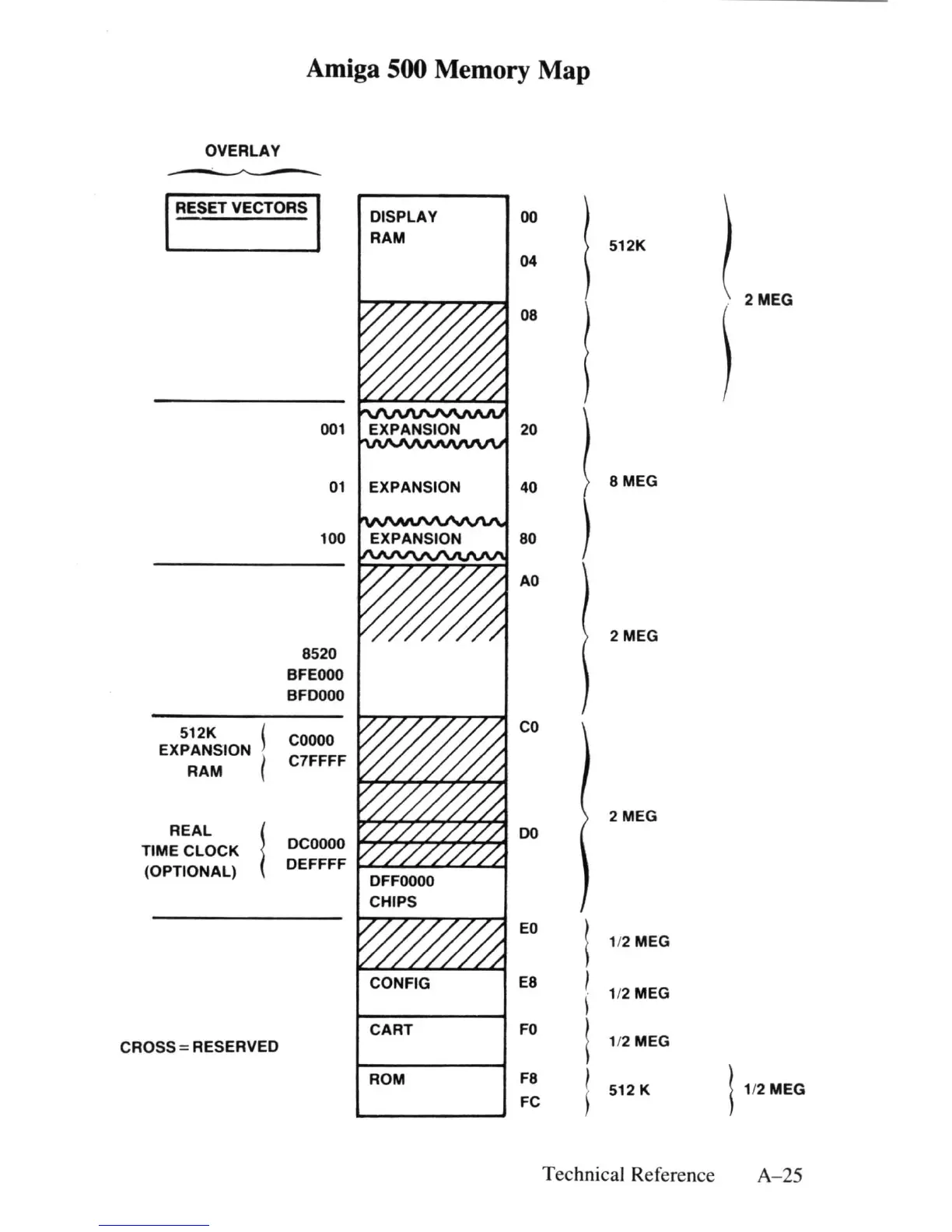

Amiga 500 Memory Map
OVERLAY
~
RESET VECTORS
DISPLAY
00
RAM
512K
04
2 MEG
08
)
001 EXPANSION 20
01 EXPANSION 40
8MEG
100 EXPANSION 80
AO
2MEG
8520
BFEOOO
BFDOOO
512K l
CO
EXPANSION I
COOOO
RAM
C7FFFF
2MEG
REAL
DO
TIME CLOCK
DCOOOO
(OPTIONAL)
DEFFFF
EO
1/2 MEG
CONFIG
E8
1/2 MEG
CART
FO
CROSS = RESERVED
1/2 MEG
ROM
F8
FC
512 K
~ 1/2 MEG
Technical Reference
A- 25
