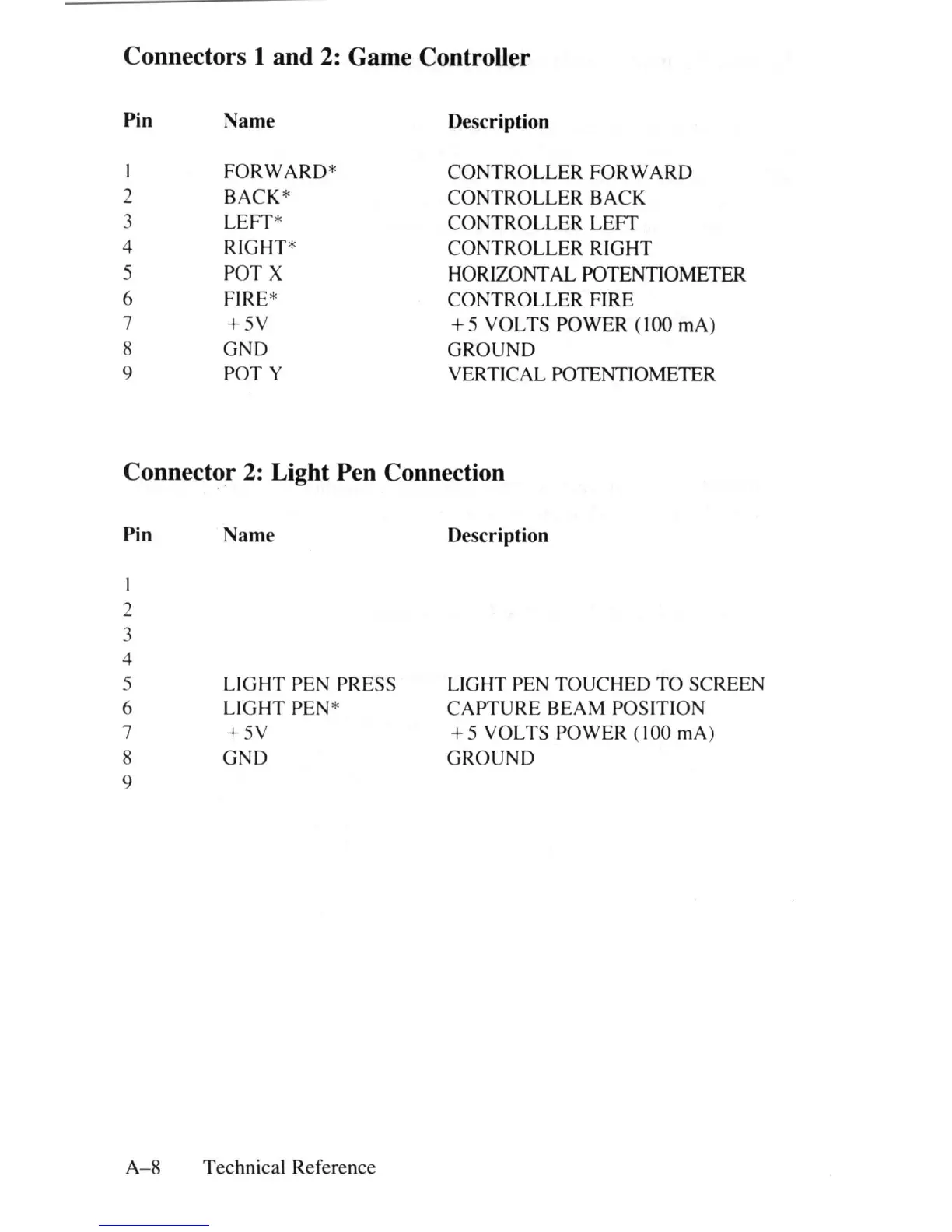

Commodore Amiga 500 - Connectors 1 and 2: Game Controller; Connector 2: Light Pen Connection

Connectors 1 and 2: Game Controller
Pin
Name
Description
I
FORWARD*
CONTROLLER FORWARD
2
BACK*
CONTROLLER BACK
3
LEFT*
CONTROLLER LEFT
4
RIGHT*
CONTROLLER RIGHT
5
POT X
HORIZONTAL POTENTIOMETER
6 FIRE*
CONTROLLER FIRE
7
+5Y
+ 5 VOLTS POWER (100 rnA)
8 GND
GROUND
9 POT Y
VERTICAL POTENTIOMETER
Connector 2: Light Pen Connection
Pin
I
2
3
4
5
6
7
8
9
Name
LIGHT PEN PRESS
LIGHT
PEN *
+ 5V
GND
A-8 Technical Reference
Description
LIGHT PEN TOUCHED TO SCREEN
CAPTURE BEAM POSITION
+5 VOLTS POWER ( 100 rnA)
GROUND
