so should the output only be desired during certain days this can be
accommodated. The time transmit is preempted by an actual alarm.
The TPO-4 program is used with the Solid State Transmitter (SST) option
installed with on a System 3505. TPO-4 enables the SYSTEM 3505 to
automatically make a box transmission at a preset time, or times, of day.
Transmission of certain days of the week can also be set. Up to eight user-set
Time/Box/Round/Speed provided user programmable via the 30 Set Menu (Time
Blows) of the System 3505. Use the 7 Set Menu to determine Network
preferences (“Should I” instructions that decide if the 3505 will send or receive
SST box transmissions from/to the Network”). Use the Set 9 Menu to set
Transmission Speed (“Fast” or “Slow”).

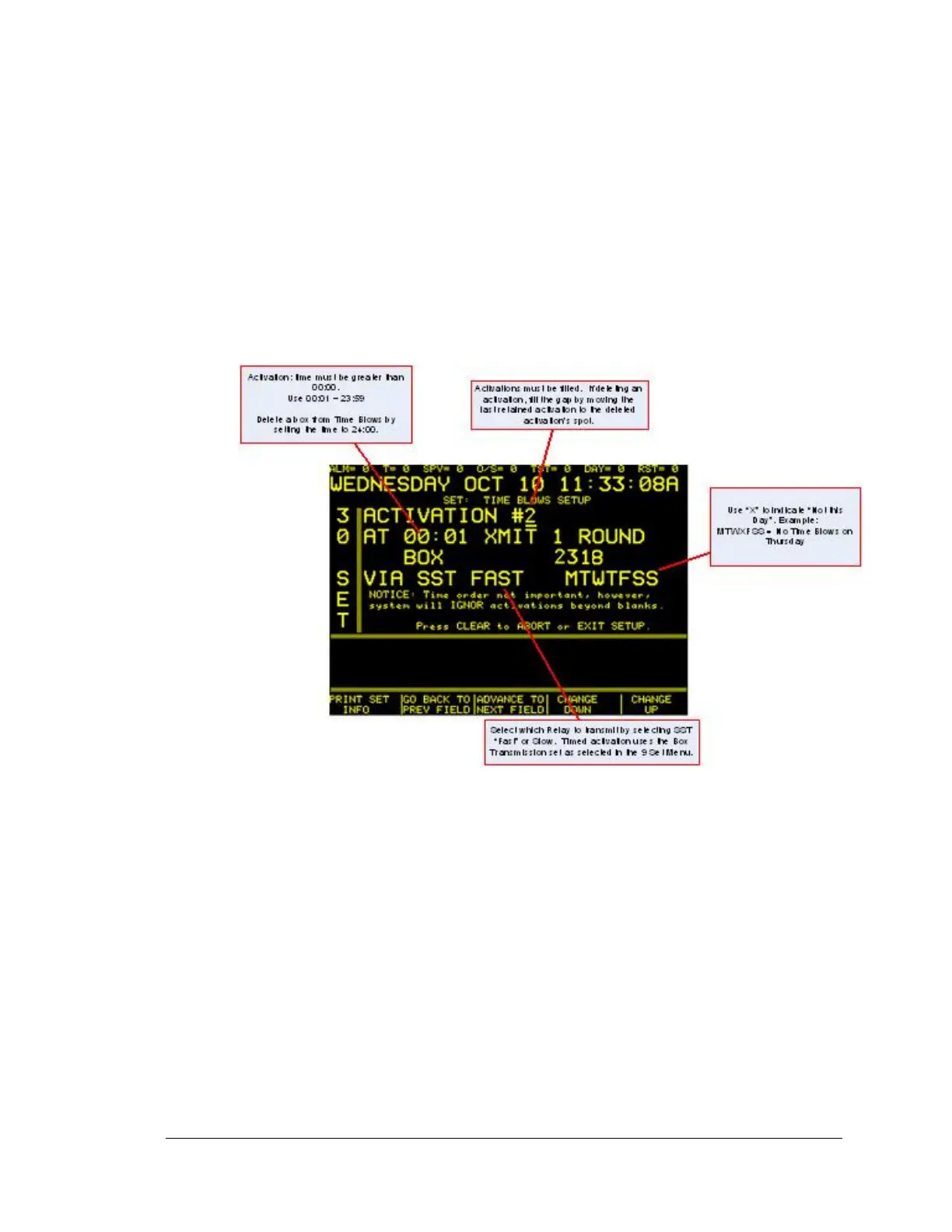

From the 30 Set Menu:
Press ↑↓ to change activation # 1 thru 8
Press FUNC to move between Selections
Press ↑↓ to turn Activation on
Press ↑↓ to enter time 01:00 thru 23:59
Press FUNC
Press↑↓ to enter # of Rounds 1 thru 9
PRESS FUNC
Press ↑↓ to change SST between Fast & Slow
20.2.3
SST-4 SOLID STATE ZONE CODER
The Solid State Zone Coder provides the SYSTEM 3505 with the ability to
output a pulse coded telegraphic alarm upon receipt of a zone ALARM
condition. The SST-4 is completely Field Programmable for 1 through 9 digits,
as well as the number of rounds for each.
To Next Page
