The main screen is displayed when the WIN3505 program is started. Note that the Large
Icons on the main screen are grayed out. This indicated that there is no communication link
between the PC and the SYSTEM 3505.
Clicking the ‘LINK WITH 3505’ icon will be prompt the reset of the SYSTEM 3505. (See
above).
At this point, either power up the SYSTEM (if it was turned off) or press the reset button
inside on the back of the front panel.

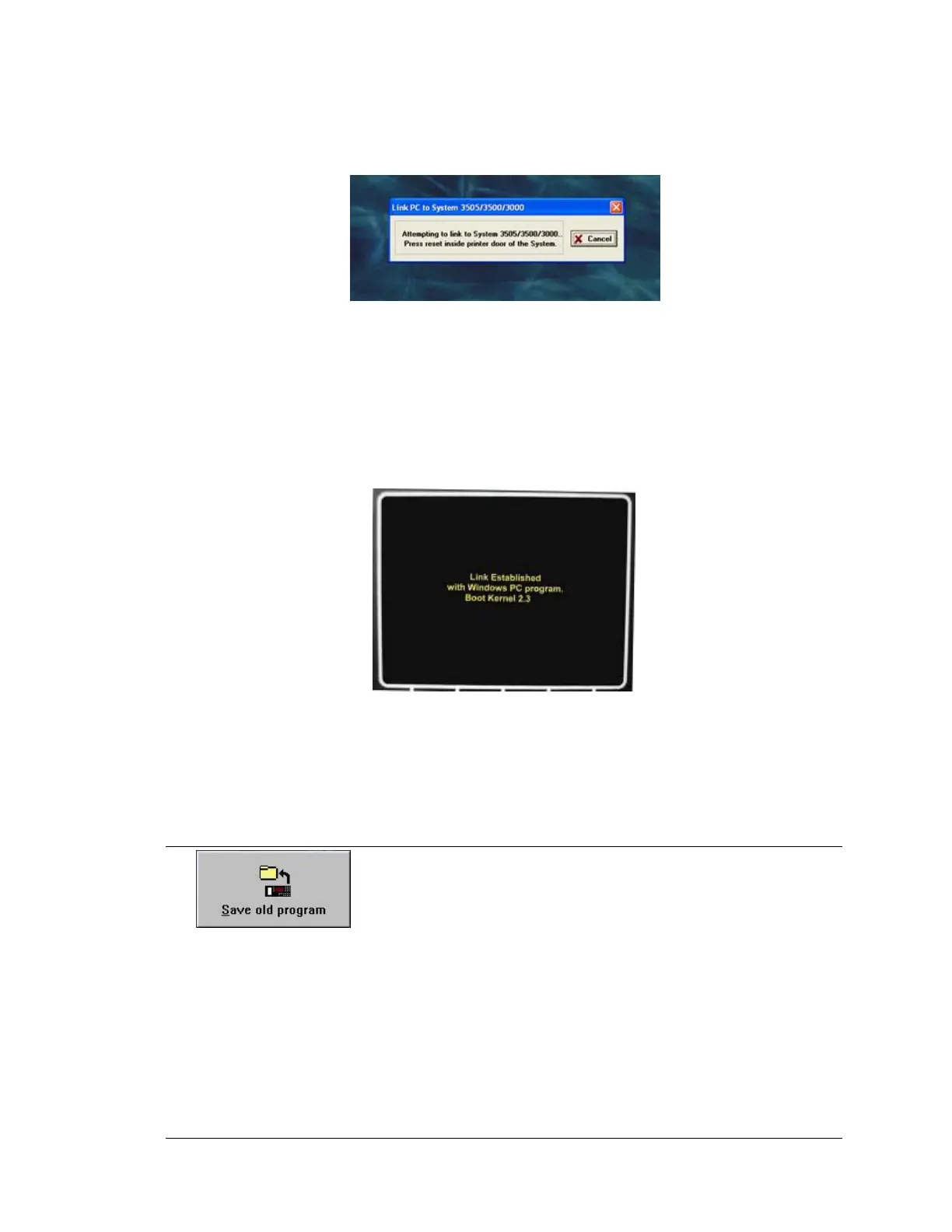

When the link is established, the following message will appear on the SYSTEM 3505
screen:
Once communications have been established with the SYSTEM 3505 unit, the large icons in
the main screen are no longer grayed out.
21.4 SAVE
This feature permits the user to save the current program before
uploading any new version.
Click either the large icon in the main window, or the small icon on the tool bar, or go to
‘FILE’ then ‘SAVE OLD ROM’ (Alt + S) .The data will be saved as a .BIN file. Any name
can be entered for the systems backup file.
To Next Page
