System 3505 Installation & Operation Manual
Digitize, Inc. 700248-0002 Rev. C 02/16
Specification Subject to Change Without Notice
7-13

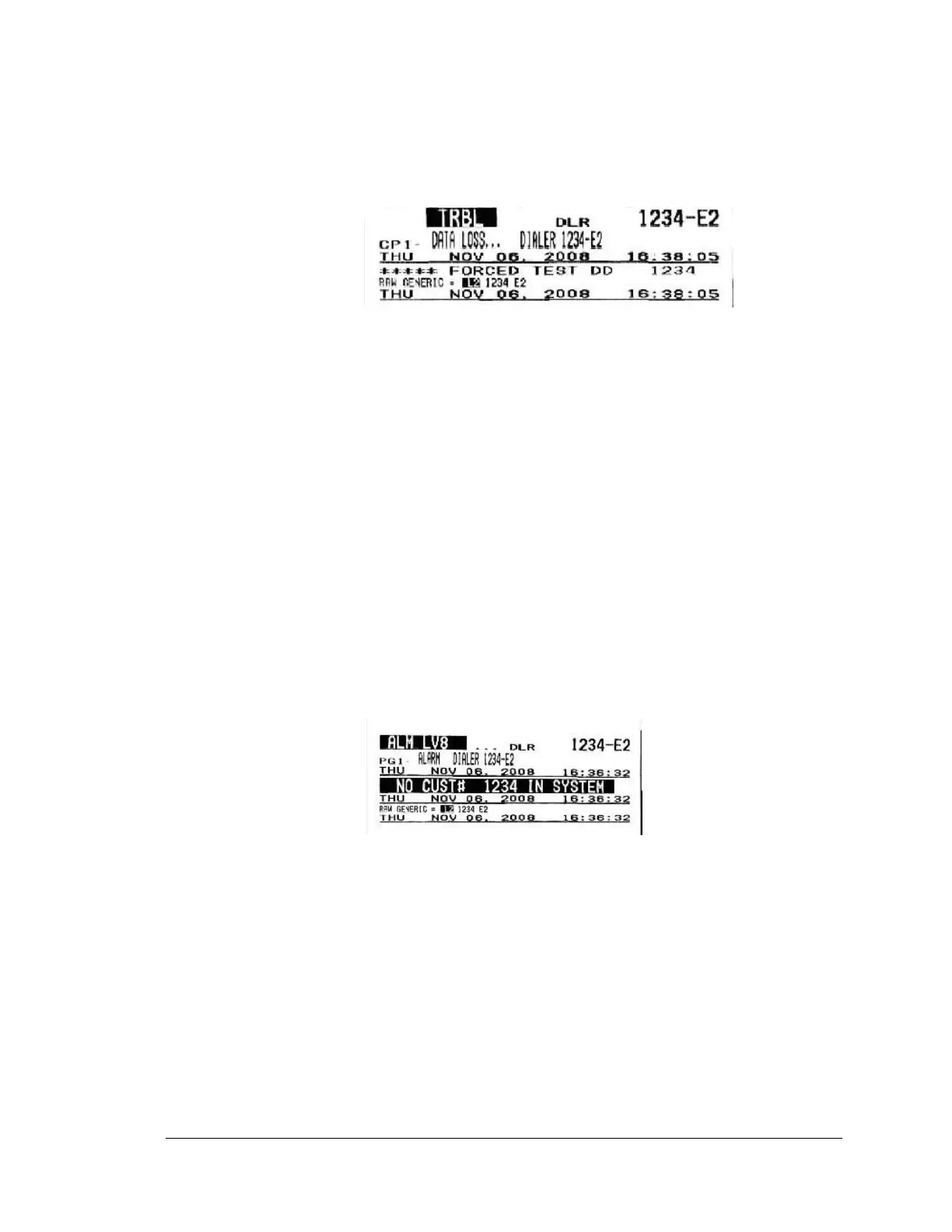

Example of Data Loss
After processing a data loss, this incoming signal will produce a Daily Test
message as well. .
Note on the printout that the “RAW GENERIC” message came in on phone line
#2, as subscriber 1234 zone E2. However, the dialer sent in zone E2 to indicate a
DATA LOSS, which indicates that the last time it tried to dial in, it was
unsuccessful. As the incoming zone was sent in lieu of a daily test, the SYSTEM
3505 also forced a daily test in addition to reporting in the data loss. For this
example, E2 was used as a data loss signal, however, the system may use other
codes to represent the Data loss signal. Not that the English zones always append
the actual zone that came in as part of the SYSTEM 3505 account number.
7.4.5
No Cust #
Failure to program the subscriber into the SYSTEM 3505 will result in the printout
as noted. The SYSTEM 3505 will use the incoming zone representation as the
zone for the SYSTEM 3505, thus processing Dialer 1234-E2 in this example.
While the condition reported in as an Alarm, and should be treated as such, it may
in fact be an Alarm, Trouble, restore or an English value.
Example of Failure to Add Customer to Config Table
7.4.6
ADD/CHANGE/DELETE CUST (Subscriber)
From the initial 16 SET selection menu, press selection #1 to enter the
CUSTOMER ADD/CHANGE/DELETE MENU. All Subscribers must be entered
into the SYSTEM 3505 including Dialer or Intellitize accounts.
