E 9

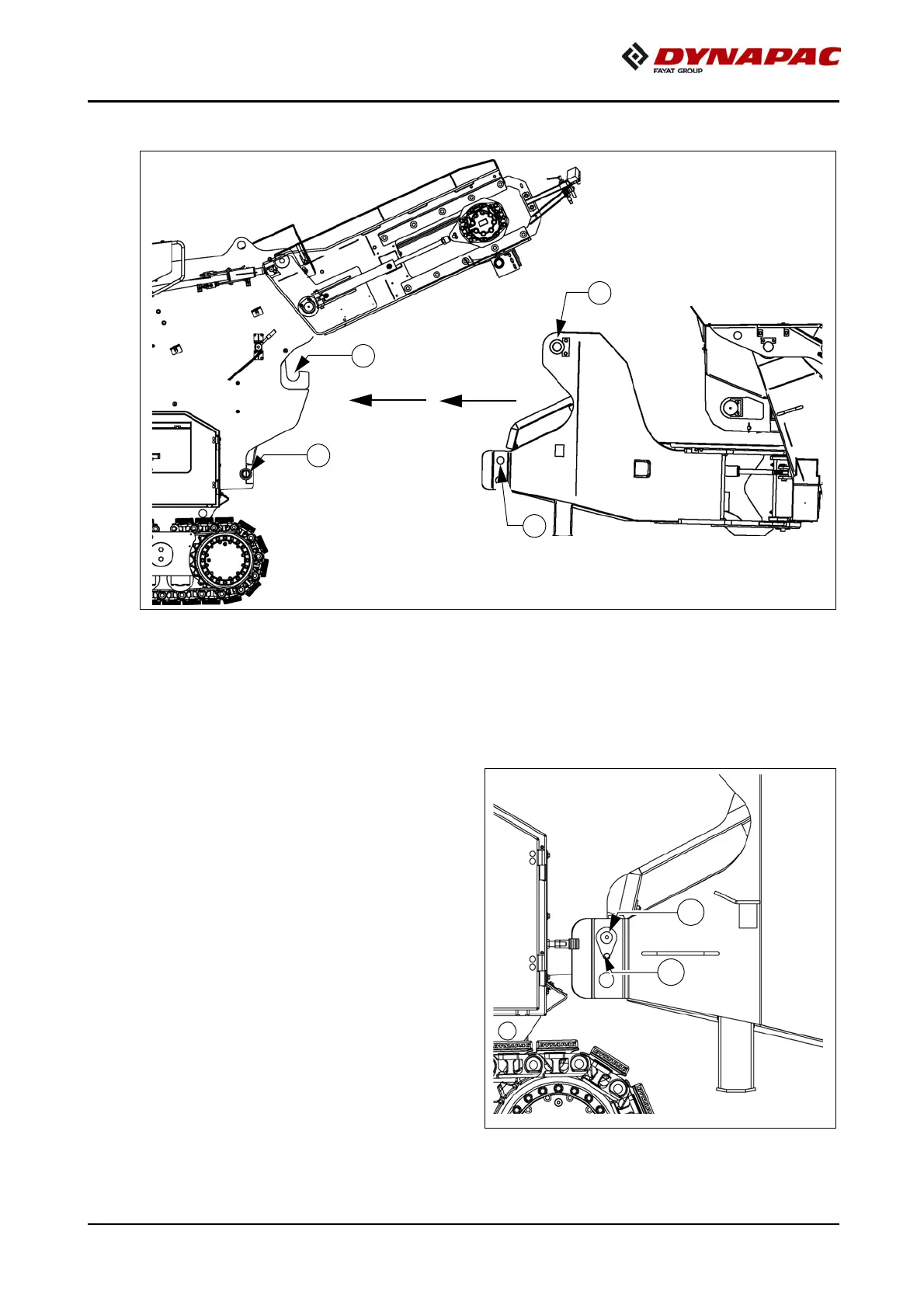

- Raise slewing belt.
- Guide the raised slewing belt slowly and on the correct height setting up to the
frame of the feeder.
- Insert the collar (8) in the opening (8a) on both sides and lower the slewing belt
slowly until the drilled hole (9) is in line with the bearing (9a).
- Insert the bolts (7) on both sides and
secure with the screw (10).
- Lower the lifting gear and take the
crane hook out of the lifting eyes.
