F 71 7

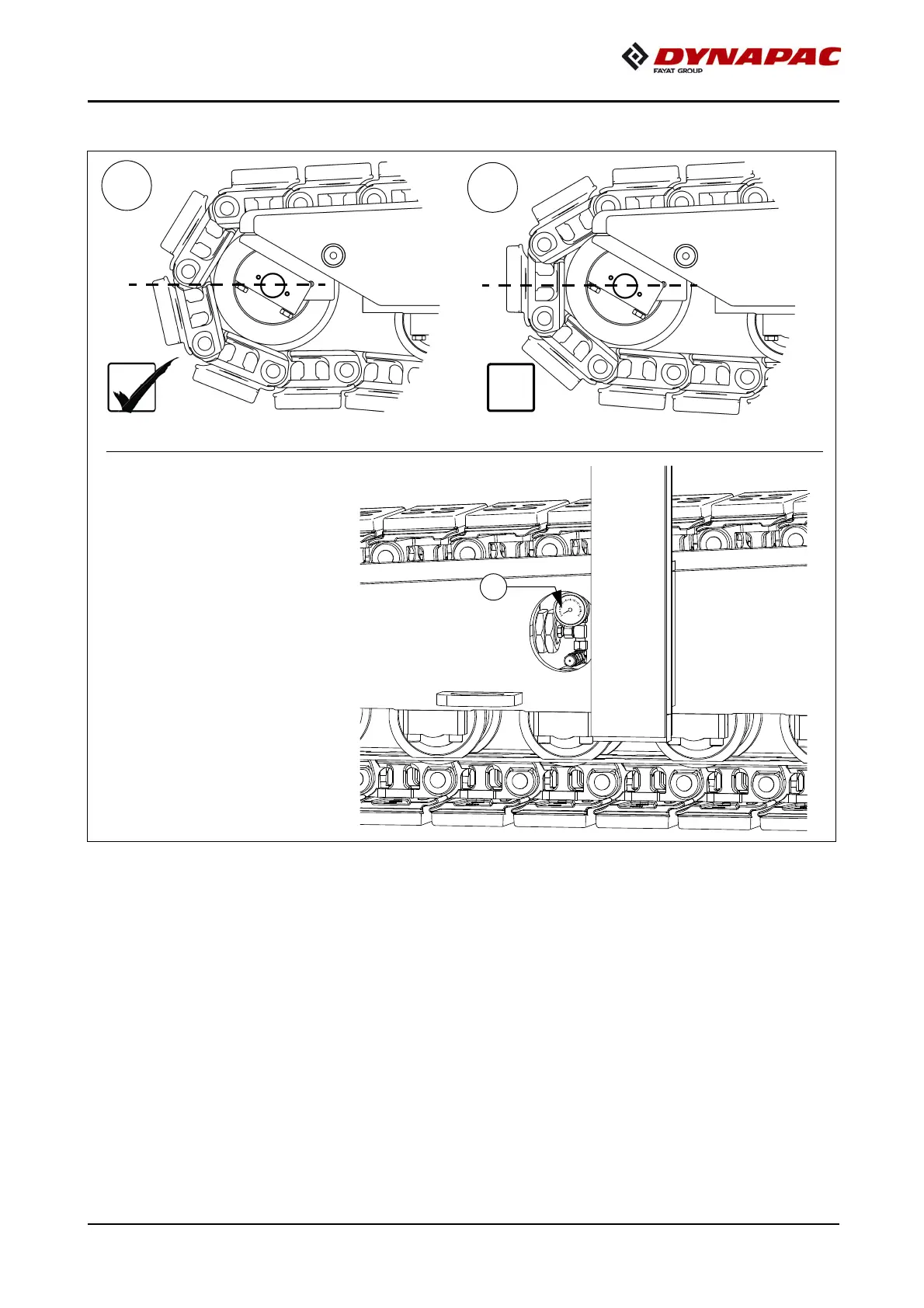

- Before checking/adjusting the chain tension, ensure that the position of the chain
to the idler wheel is as shown in diagram (A).
A
Correct if necessary by moving the vehicle a little.
- The correct setting has been adjusted when the pressure gauge (C) shows a value
between 65-85 bar.
A
B
C
