PFD Operation
4-36 SkyView HDX Pilot’s User Guide – Revision B
Once you have determined which ADAHRS is incorrect, press DISABLE under the unit with the
incorrect flight data. This disables the unit for the remainder of the flight.
If the unit that you disabled was the ALTERNATE / STANDBY unit, the only effect will be that
SkyView HDX will not perform cross-checking between the two units.
If the unit that you disabled is the PRIMARY / ACTIVE unit, the unit that was ALTERNATE /
STANDBY will now be ALTERNATE / ACTIVE and SkyView HDX will display the flight data from
that unit.

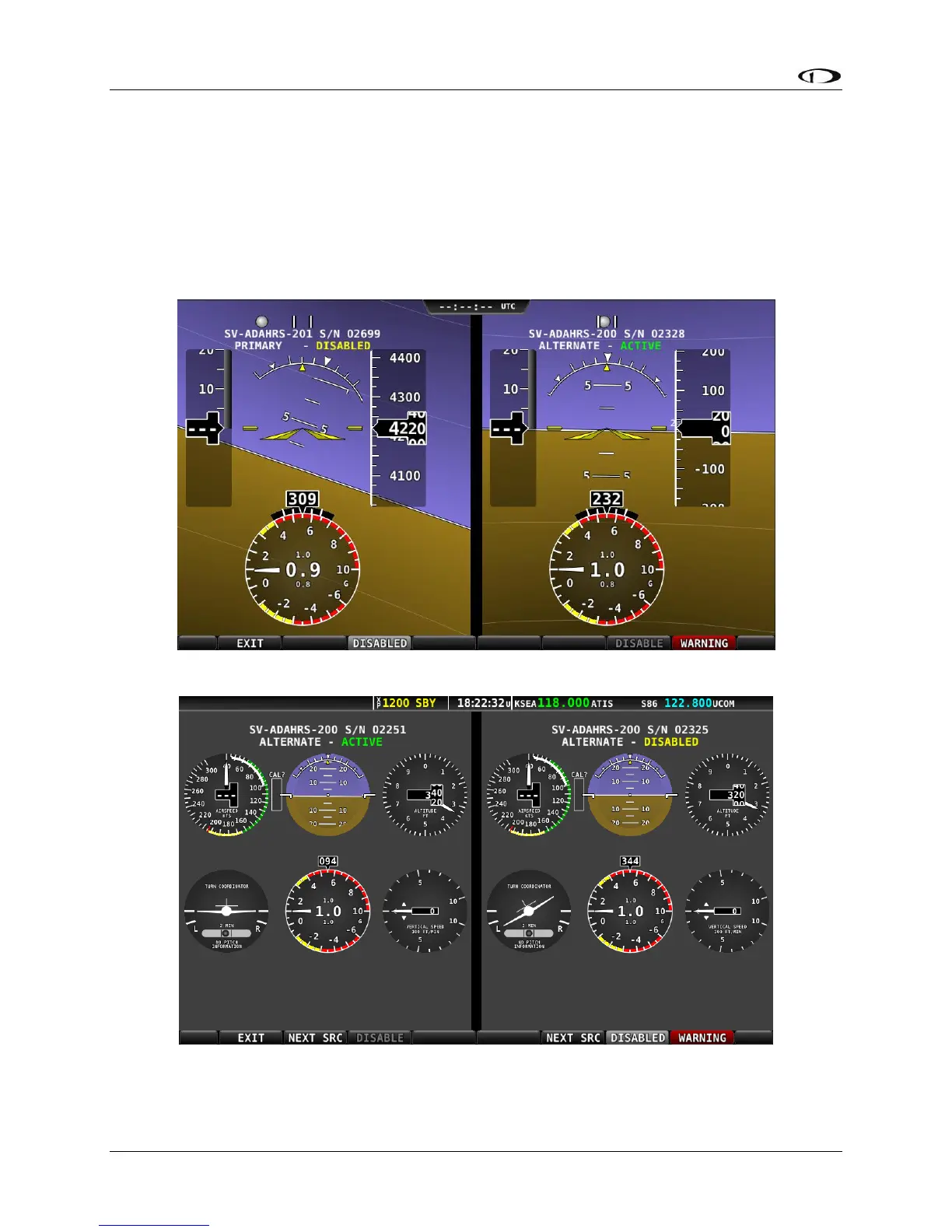

Figure 86 – ADAHRS Cross-Check Comparison (one ADAHRS disabled)
Figure 87 – ADAHRS Cross-Check Comparison – Six-pack Presentaion)
