6.3 Cleaning Inside the Scanner

349

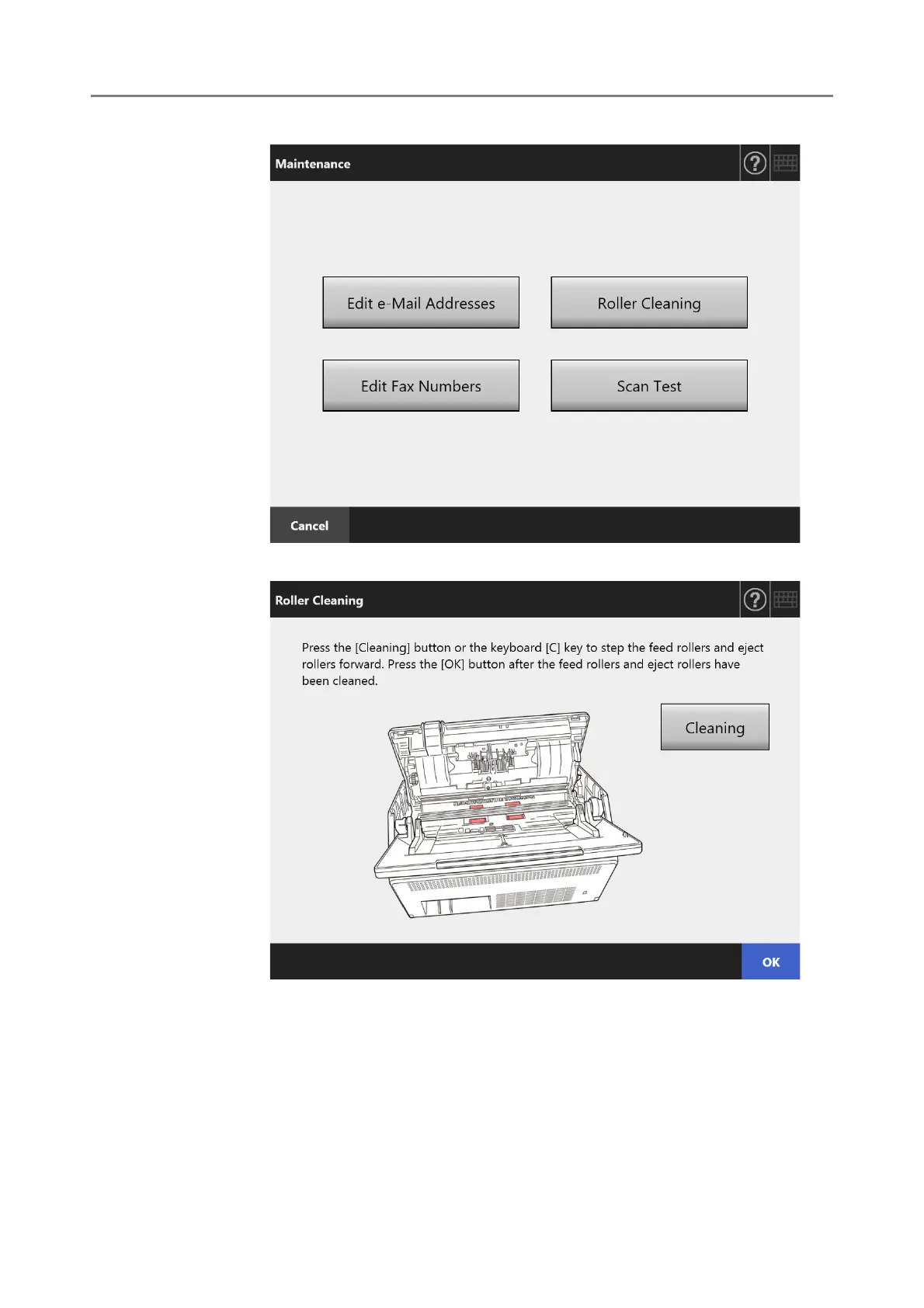

3 Press the [Roller Cleaning] button.

The [Roller Cleaning] window appears.

4 Open the LCD cover.

5 Lightly press a soft cloth slightly moistened with Cleaner F1 or the Cleaning

Wipe against the surface of the rollers.
