7.6 2.5-inch HDD/SSD configurations
7.6.1
Overview of configurations
7.6.1.1 Configuration with up to 16 HDD / SSD / PCIe SSD modules

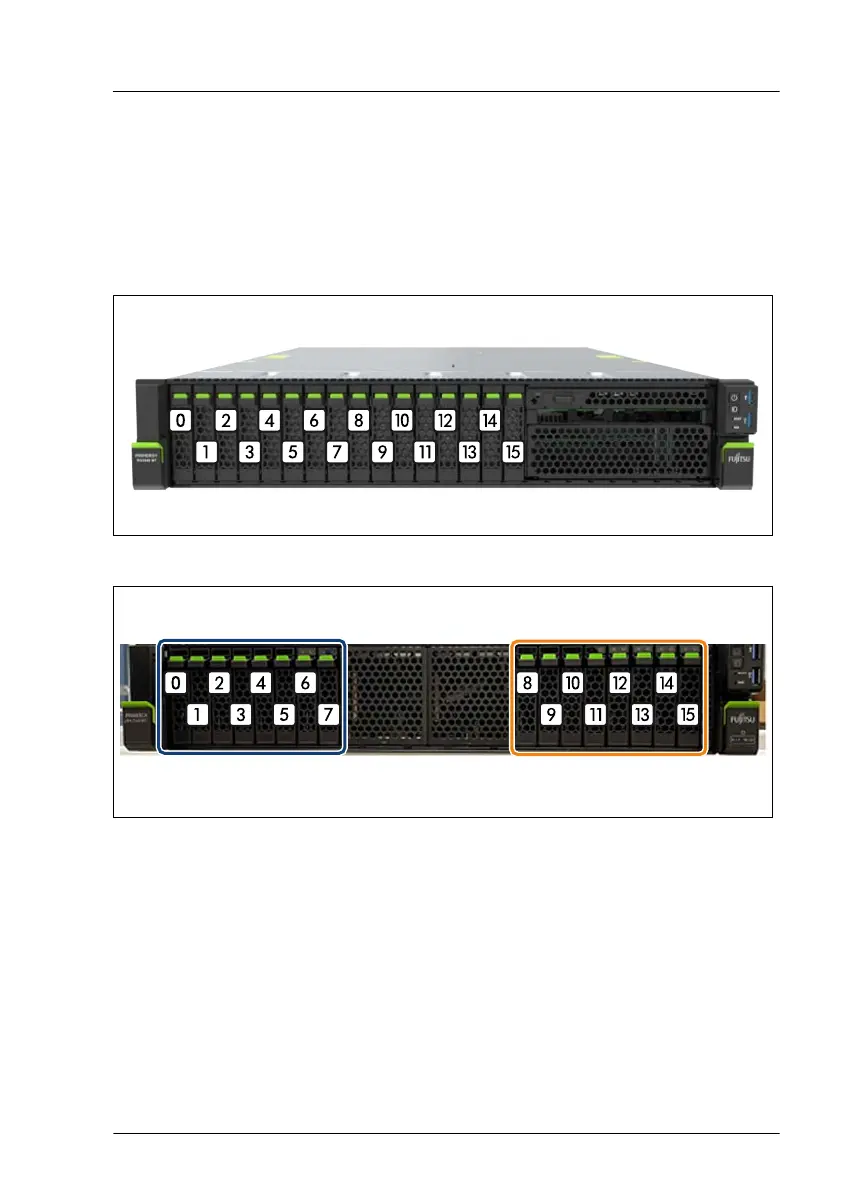

Figure 73: Configuration with up to 16 2.5-inch HDDs/SSDs
Figure 74: Configuration with up to eight 2.5-inch HDDs/SSDs and up to eight 2.5-inch PCIe
SSDs
Hard disk drive (HDD) / solid state disk (SSD)
RX2540 M7 Upgrade and Maintenance Manual 165
