Removing the SAS expander board

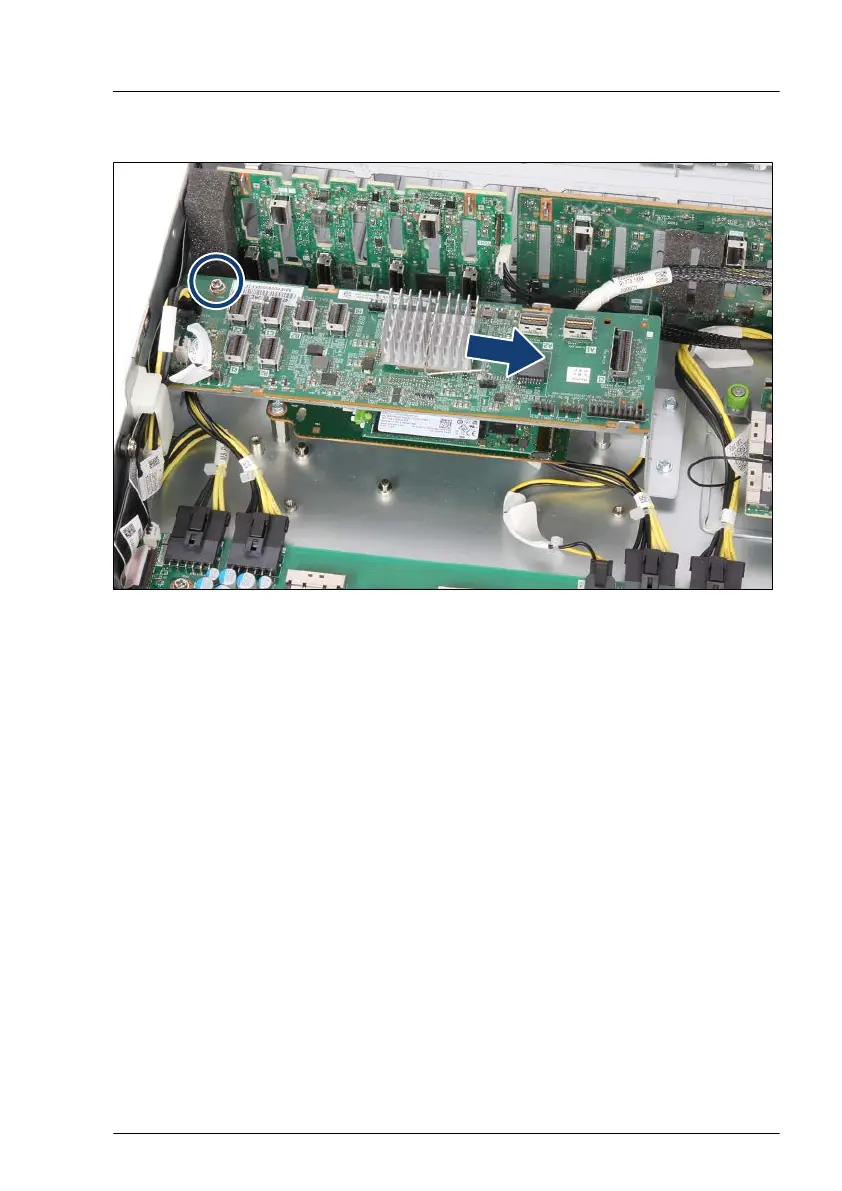

Figure 105: Removing the SAS expander board
▶
Loosen the screw (see circle).
▶
Push the SAS expander board in the direction of the arrow
.
▶
Remove the SAS expander board from the SAS expander board holder.
Concluding steps
▶
"Installing the fan cage" on page 77.
▶
"Reassembling" on page 59.
▶
"Connecting the power cord" on page 65.
▶
"Switching on the server" on page 71.
▶
If applicable, "Installing the front cover with lock" on page 71.
