4.6.2 Installing the top covers
Installing the top cover 2

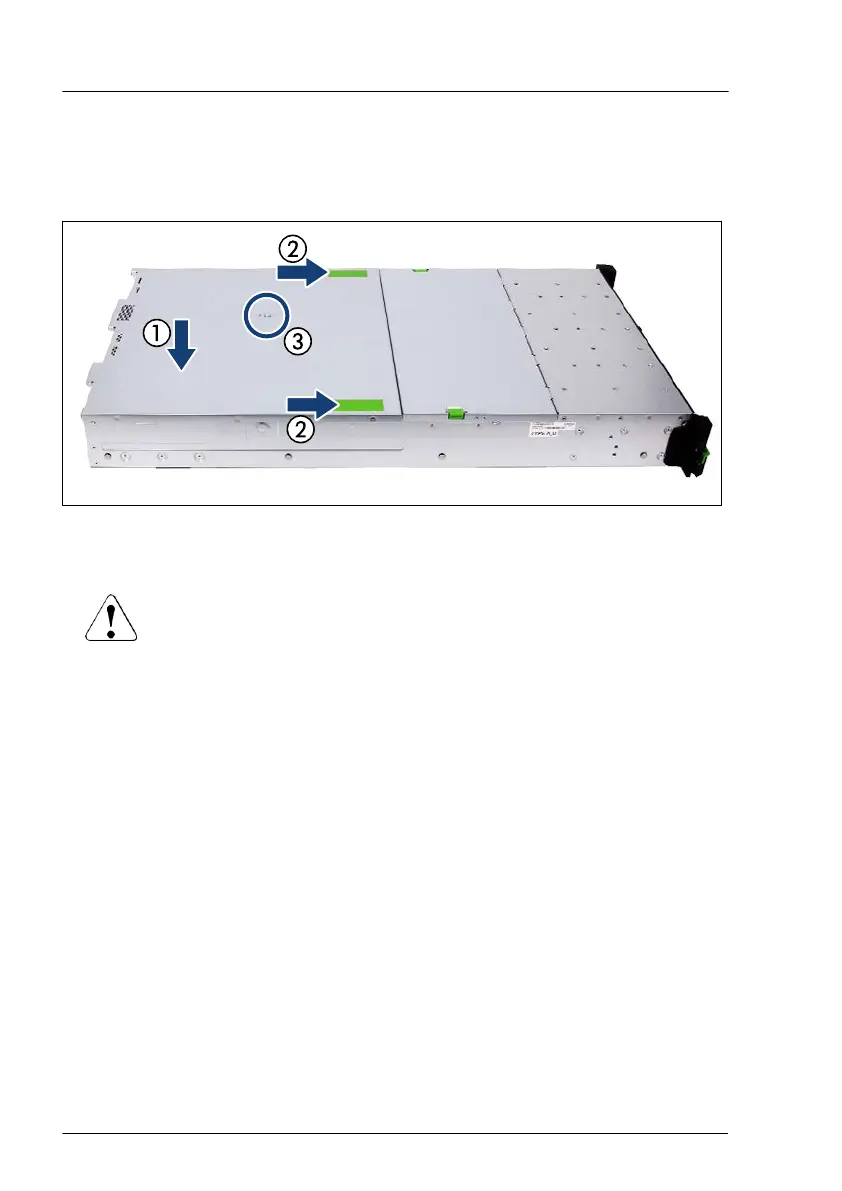

Figure 12: Installing the top cover 2
▶
Position the top cover 2 on the server (1). Notice the recesses.
CAUTION
▶
Take care that all cables are inside the chassis.
▶
Push the top cover 2 to the front side using the green touch points (2).
▶
Fasten the top cover 2 with the screw (3).
Basic hardware procedures
60 Upgrade and Maintenance Manual RX2540 M7
