4.13.2 Installing the crossbar

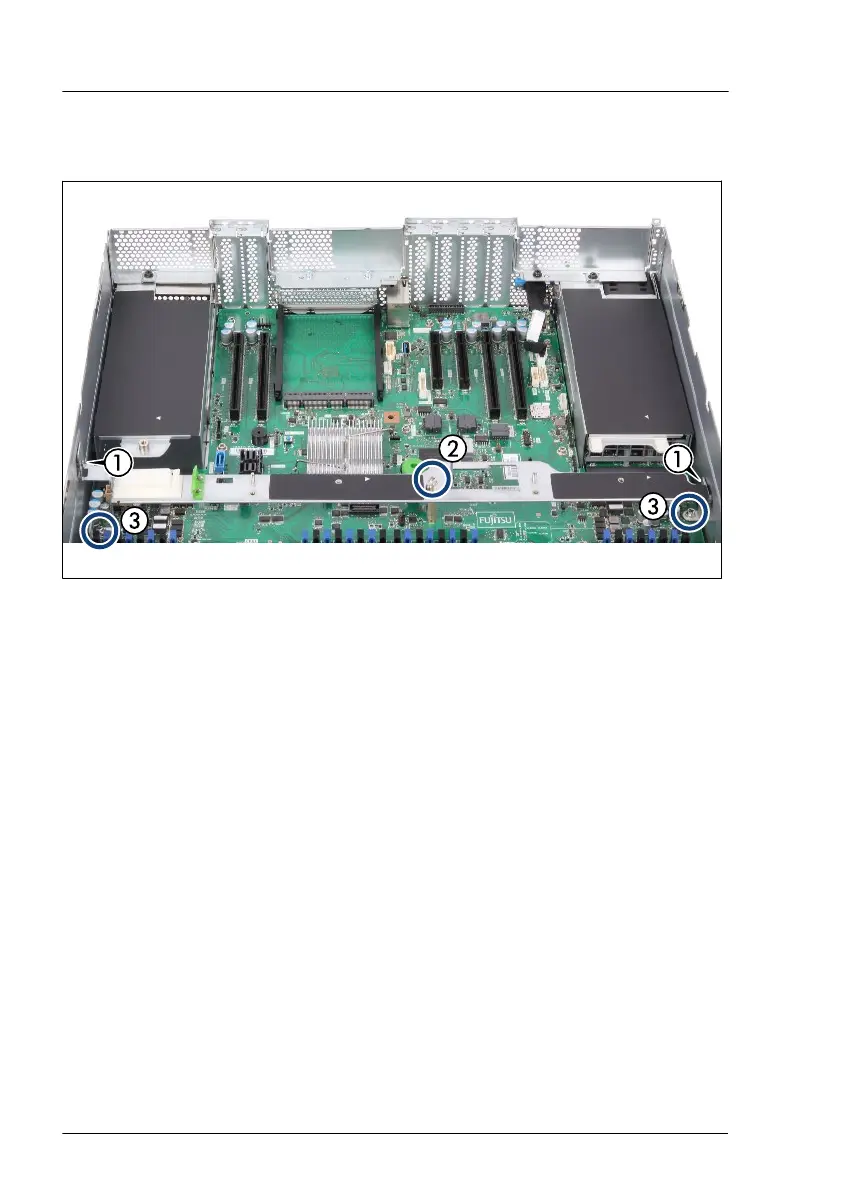

Figure 37: Installing the crossbar
▶
Place the crossbar on the two alignment pins (1) and on the standof
f (2).
▶
Fasten the screw in the middle (2).
▶
Fasten the two screws at the sides (3).
