18.1.2.2 Servers with liquid cooling

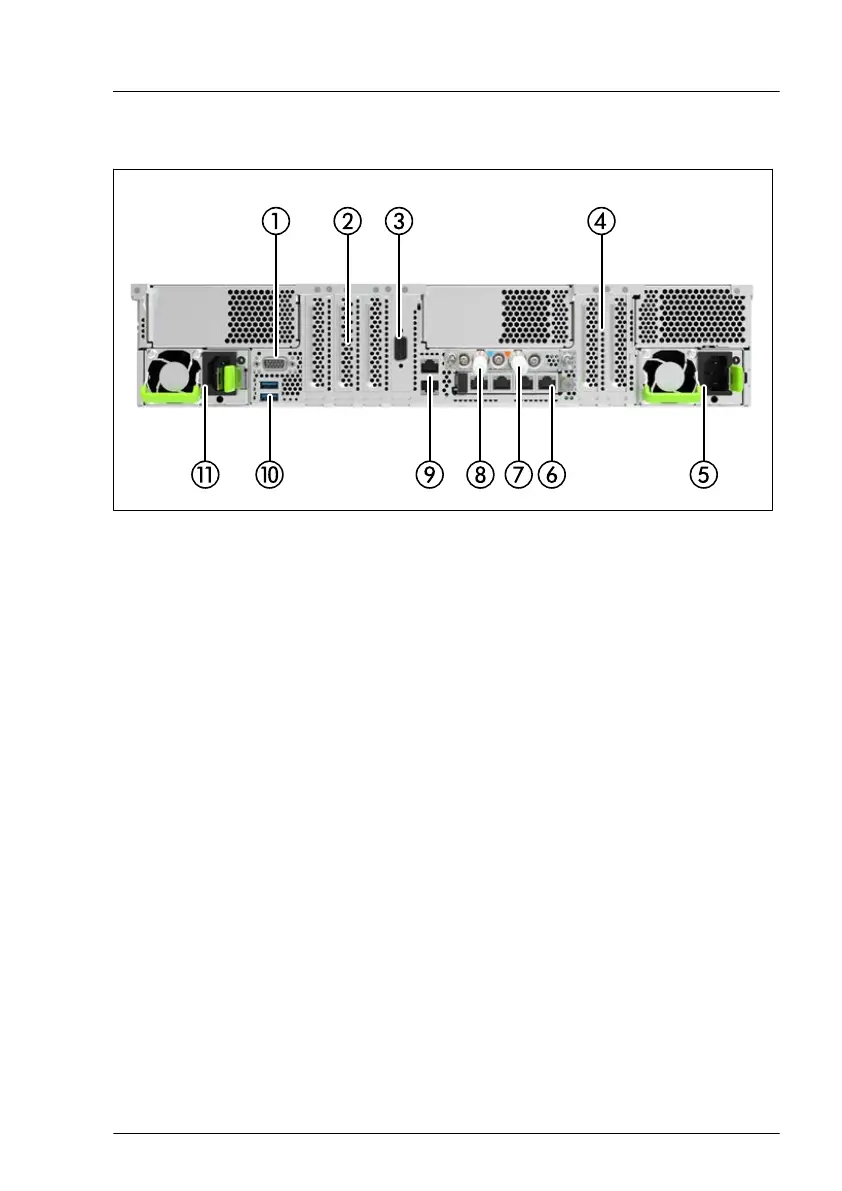

Figure 354: Server rear with liquid cooling
1 Rear VGA
2
PCIe slots 5-8
3 Serial interface (option) / slot cover
4 PCIe slots 1-2
5 PSU 2 (option) / dummy cover
6 OCP module (option) / dummy cover
7 Liquid cooling connector - liquid outlet
8 Liquid cooling connector - liquid inlet
9 Management LAN
10 USB 3.0 (2x)
11 PSU 1
Appendix A
RX2540 M7 Upgrade and Maintenance Manual 529
