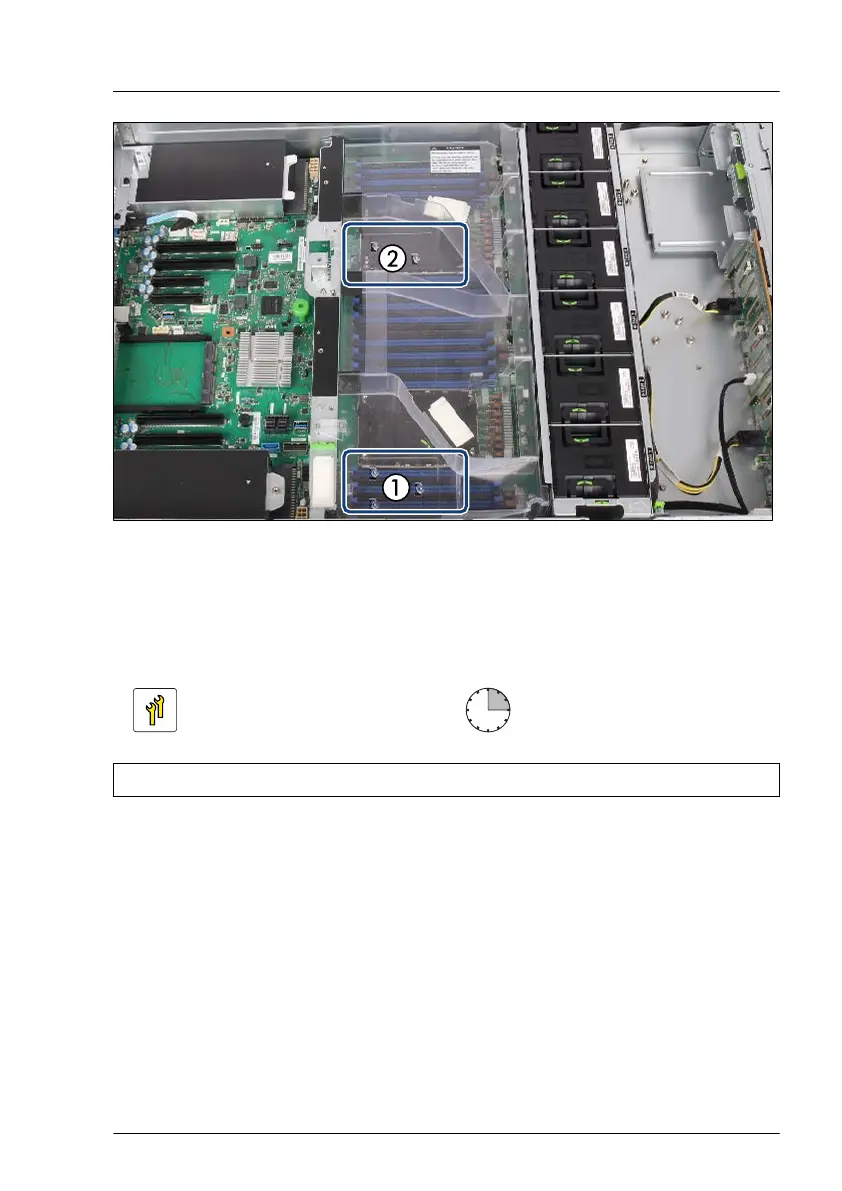

Figure 185: Positions of the FBUs - air duct
1 FBU 1 2 FBU 2
9.10.2 Installing an FBU
Upgrade and Repair Unit
(URU)
Hardware: 15 minutes
Tools: Phillips PH2 / (+) No. 2 screw driver (for cover 2)
Preliminary steps
▶
If applicable, "Removing the front cover with lock" on page
49.
▶
"Shutting down the server" on page 50.
▶
"Disconnecting the power cord" on page 50.
▶
"Getting access to the component" on page 55.
