Fujitsu PRIMERGY RX2540 M7

4RX2540 M7

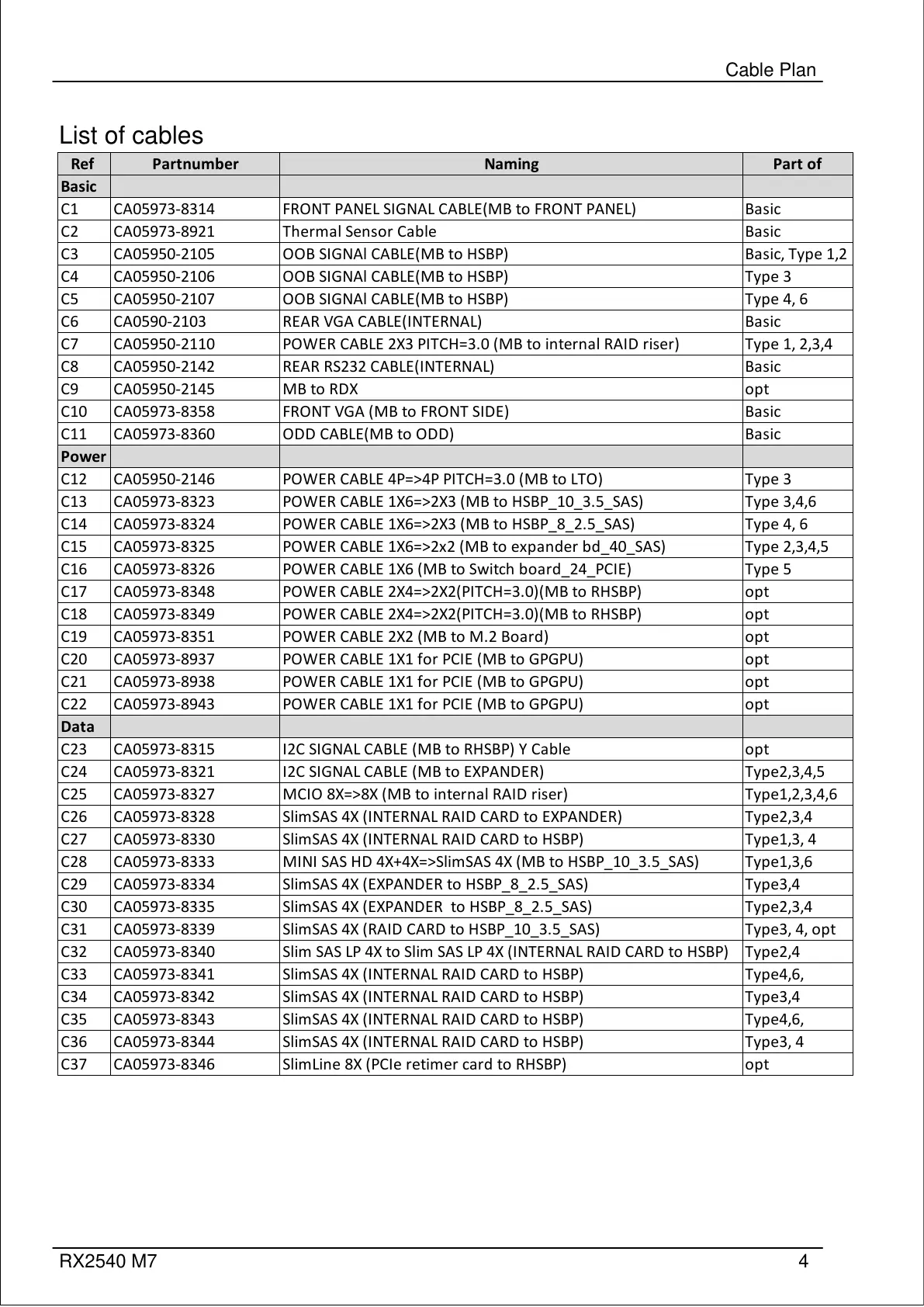

List of cables
Cable Plan
Ref Partnumber Naming Part of
Basic
C1 CA05973-8314 FRONT PANEL SIGNAL CABLE(MB to FRONT PANEL) Basic
C2 CA05973-8921 Thermal Sensor Cable Basic
C3 CA05950-2105 OOB SIGNAl CABLE(MB to HSBP) Basic, Type 1,2
C4 CA05950-2106 OOB SIGNAl CABLE(MB to HSBP) Type 3
C5 CA05950-2107 OOB SIGNAl CABLE(MB to HSBP) Type 4, 6
C6 CA0590-2103 REAR VGA CABLE(INTERNAL) Basic
C7 CA05950-2110 POWER CABLE 2X3 PITCH=3.0 (MB to internal RAID riser) Type 1, 2,3,4
C8 CA05950-2142 REAR RS232 CABLE(INTERNAL) Basic
C9 CA05950-2145 MB to RDX opt
C10 CA05973-8358 FRONT VGA (MB to FRONT SIDE) Basic
C11 CA05973-8360 ODD CABLE(MB to ODD) Basic
Power
C12 CA05950-2146 POWER CABLE 4P=>4P PITCH=3.0 (MB to LTO) Type 3
C13 CA05973-8323 POWER CABLE 1X6=>2X3 (MB to HSBP_10_3.5_SAS) Type 3,4,6
C14 CA05973-8324 POWER CABLE 1X6=>2X3 (MB to HSBP_8_2.5_SAS) Type 4, 6
C15 CA05973-8325 POWER CABLE 1X6=>2x2 (MB to expander bd_40_SAS) Type 2,3,4,5
C16 CA05973-8326 POWER CABLE 1X6 (MB to Switch board_24_PCIE) Type 5
C17 CA05973-8348 POWER CABLE 2X4=>2X2(PITCH=3.0)(MB to RHSBP) opt
C18 CA05973-8349 POWER CABLE 2X4=>2X2(PITCH=3.0)(MB to RHSBP) opt
C19 CA05973-8351 POWER CABLE 2X2 (MB to M.2 Board) opt
C20 CA05973-8937 POWER CABLE 1X1 for PCIE (MB to GPGPU) opt
C21 CA05973-8938 POWER CABLE 1X1 for PCIE (MB to GPGPU) opt
C22 CA05973-8943 POWER CABLE 1X1 for PCIE (MB to GPGPU) opt
Data
C23 CA05973-8315 I2C SIGNAL CABLE (MB to RHSBP) Y Cable opt
C24 CA05973-8321 I2C SIGNAL CABLE (MB to EXPANDER) Type2,3,4,5
C25 CA05973-8327 MCIO 8X=>8X (MB to internal RAID riser) Type1,2,3,4,6
C26 CA05973-8328 SlimSAS 4X (INTERNAL RAID CARD to EXPANDER) Type2,3,4
C27 CA05973-8330 SlimSAS 4X (INTERNAL RAID CARD to HSBP) Type1,3, 4
C28 CA05973-8333 MINI SAS HD 4X+4X=>SlimSAS 4X (MB to HSBP_10_3.5_SAS) Type1,3,6
C29 CA05973-8334 SlimSAS 4X (EXPANDER to HSBP_8_2.5_SAS) Type3,4
C30 CA05973-8335 SlimSAS 4X (EXPANDER to HSBP_8_2.5_SAS) Type2,3,4
C31 CA05973-8339 SlimSAS 4X (RAID CARD to HSBP_10_3.5_SAS) Type3, 4, opt
C32 CA05973-8340 Slim SAS LP 4X to Slim SAS LP 4X (INTERNAL RAID CARD to HSBP) Type2,4
C33 CA05973-8341 SlimSAS 4X (INTERNAL RAID CARD to HSBP) Type4,6,
C34 CA05973-8342 SlimSAS 4X (INTERNAL RAID CARD to HSBP) Type3,4
C35 CA05973-8343 SlimSAS 4X (INTERNAL RAID CARD to HSBP) Type4,6,
C36 CA05973-8344 SlimSAS 4X (INTERNAL RAID CARD to HSBP) Type3, 4
C37 CA05973-8346 SlimLine 8X (PCIe retimer card to RHSBP) opt
