18.1
Mechanical overview
18.1.1 Server front
18.1.1.1 3.5-inch HDD configuration

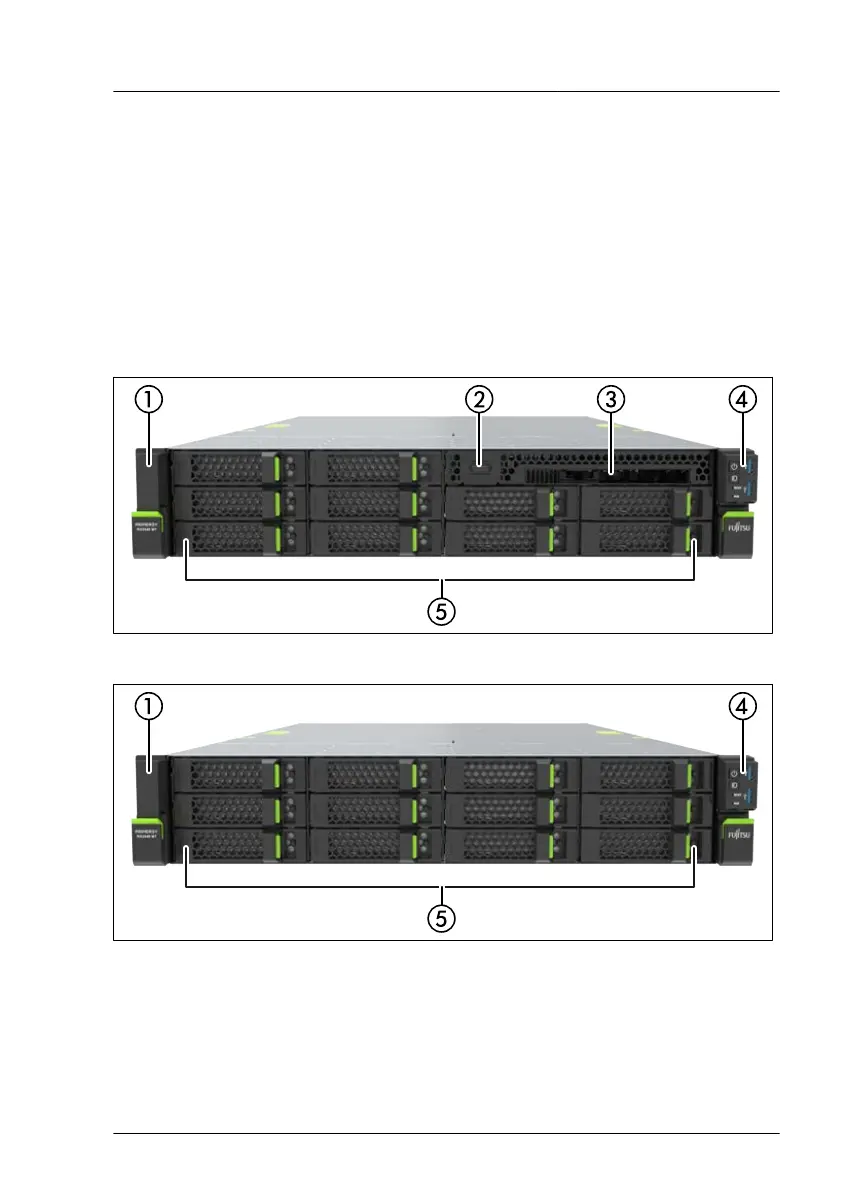

Figure 347: Front side 10x 3.5-inch HDDs/SSDs
Figure 348: Front side 12x 3.5-inch HDDs/SSDs
1 Thermal sensor
2
Front VGA (option)
3 ODD (option) / dummy cover
4 Common Operation Panel
5 HDDs / dummy modules
