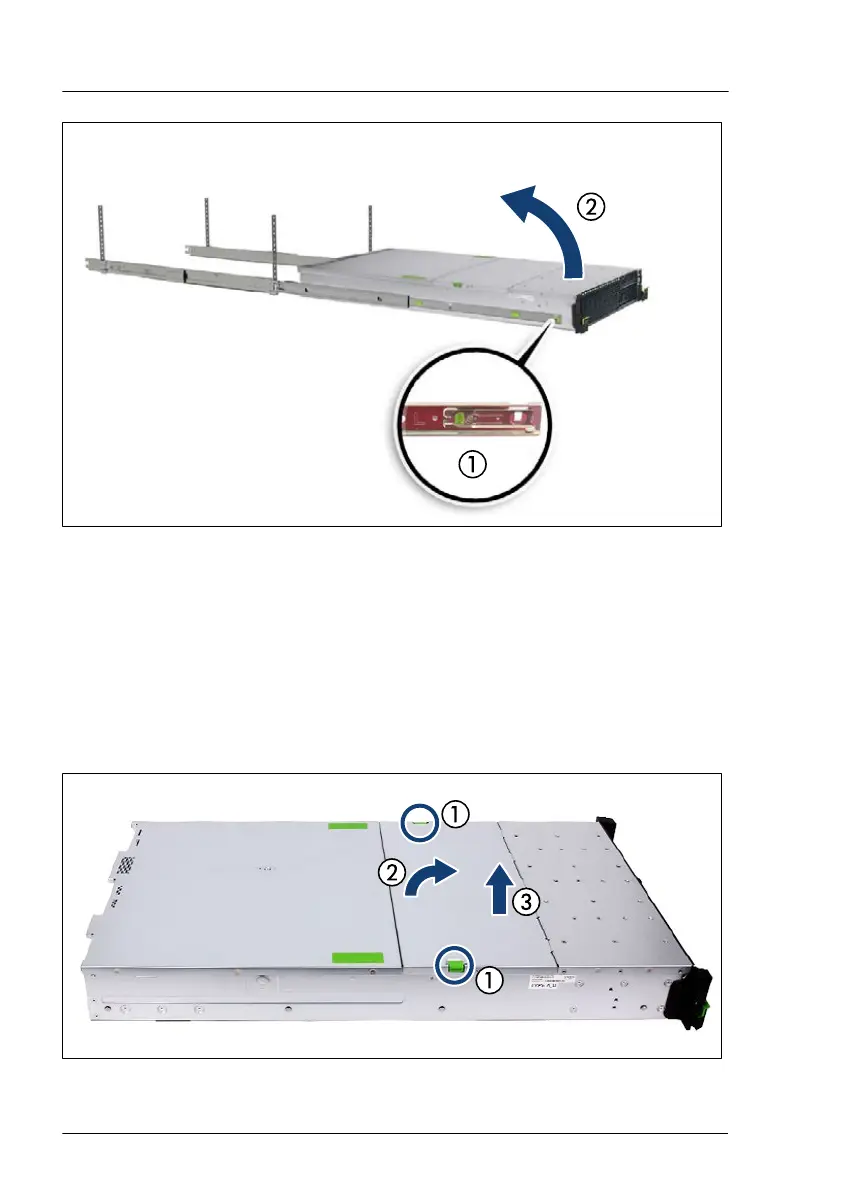

Figure 9: Removing the server from the rack
▶
Press on the locking bars on both rack rails (1).
▶
Lift the server out of the rack rails (2) and place it on an even surface.
4.5.4
Removing the top covers
Removing the top cover 1
Figure 10: Removing the top cover 1
Basic hardware procedures
58 Upgrade and Maintenance Manual RX2540 M7
