Fujitsu PRIMERGY RX2540 M7

2RX2540 M7

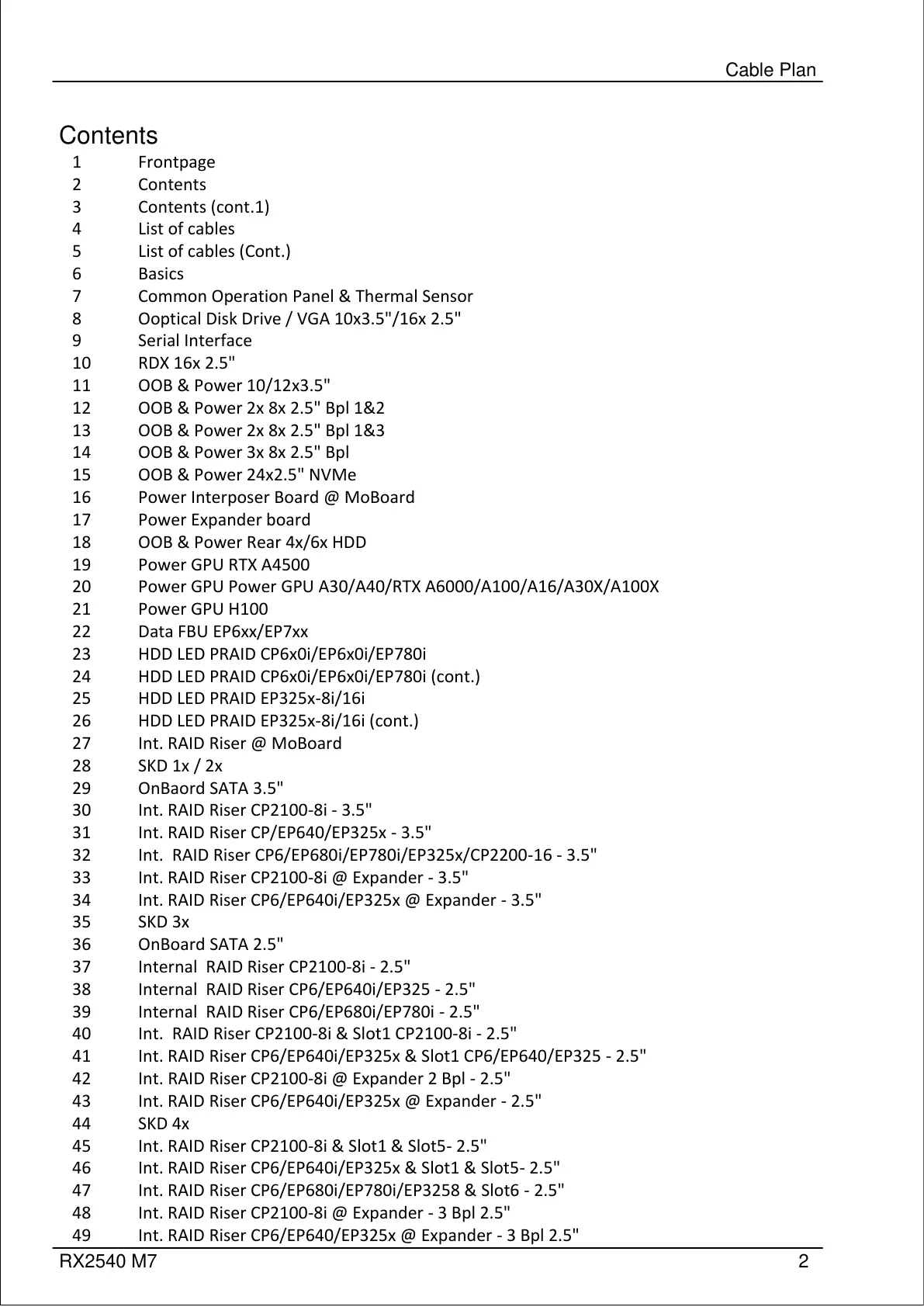

Contents
Cable Plan
1 Frontpage
2 Contents
3 Contents (cont.1)
4 List of cables
5 List of cables (Cont.)
6 Basics
7 Common Operation Panel & Thermal Sensor
8 Ooptical Disk Drive / VGA 10x3.5"/16x 2.5"
9 Serial Interface
10 RDX 16x 2.5"
11 OOB & Power 10/12x3.5"
12 OOB & Power 2x 8x 2.5" Bpl 1&2
13 OOB & Power 2x 8x 2.5" Bpl 1&3
14 OOB & Power 3x 8x 2.5" Bpl
15 OOB & Power 24x2.5" NVMe
16 Power Interposer Board @ MoBoard
17 Power Expander board
18 OOB & Power Rear 4x/6x HDD
19 Power GPU RTX A4500
20 Power GPU Power GPU A30/A40/RTX A6000/A100/A16/A30X/A100X
21 Power GPU H100
22 Data FBU EP6xx/EP7xx
23 HDD LED PRAID CP6x0i/EP6x0i/EP780i
24 HDD LED PRAID CP6x0i/EP6x0i/EP780i (cont.)
25 HDD LED PRAID EP325x-8i/16i
26 HDD LED PRAID EP325x-8i/16i (cont.)
27 Int. RAID Riser @ MoBoard
28 SKD 1x / 2x
29 OnBaord SATA 3.5"
30 Int. RAID Riser CP2100-8i - 3.5"
31 Int. RAID Riser CP/EP640/EP325x - 3.5"
32 Int. RAID Riser CP6/EP680i/EP780i/EP325x/CP2200-16 - 3.5"
33 Int. RAID Riser CP2100-8i @ Expander - 3.5"
34 Int. RAID Riser CP6/EP640i/EP325x @ Expander - 3.5"
35 SKD 3x
36 OnBoard SATA 2.5"
37 Internal RAID Riser CP2100-8i - 2.5"
38 Internal RAID Riser CP6/EP640i/EP325 - 2.5"
39 Internal RAID Riser CP6/EP680i/EP780i - 2.5"
40 Int. RAID Riser CP2100-8i & Slot1 CP2100-8i - 2.5"
41 Int. RAID Riser CP6/EP640i/EP325x & Slot1 CP6/EP640/EP325 - 2.5"
42 Int. RAID Riser CP2100-8i @ Expander 2 Bpl - 2.5"
43 Int. RAID Riser CP6/EP640i/EP325x @ Expander - 2.5"
44 SKD 4x
45 Int. RAID Riser CP2100-8i & Slot1 & Slot5- 2.5"
46 Int. RAID Riser CP6/EP640i/EP325x & Slot1 & Slot5- 2.5"
47 Int. RAID Riser CP6/EP680i/EP780i/EP3258 & Slot6 - 2.5"
48 Int. RAID Riser CP2100-8i @ Expander - 3 Bpl 2.5"
49 Int. RAID Riser CP6/EP640/EP325x @ Expander - 3 Bpl 2.5"
