Fujitsu PRIMERGY RX2540 M7 User Manual

Installing the OCP dummy cover

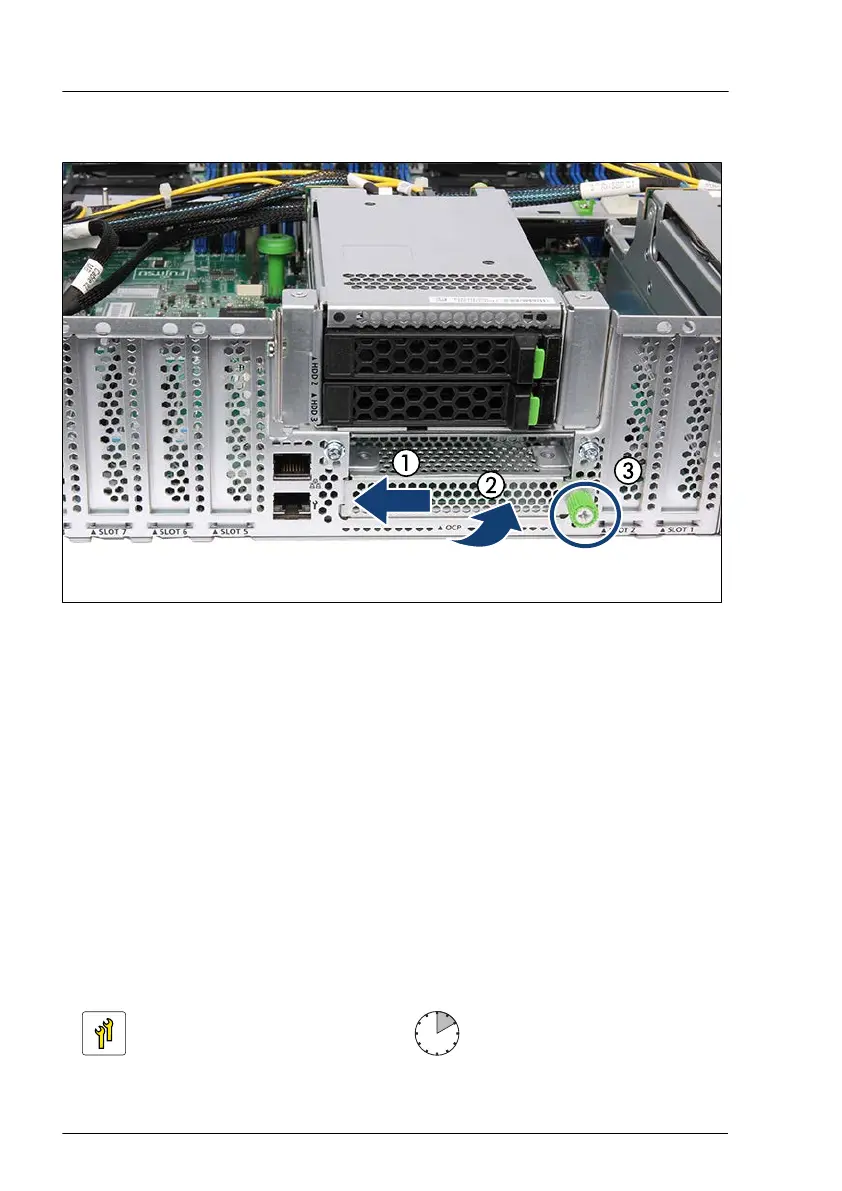

Figure 146: Installing the OCP dummy cover
▶
Insert the OCP dummy cover at a slight angle (1). Notice the position of the
hook and the reccess in the chassis (A).
▶
Push the OCP dummy cover in place (2).
▶
Fasten the OCP dummy cover with the knurled screw (3).
Concluding steps
▶
"Connecting the power cord" on page
65.
▶
"Switching on the server" on page 71.
9.5.4 Replacing the OCP module
Upgrade and Repair Unit
(URU)
Hardware: 10 minutes
Expansion cards and backup units
266 Upgrade and Maintenance Manual RX2540 M7

Fujitsu PRIMERGY RX2540 M7 Specifications

General

Form Factor	2U rack server
Processor	Intel Xeon Scalable Processors
Storage	Up to 24 x 2.5-inch drives or 12 x 3.5-inch drives
RAID	Integrated RAID controller with support for RAID 0/1/5/6/10/50/60
Network	optional 10/25GbE
Power Supply	Redundant power supplies; 800W, 1300W, or 1600W
Expansion Slots	Up to 8 x PCIe slots
Operating System Support	Windows Server, Red Hat, SUSE, VMware
