Fujitsu PRIMERGY RX2540 M7

18.1.1.2 2.5-inch HDD/SSD configuration

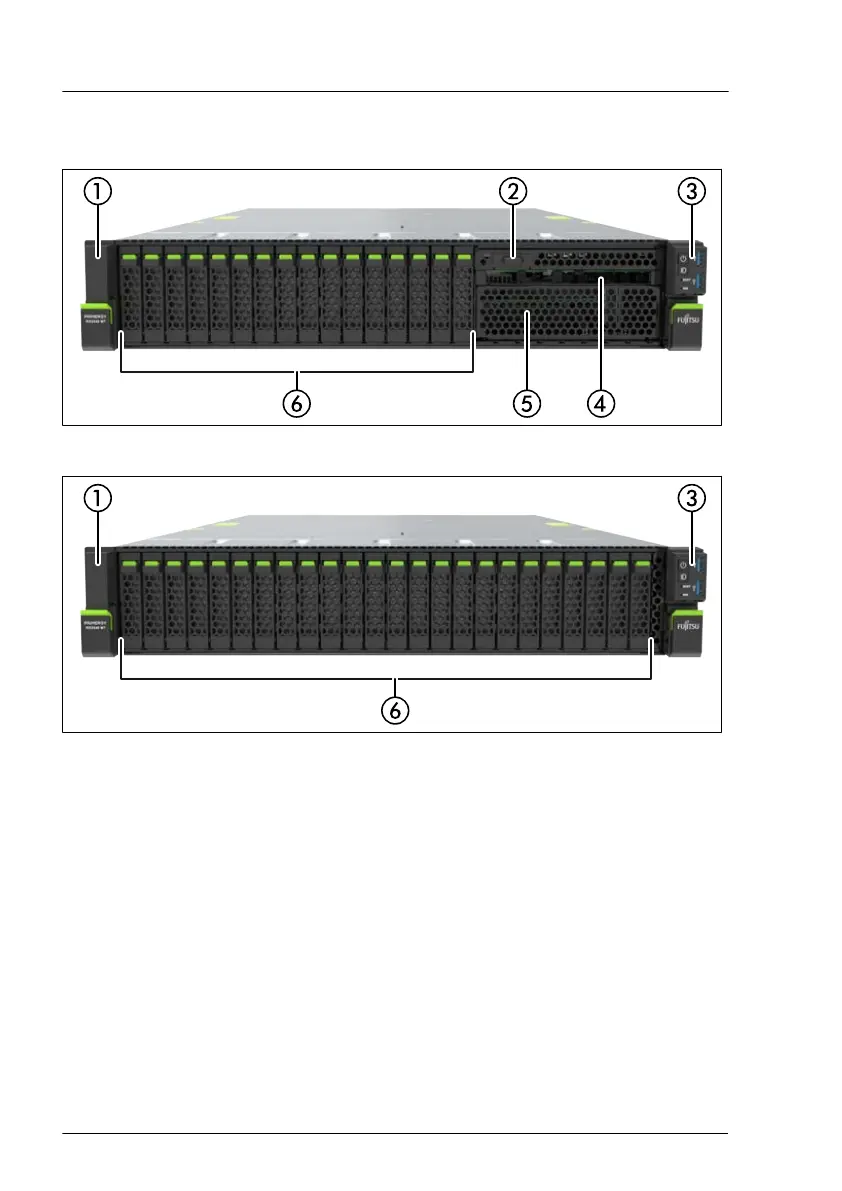

Figure 349: Front side 16x 2.5-inch HDDs / SSDs / PCIe SSDs
Figure 350: Front side 24x 2.5-inch HDDs / SSDs / PCIe SSDs
1 Thermal sensor
2
Front VGA (option)
3 Common Operation Panel
4 ODD (option) / dummy cover
5 LTO drive (option) / RDX drive
(option) / dummy cover
6 HDDs / SSDs / PCIe SSDs / dummy
modules
Appendix A
526 Upgrade and Maintenance Manual RX2540 M7
